LT3960

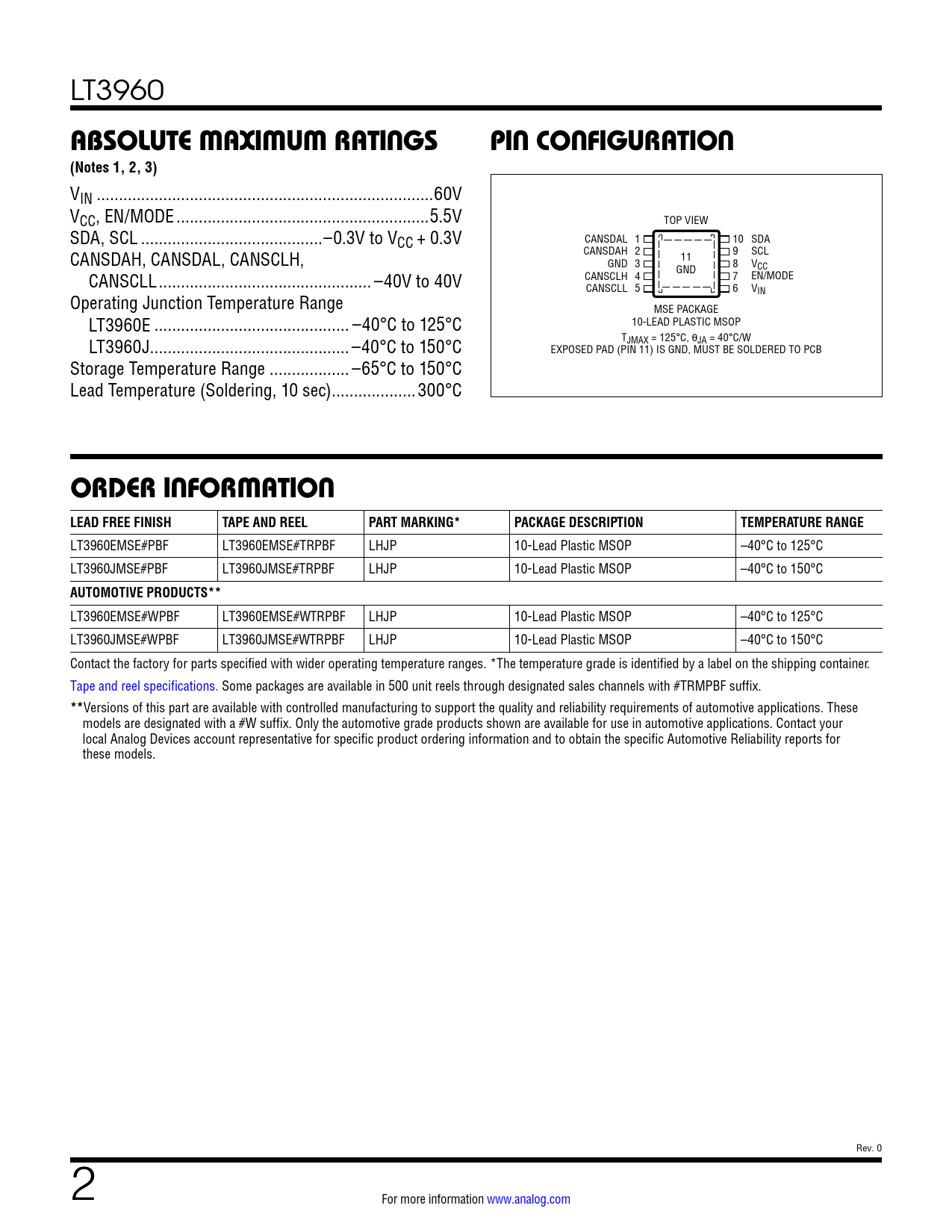

ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1, 2, 3)
VIN ..60V VCC, EN/MODE ...5.5V TOP VIEW SDA, SCL ...–0.3V to VCC + 0.3V CANSDAL 1 10 SDA CANSDAH, CANSDAL, CANSCLH, CANSDAH 2 9 SCL GND 3 11 8 VCC GND CANSCLL .. –40V to 40V CANSCLH 4 7 EN/MODE CANSCLL 5 6 V Operating Junction Temperature Range IN MSE PACKAGE LT3960E .. –40°C to 125°C 10-LEAD PLASTIC MSOP LT3960J... –40°C to 150°C TJMAX = 125°C, θJA = 40°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3960EMSE#PBF LT3960EMSE#TRPBF LHJP 10-Lead Plastic MSOP –40°C to 125°C LT3960JMSE#PBF LT3960JMSE#TRPBF LHJP 10-Lead Plastic MSOP –40°C to 150°C
AUTOMOTIVE PRODUCTS**
LT3960EMSE#WPBF LT3960EMSE#WTRPBF LHJP 10-Lead Plastic MSOP –40°C to 125°C LT3960JMSE#WPBF LT3960JMSE#WTRPBF LHJP 10-Lead Plastic MSOP –40°C to 150°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Switching Characteristics Typical Performance Characteristics Pin Functions Block Diagram Test Circuits Timing Diagrams Operation Applications Information Typical Applications Typical Application Related Parts
