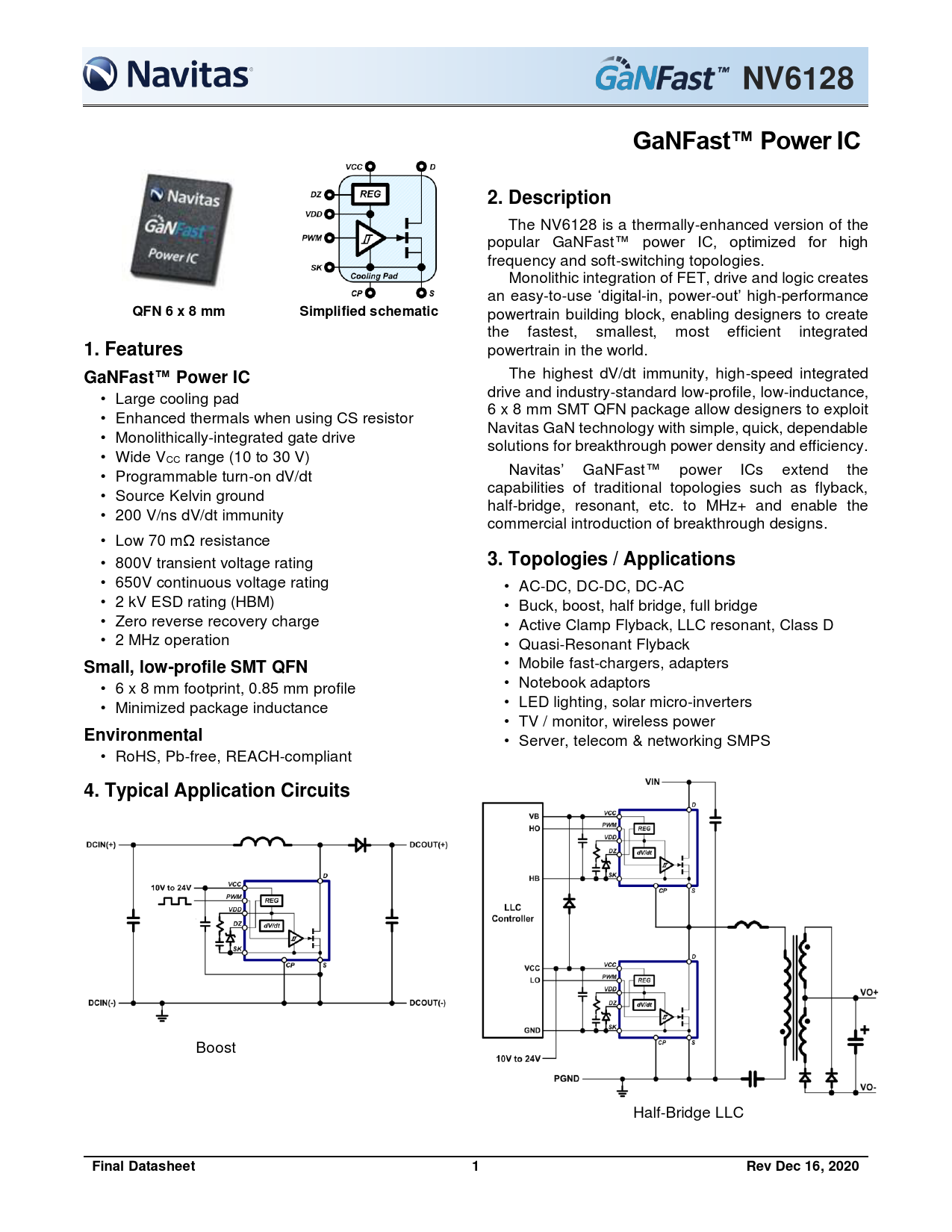

NV6128. GaNFast™ Power IC. 2. Description. QFN 6 x 8 mm. Simplified schematic. 1. Features. 3. Topologies / Applications

Datasheet NV6128 Navitas Semiconductor

Línea de modelo para esta hoja de datos

Versión de texto del documento

NV6128 8 GaNFast™ Power IC 2. Description
The NV6128 is a thermally-enhanced version of the popular GaNFast™ power IC, optimized for high frequency and soft-switching topologies. Monolithic integration of FET, drive and logic creates an easy-to-use ‘digital-in, power-out’ high-performance
QFN 6 x 8 mm Simplified schematic
powertrain building block, enabling designers to create the fastest, smallest, most efficient integrated
1. Features
powertrain in the world.
GaNFast™ Power IC
The highest dV/dt immunity, high-speed integrated • drive and industry-standard low-profile, low-inductance, Large cooling pad • 6 x 8 mm SMT QFN package allow designers to exploit Enhanced thermals when using CS resistor • Navitas GaN technology with simple, quick, dependable Monolithically-integrated gate drive solutions for breakthrough power density and efficiency. • Wide VCC range (10 to 30 V) • Navitas’ Programmable turn-on dV/dt GaNFast™ power ICs extend the • capabilities of traditional topologies such as flyback, Source Kelvin ground • half-bridge, resonant, etc. to MHz+ and enable the 200 V/ns dV/dt immunity commercial introduction of breakthrough designs. • Low 70 mΩ resistance • 800V transient voltage rating
3. Topologies / Applications
• 650V continuous voltage rating • AC-DC, DC-DC, DC-AC • 2 kV ESD rating (HBM) • Buck, boost, half bridge, full bridge • Zero reverse recovery charge • Active Clamp Flyback, LLC resonant, Class D • 2 MHz operation • Quasi-Resonant Flyback
Small, low-profile SMT QFN
• Mobile fast-chargers, adapters • • 6 x 8 mm footprint, 0.85 mm profile Notebook adaptors • • Minimized package inductance LED lighting, solar micro-inverters • TV / monitor, wireless power
Environmental
• Server, telecom & networking SMPS • RoHS, Pb-free, REACH-compliant
4. Typical Application Circuits
Boost Half-Bridge LLC
Final Datasheet 1 Rev Dec 16, 2020
