Datasheet LT8604 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | High Efficiency 42V/120mA Synchronous Buck |
| Páginas / Página | 20 / 2 — ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION … |
| Formato / tamaño de archivo | PDF / 2.8 Mb |
| Idioma del documento | Inglés |
ABSOLUTE MAXIMUM RATINGS. PIN CONFIGURATION. (Note 1). ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI). TAPE AND REEL
Línea de modelo para esta hoja de datos
Versión de texto del documento

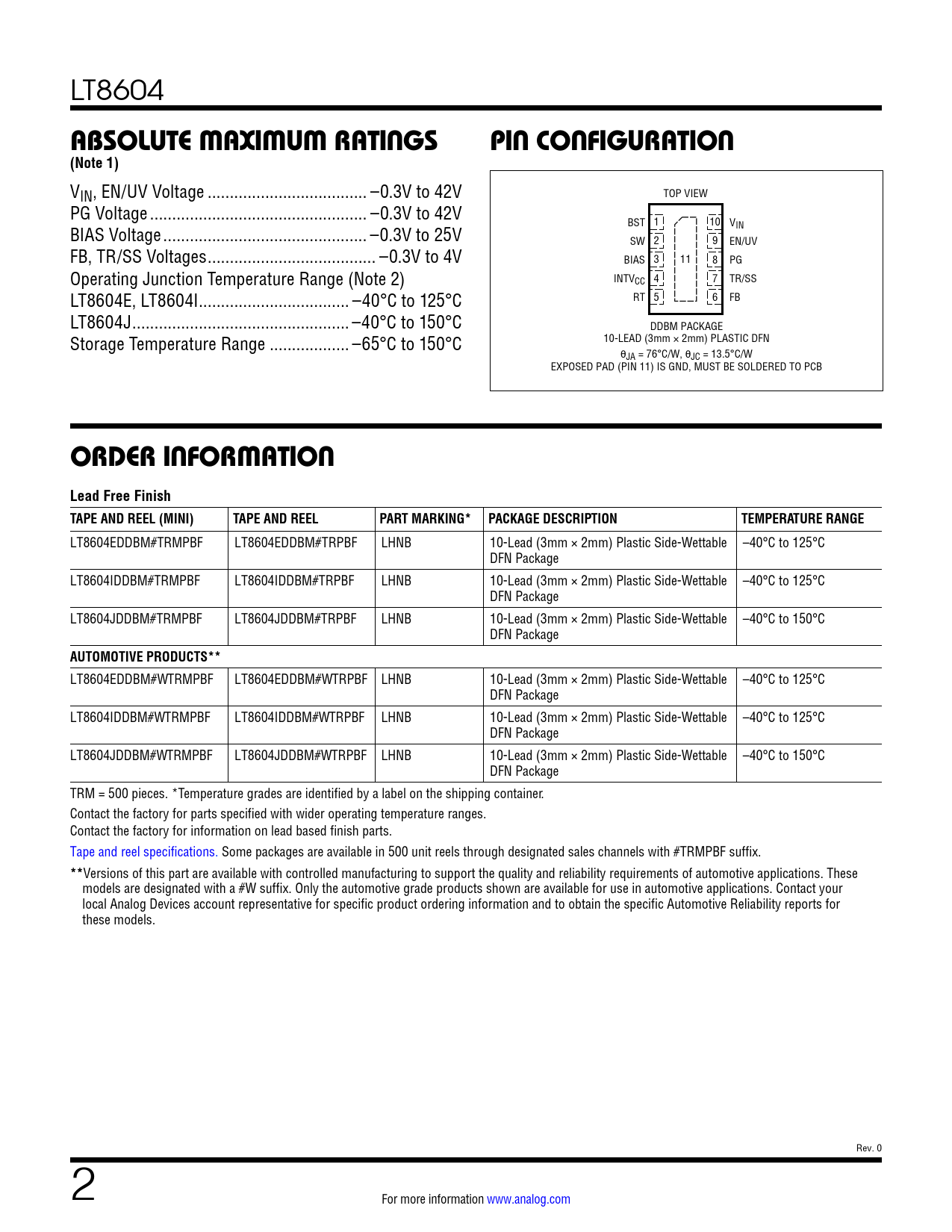

LT8604
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
VIN, EN/UV Voltage .. –0.3V to 42V TOP VIEW PG Voltage ... –0.3V to 42V BST 1 10 V BIAS Voltage .. –0.3V to 25V IN SW 2 9 EN/UV FB, TR/SS Voltages .. –0.3V to 4V BIAS 3 11 8 PG Operating Junction Temperature Range (Note 2) INTVCC 4 7 TR/SS LT8604E, LT8604I .. –40°C to 125°C RT 5 6 FB LT8604J ... –40°C to 150°C DDBM PACKAGE Storage Temperature Range .. –65°C to 150°C 10-LEAD (3mm × 2mm) PLASTIC DFN θJA = 76°C/W, θJC = 13.5°C/W EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8604EDDBM#TRMPBF LT8604EDDBM#TRPBF LHNB 10-Lead (3mm × 2mm) Plastic Side-Wettable –40°C to 125°C DFN Package LT8604IDDBM#TRMPBF LT8604IDDBM#TRPBF LHNB 10-Lead (3mm × 2mm) Plastic Side-Wettable –40°C to 125°C DFN Package LT8604JDDBM#TRMPBF LT8604JDDBM#TRPBF LHNB 10-Lead (3mm × 2mm) Plastic Side-Wettable –40°C to 150°C DFN Package
AUTOMOTIVE PRODUCTS**
LT8604EDDBM#WTRMPBF LT8604EDDBM#WTRPBF LHNB 10-Lead (3mm × 2mm) Plastic Side-Wettable –40°C to 125°C DFN Package LT8604IDDBM#WTRMPBF LT8604IDDBM#WTRPBF LHNB 10-Lead (3mm × 2mm) Plastic Side-Wettable –40°C to 125°C DFN Package LT8604JDDBM#WTRMPBF LT8604JDDBM#WTRPBF LHNB 10-Lead (3mm × 2mm) Plastic Side-Wettable –40°C to 150°C DFN Package TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Contact the factory for parts specified with wider operating temperature ranges. Contact the factory for information on lead based finish parts. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix.
**
Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. Rev. 0 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
