Datasheet AD826 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | High-Speed, Low-Power Dual Operational Amplifier |
| Páginas / Página | 15 / 8 — AD826. 3.3. 0.01. VOUT. TEKTRONIX. 1/2. P6201 FET. PULSE (LS). 7A24. 100. … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 738 Kb |
| Idioma del documento | Inglés |
AD826. 3.3. 0.01. VOUT. TEKTRONIX. 1/2. P6201 FET. PULSE (LS). 7A24. 100. PROBE. PREAMP. FUNCTION (SS). GENERATOR. –VS. 50ns. 200mV
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD826 1k VS 3.3 F 0.01 F VOUT TEKTRONIX 1/2 TEKTRONIX R P6201 FET PULSE (LS) IN 7A24 V AD826 IN 100 PROBE OR PREAMP FUNCTION (SS) GENERATOR 50 0.01 F RL 3.3 F –VS

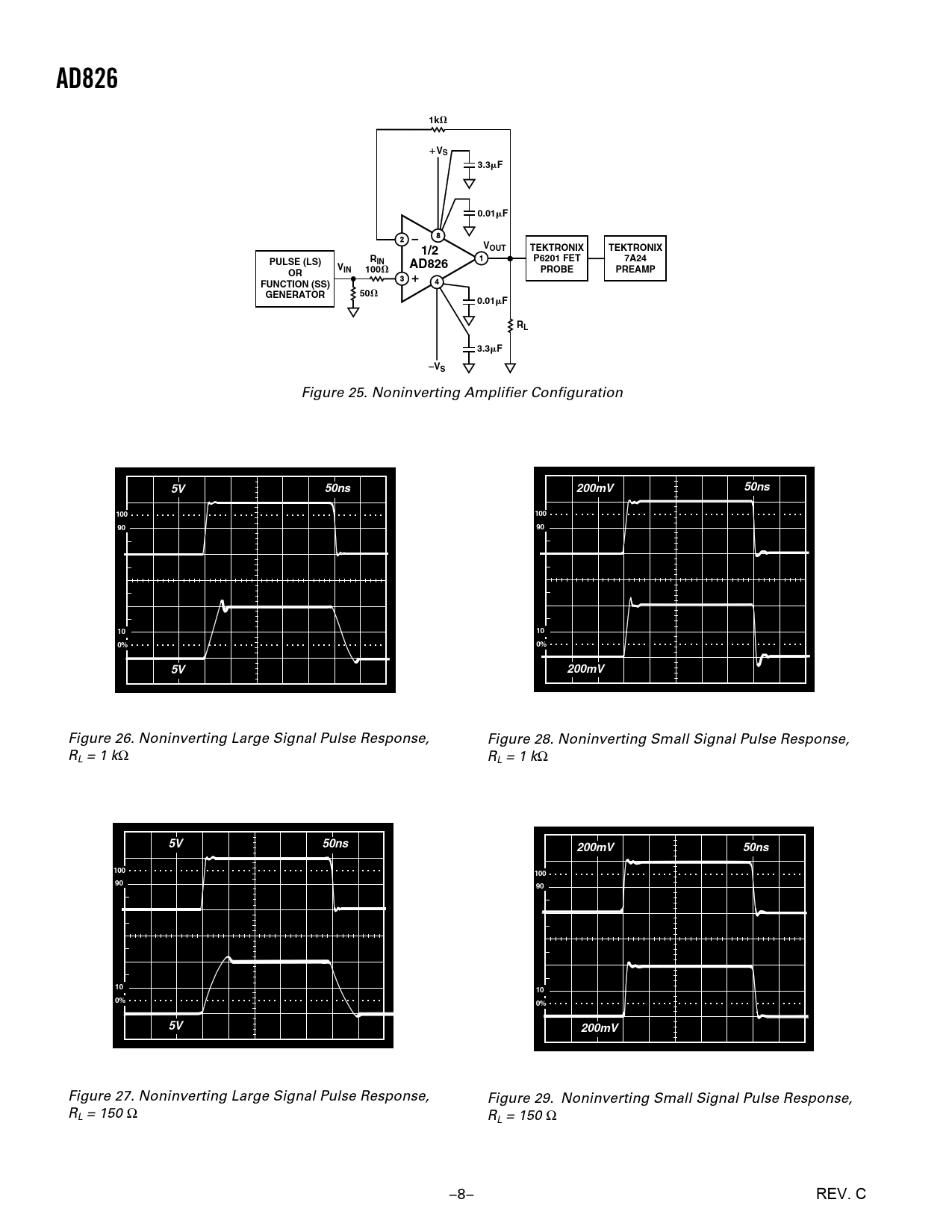

Figure 25. Noninverting Amplifier Configuration
5V 50ns 200mV 50ns 100 100 90 90 10 10 0% 0% 5V 200mV
Figure 26. Noninverting Large Signal Pulse Response, Figure 28. Noninverting Small Signal Pulse Response, RL = 1 kΩ RL = 1 kΩ
5V 50ns 5V 200mV 50ns 100 100 90 90 10 10 0% 0% 5V 200mV
Figure 27. Noninverting Large Signal Pulse Response, Figure 29. Noninverting Small Signal Pulse Response, RL = 150 Ω RL = 150 Ω –8– REV. C
