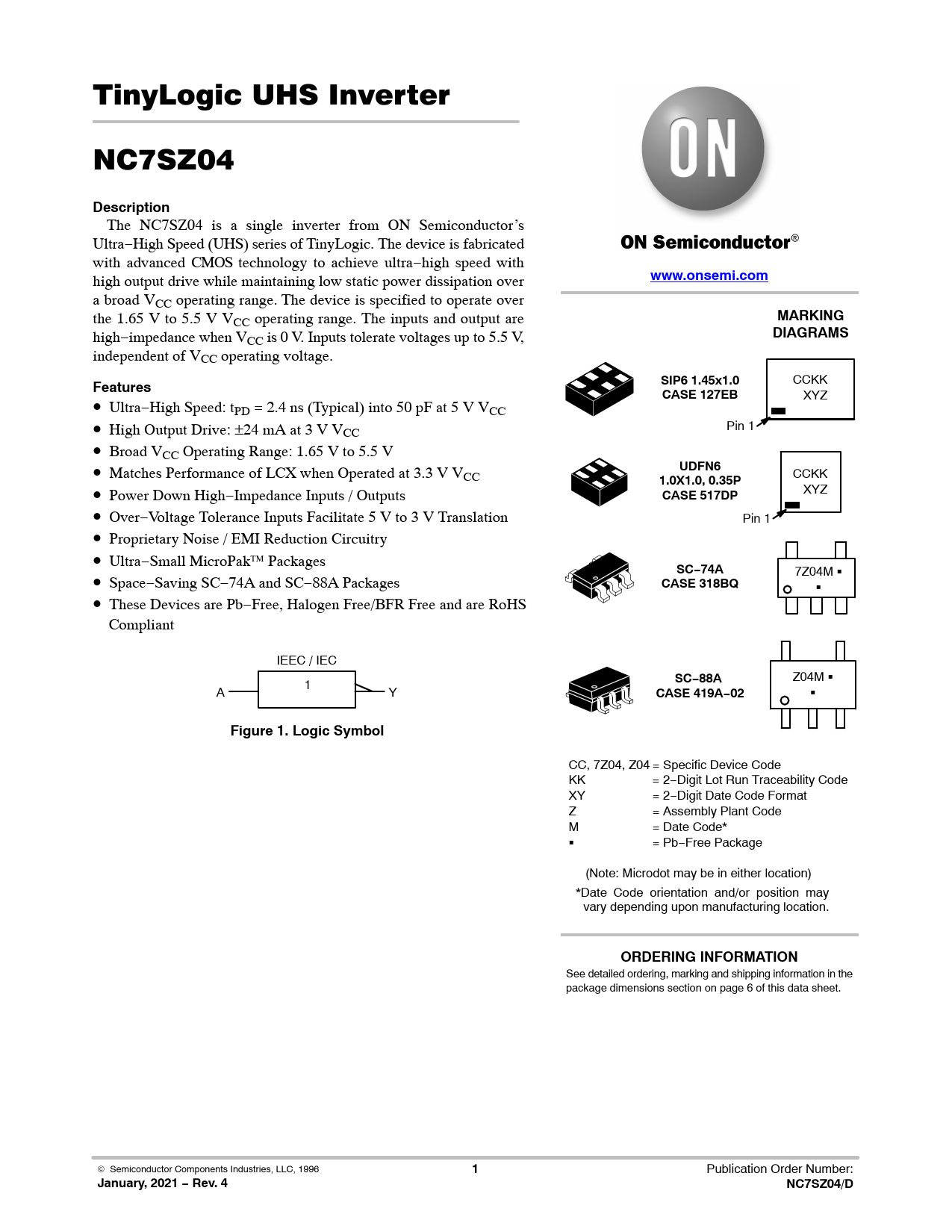

link to page 6 TinyLogic UHS Inverter NC7SZ04
Description
The NC7SZ04 is a single inverter from ON Semiconductor’s Ultra−High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over
www.onsemi.com
a broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC operating range. The inputs and output are
MARKING
high−impedance when V
DIAGRAMS
CC is 0 V. Inputs tolerate voltages up to 5.5 V, independent of VCC operating voltage.
Features SIP6 1.45x1.0
CCKK
CASE 127EB
• XYZ Ultra−High Speed: tPD = 2.4 ns (Typical) into 50 pF at 5 V VCC • High Output Drive: ±24 mA at 3 V VCC Pin 1 • Broad VCC Operating Range: 1.65 V to 5.5 V • Matches Performance of LCX when Operated at 3.3 V V
UDFN6
CC
1.0X1.0, 0.35P
CCKK • Power Down High−Impedance Inputs / Outputs
CASE 517DP
XYZ • Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation Pin 1 • Proprietary Noise / EMI Reduction Circuitry • Ultra−Small MicroPak™ Packages
SC−74A
• 7Z04M G Space−Saving SC−74A and SC−88A Packages
CASE 318BQ
G • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant IEEC / IEC
SC−88A
Z04M G A 1 Y
CASE 419A−02
G
Figure 1. Logic Symbol
CC, 7Z04, Z04 = Specific Device Code KK = 2−Digit Lot Run Traceability Code XY = 2−Digit Date Code Format Z = Assembly Plant Code M = Date Code* G = Pb−Free Package (Note: Microdot may be in either location) *Date Code orientation and/or position may vary depending upon manufacturing location.
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the package dimensions section on page 6 of this data sheet. © Semiconductor Components Industries, LLC, 1996
1
Publication Order Number:
January, 2021 − Rev. 4 NC7SZ04/D
