HMC5805ALS6
v02.0517

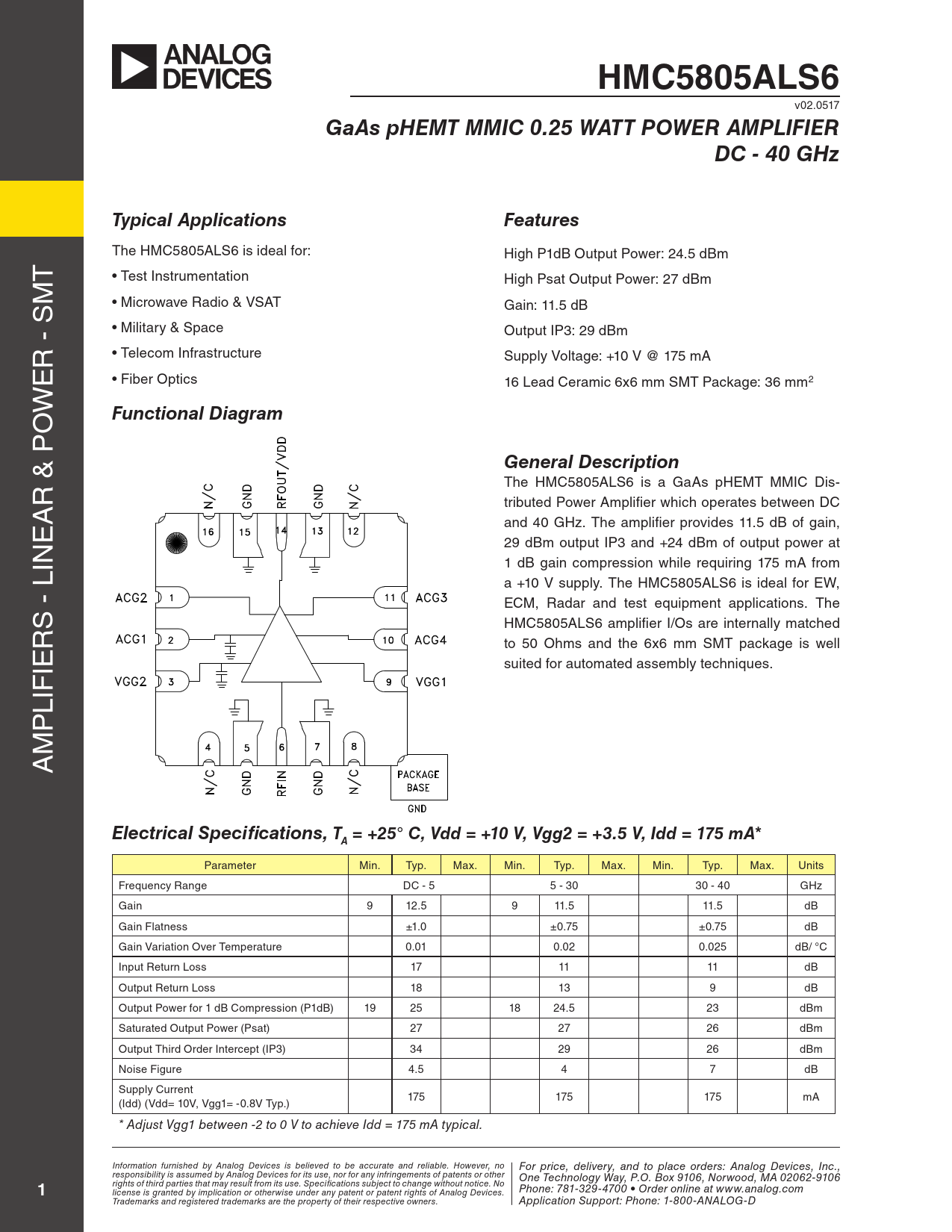

GaAs pHEMT MMIC 0.25 WATT POWER AMPLIFIER DC - 40 GHz Typical Applications Features
The HMC5805ALS6 is ideal for: High P1dB Output Power: 24.5 dBm T • Test Instrumentation M High Psat Output Power: 27 dBm • Microwave Radio & VSAT Gain: 11.5 dB • Military & Space Output IP3: 29 dBm R - S • Telecom Infrastructure Supply Voltage: +10 V @ 175 mA E • Fiber Optics 16 Lead Ceramic 6x6 mm SMT Package: 36 mm2 W O
Functional Diagram General Description
R & P The HMC5805ALS6 is a GaAs pHEMT MMIC Dis- A tributed Power Amplifier which operates between DC E and 40 GHz. The amplifier provides 11.5 dB of gain, 29 dBm output IP3 and +24 dBm of output power at IN 1 dB gain compression while requiring 175 mA from a +10 V supply. The HMC5805ALS6 is ideal for EW, ECM, Radar and test equipment applications. The S - L HMC5805ALS6 amplifier I/Os are internal y matched R to 50 Ohms and the 6x6 mm SMT package is well IE suited for automated assembly techniques. LIF P M A
Electrical Specifications, T = +25° C, Vdd = +10 V, Vgg2 = +3.5 V, Idd = 175 mA* A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range DC - 5 5 - 30 30 - 40 GHz Gain 9 12.5 9 11.5 11.5 dB Gain Flatness ±1.0 ±0.75 ±0.75 dB Gain Variation Over Temperature 0.01 0.02 0.025 dB/ °C Input Return Loss 17 11 11 dB Output Return Loss 18 13 9 dB Output Power for 1 dB Compression (P1dB) 19 25 18 24.5 23 dBm Saturated Output Power (Psat) 27 27 26 dBm Output Third Order Intercept (IP3) 34 29 26 dBm Noise Figure 4.5 4 7 dB Supply Current 175 175 175 mA (Idd) (Vdd= 10V, Vgg1= -0.8V Typ.) * Adjust Vgg1 between -2 to 0 V to achieve Idd = 175 mA typical. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
