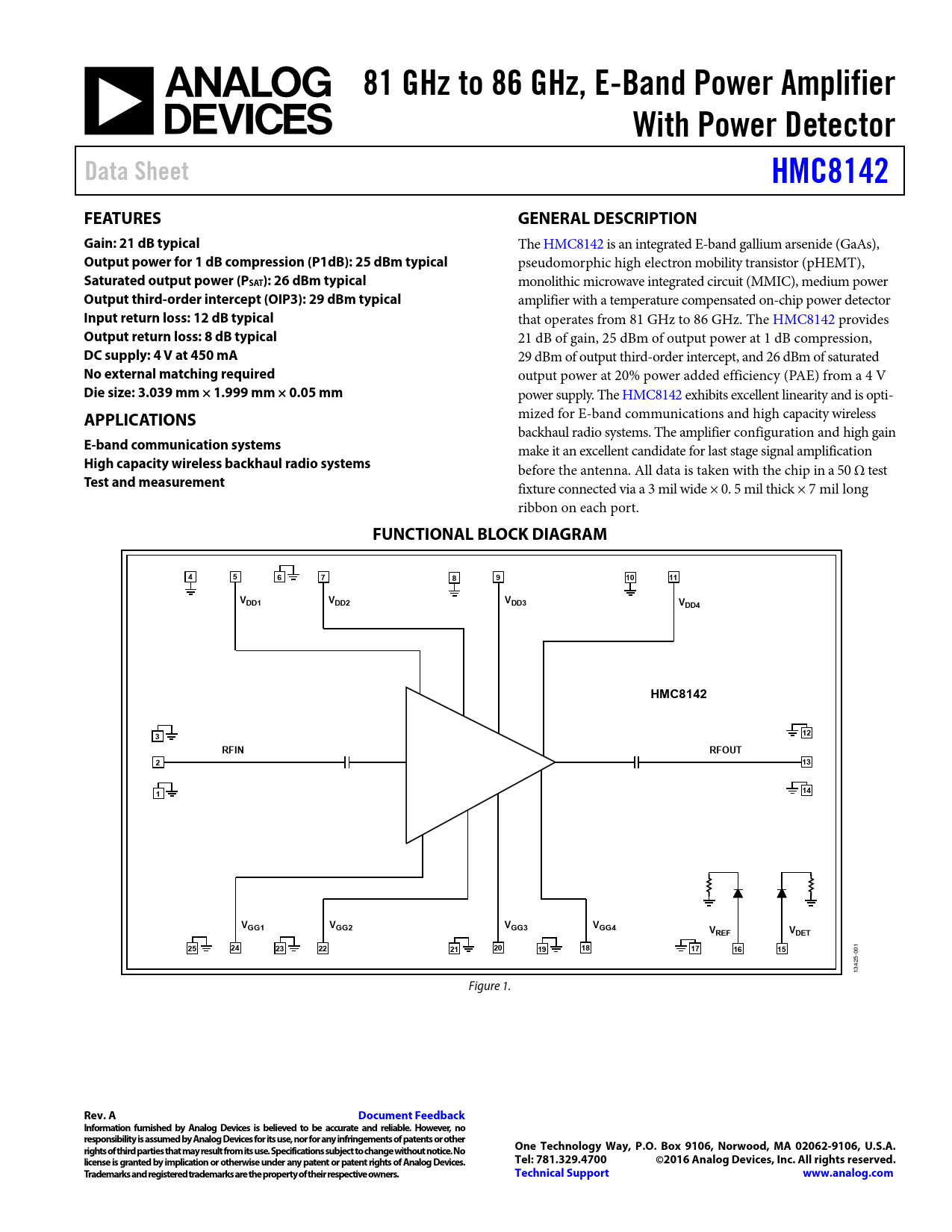

81 GHz to 86 GHz, E-Band Power Amplifier. With Power Detector. Data Sheet. HMC8142. FEATURES. GENERAL DESCRIPTION

Datasheet HMC8142 Analog Devices, Revisión: A

Línea de modelo para esta hoja de datos

Versión de texto del documento

81 GHz to 86 GHz, E-Band Power Amplifier With Power Detector Data Sheet HMC8142 FEATURES GENERAL DESCRIPTION Gain: 21 dB typical
The HMC8142 is an integrated E-band gallium arsenide (GaAs),
Output power for 1 dB compression (P1dB): 25 dBm typical
pseudomorphic high electron mobility transistor (pHEMT),
Saturated output power (PSAT): 26 dBm typical
monolithic microwave integrated circuit (MMIC), medium power
Output third-order intercept (OIP3): 29 dBm typical
amplifier with a temperature compensated on-chip power detector
Input return loss: 12 dB typical
that operates from 81 GHz to 86 GHz. The HMC8142 provides
Output return loss: 8 dB typical
21 dB of gain, 25 dBm of output power at 1 dB compression,
DC supply: 4 V at 450 mA
29 dBm of output third-order intercept, and 26 dBm of saturated
No external matching required
output power at 20% power added efficiency (PAE) from a 4 V
Die size: 3.039 mm × 1.999 mm × 0.05 mm
power supply. The HMC8142 exhibits excellent linearity and is opti-
APPLICATIONS
mized for E-band communications and high capacity wireless backhaul radio systems. The amplifier configuration and high gain
E-band communication systems
make it an excellent candidate for last stage signal amplification
High capacity wireless backhaul radio systems
before the antenna. All data is taken with the chip in a 50 Ω test
Test and measurement
fixture connected via a 3 mil wide × 0. 5 mil thick × 7 mil long ribbon on each port.
FUNCTIONAL BLOCK DIAGRAM 4 5 6 7 8 9 10 11 VDD1 VDD2 VDD3 VDD4 HMC8142 3 12 RFIN RFOUT 2 13 1 14 VGG1 VGG2 VGG3 VGG4 VREF VDET 25 24 23 22 21 20 19 18 17 16 15
1 -00 25 134 Figure 1.
