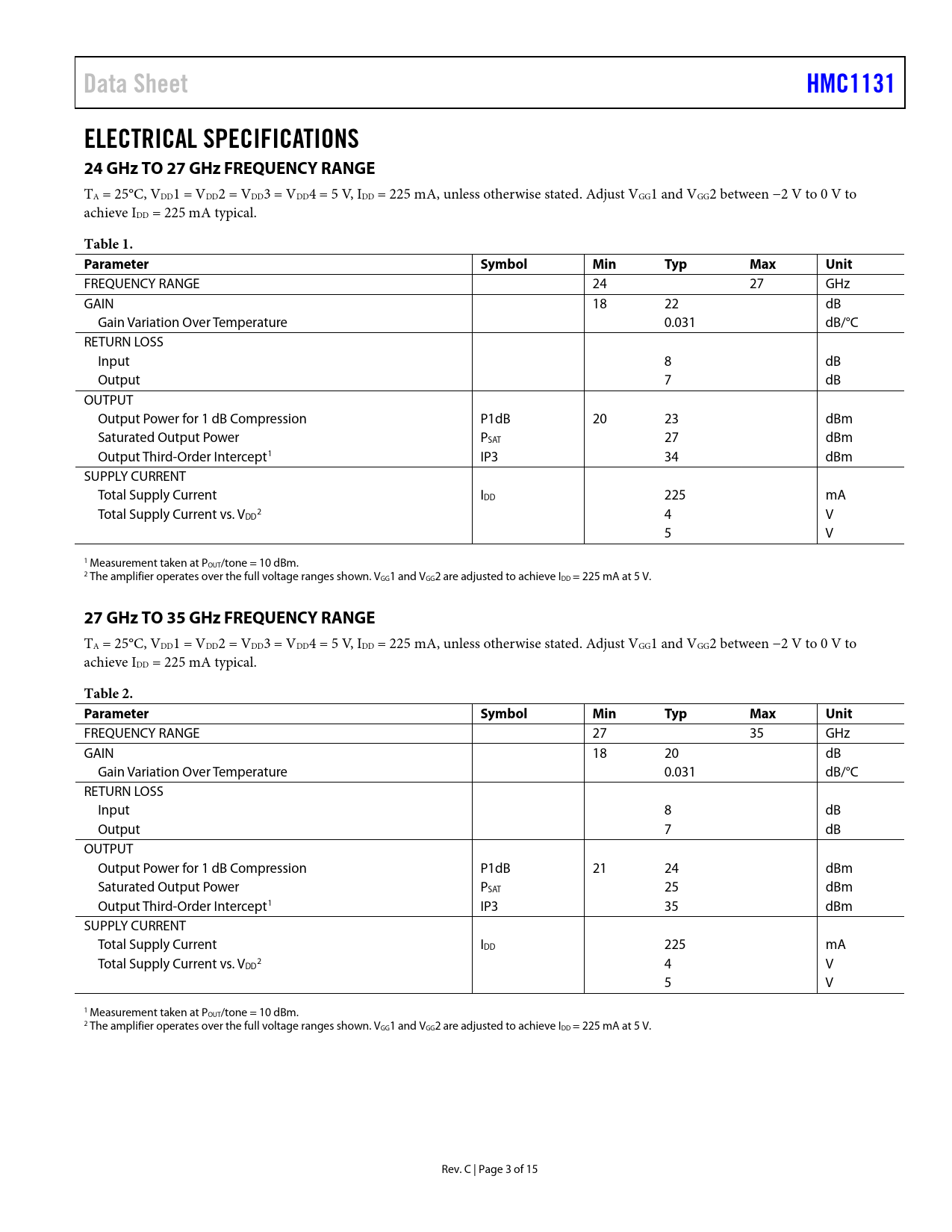

Data Sheet. HMC1131. ELECTRICAL SPECIFICATIONS 24 GHz TO 27 GHz FREQUENCY RANGE. Table 1. Parameter. Symbol. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet HMC1131 ELECTRICAL SPECIFICATIONS 24 GHz TO 27 GHz FREQUENCY RANGE
TA = 25°C, VDD1 = VDD2 = VDD3 = VDD4 = 5 V, IDD = 225 mA, unless otherwise stated. Adjust VGG1 and VGG2 between −2 V to 0 V to achieve IDD = 225 mA typical.
Table 1. Parameter Symbol Min Typ Max Unit
FREQUENCY RANGE 24 27 GHz GAIN 18 22 dB Gain Variation Over Temperature 0.031 dB/°C RETURN LOSS Input 8 dB Output 7 dB OUTPUT Output Power for 1 dB Compression P1dB 20 23 dBm Saturated Output Power PSAT 27 dBm Output Third-Order Intercept1 IP3 34 dBm SUPPLY CURRENT Total Supply Current IDD 225 mA Total Supply Current vs. V 2 DD 4 V 5 V 1 Measurement taken at POUT/tone = 10 dBm. 2 The amplifier operates over the full voltage ranges shown. VGG1 and VGG2 are adjusted to achieve IDD = 225 mA at 5 V.
27 GHz TO 35 GHz FREQUENCY RANGE
TA = 25°C, VDD1 = VDD2 = VDD3 = VDD4 = 5 V, IDD = 225 mA, unless otherwise stated. Adjust VGG1 and VGG2 between −2 V to 0 V to achieve IDD = 225 mA typical.
Table 2. Parameter Symbol Min Typ Max Unit
FREQUENCY RANGE 27 35 GHz GAIN 18 20 dB Gain Variation Over Temperature 0.031 dB/°C RETURN LOSS Input 8 dB Output 7 dB OUTPUT Output Power for 1 dB Compression P1dB 21 24 dBm Saturated Output Power PSAT 25 dBm Output Third-Order Intercept1 IP3 35 dBm SUPPLY CURRENT Total Supply Current IDD 225 mA Total Supply Current vs. V 2 DD 4 V 5 V 1 Measurement taken at POUT/tone = 10 dBm. 2 The amplifier operates over the full voltage ranges shown. VGG1 and VGG2 are adjusted to achieve IDD = 225 mA at 5 V. Rev. C | Page 3 of 15 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY ELECTRICAL SPECIFICATIONS 24 GHz TO 27 GHz FREQUENCY RANGE 27 GHz TO 35 GHz FREQUENCY RANGE ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION EVALUATION PCB Bill of Materials TYPICAL APPLICATION CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE
