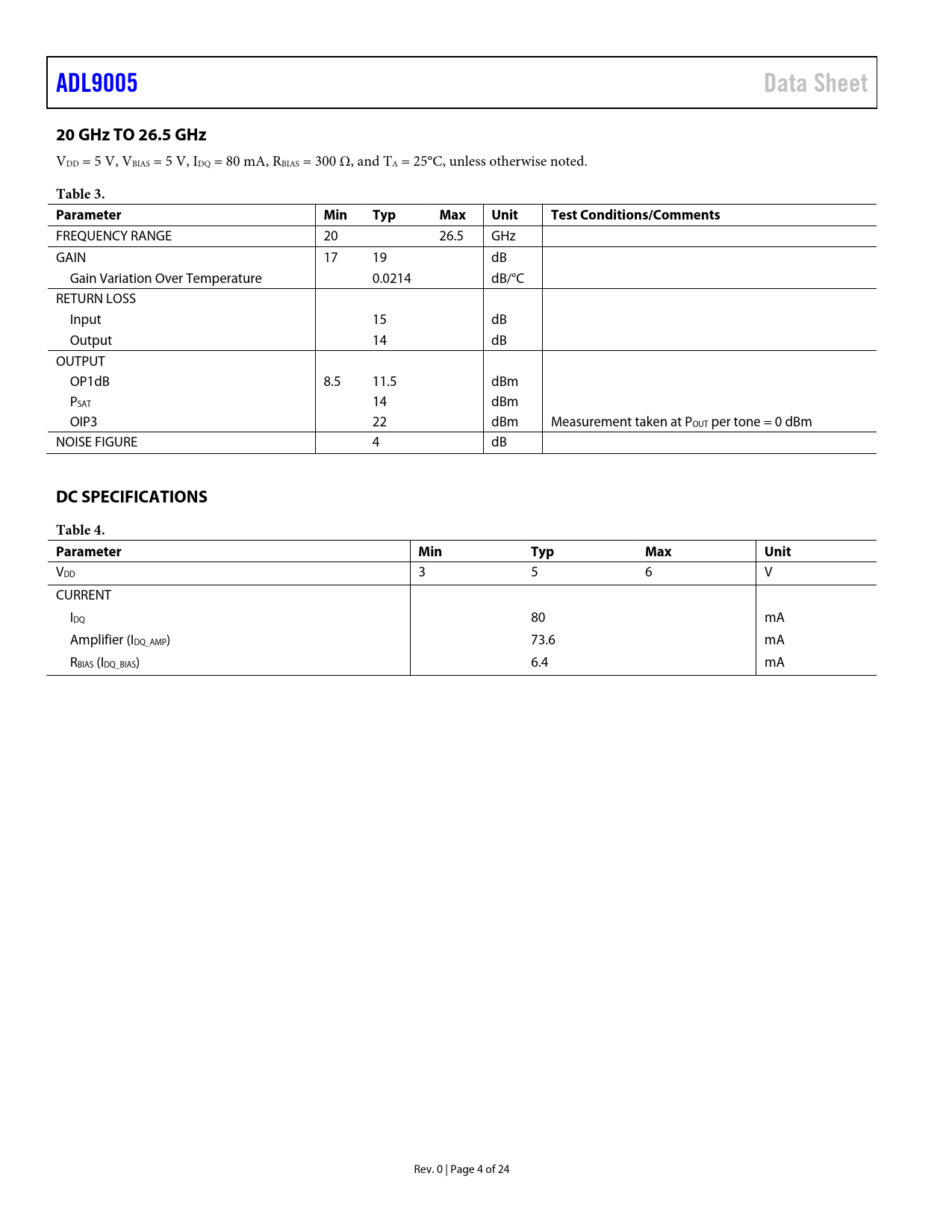

ADL9005. Data Sheet. 20 GHz TO 26.5 GHz. Table 3. Parameter. Min. Typ. Max. Unit. Test Conditions/Comments. DC SPECIFICATIONS

ADL9005 Data Sheet 20 GHz TO 26.5 GHz Table 3 Parameter Min Typ Max Unit Test Conditions/Comments DC SPECIFICATIONS

Línea de modelo para esta hoja de datos

Versión de texto del documento

ADL9005 Data Sheet 20 GHz TO 26.5 GHz
VDD = 5 V, VBIAS = 5 V, IDQ = 80 mA, RBIAS = 300 Ω, and TA = 25°C, unless otherwise noted.
Table 3. Parameter Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 20 26.5 GHz GAIN 17 19 dB Gain Variation Over Temperature 0.0214 dB/°C RETURN LOSS Input 15 dB Output 14 dB OUTPUT OP1dB 8.5 11.5 dBm PSAT 14 dBm OIP3 22 dBm Measurement taken at POUT per tone = 0 dBm NOISE FIGURE 4 dB
DC SPECIFICATIONS Table 4. Parameter Min Typ Max Unit
VDD 3 5 6 V CURRENT IDQ 80 mA Amplifier (IDQ_AMP) 73.6 mA RBIAS (IDQ_BIAS) 6.4 mA Rev. 0 | Page 4 of 24 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 0.01 GHz TO 14 GHz 14 GHz TO 20 GHz 20 GHz TO 26.5 GHz DC SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADL9005 ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS BIASING THROUGH THE ACG4/VDD2 PIN THEORY OF OPERATION APPLICATIONS INFORMATION BASIC CONNECTIONS BIASING THE ADL9005 BY USING THE LTM8020 PROVIDING DRAIN BIAS PROVIDING DRAIN BIAS THROUGH THE ACG4/VDD2 PIN POWER-UP AND POWER-DOWN SEQUENCING OUTLINE DIMENSIONS ORDERING GUIDE
