Datasheet ADL5726 (Analog Devices)

FabricanteAnalog Devices
Descripción21.2 GHz to 23.6 GHz, Low Noise Amplifier
Páginas / Página13 / 1 — 21.2 GHz to 23.6 GHz, Low Noise Amplifier. Data Sheet. ADL5726. FEATURES. …
RevisiónA
Formato / tamaño de archivoPDF / 355 Kb
Idioma del documentoInglés

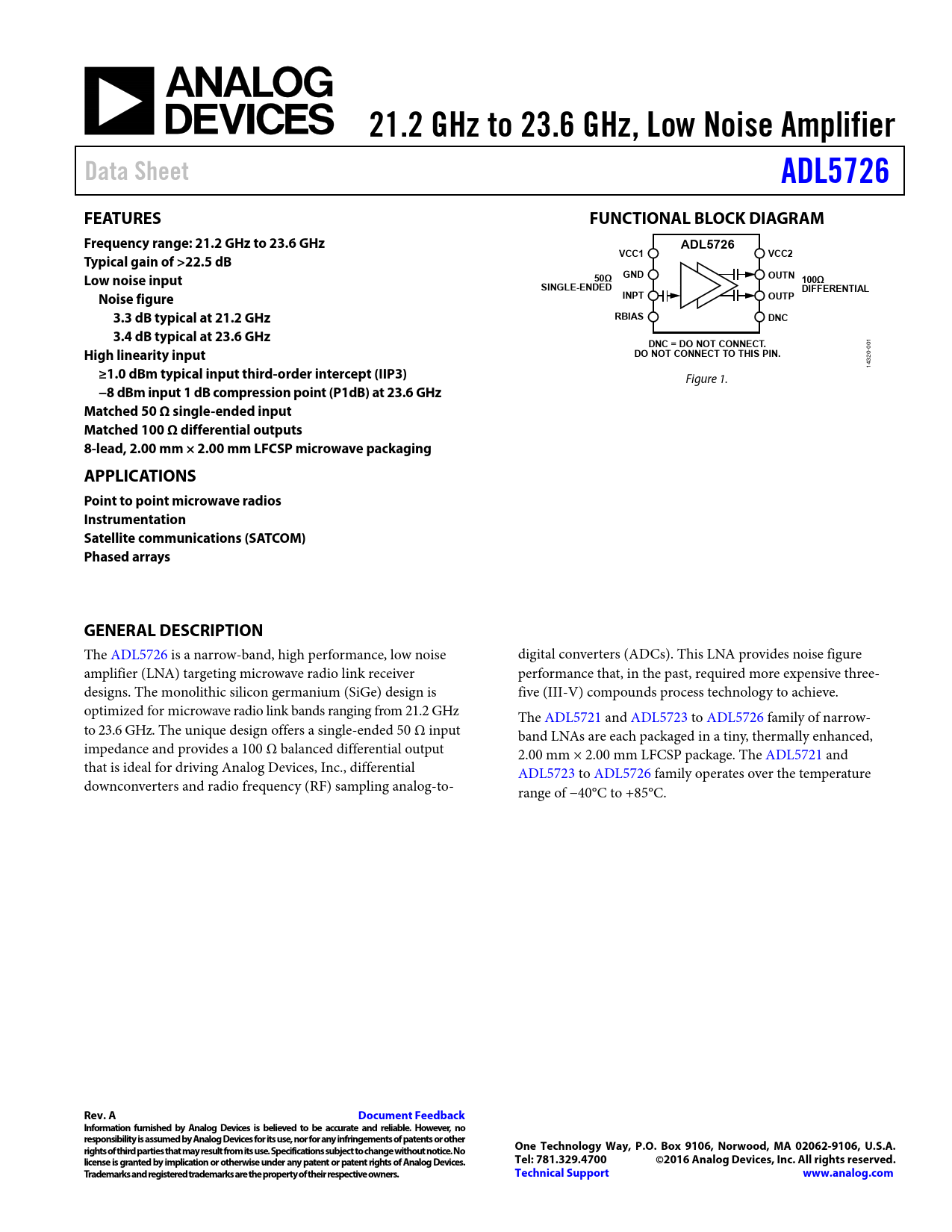

21.2 GHz to 23.6 GHz, Low Noise Amplifier. Data Sheet. ADL5726. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet ADL5726 Analog Devices, Revisión: A

Línea de modelo para esta hoja de datos

Versión de texto del documento

21.2 GHz to 23.6 GHz, Low Noise Amplifier Data Sheet ADL5726 FEATURES FUNCTIONAL BLOCK DIAGRAM Frequency range: 21.2 GHz to 23.6 GHz ADL5726 VCC1 VCC2 Typical gain of >22.5 dB GND OUTN Low noise input 50Ω 100Ω SINGLE-ENDED DIFFERENTIAL Noise figure INPT OUTP 3.3 dB typical at 21.2 GHz RBIAS DNC 3.4 dB typical at 23.6 GHz
1
DNC = DO NOT CONNECT.
00
High linearity input
0-
DO NOT CONNECT TO THIS PIN.
32 14
≥1.0 dBm typical input third-order intercept (IIP3)
Figure 1.
−8 dBm input 1 dB compression point (P1dB) at 23.6 GHz Matched 50 Ω single-ended input Matched 100 Ω differential outputs 8-lead, 2.00 mm × 2.00 mm LFCSP microwave packaging APPLICATIONS Point to point microwave radios Instrumentation Satellite communications (SATCOM) Phased arrays GENERAL DESCRIPTION
The ADL5726 is a narrow-band, high performance, low noise digital converters (ADCs). This LNA provides noise figure amplifier (LNA) targeting microwave radio link receiver performance that, in the past, required more expensive three- designs. The monolithic silicon germanium (SiGe) design is five (III-V) compounds process technology to achieve. optimized for microwave radio link bands ranging from 21.2 GHz The ADL5721 and ADL5723 to ADL5726 family of narrow- to 23.6 GHz. The unique design offers a single-ended 50 Ω input band LNAs are each packaged in a tiny, thermally enhanced, impedance and provides a 100 Ω balanced differential output 2.00 mm × 2.00 mm LFCSP package. The ADL5721 and that is ideal for driving Analog Devices, Inc., differential ADL5723 to ADL5726 family operates over the temperature downconverters and radio frequency (RF) sampling analog-to- range of −40°C to +85°C.
Rev. A Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS AC SPECIFICATIONS DC SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION LAYOUT DIFFERENTIAL vs. SINGLE-ENDED OUTPUT PERFORMANCE UP TO 26.5 GHz EVALUATION BOARD INITIAL SETUP RESULTS BASIC CONNECTIONS FOR OPERATION OUTLINE DIMENSIONS ORDERING GUIDE
