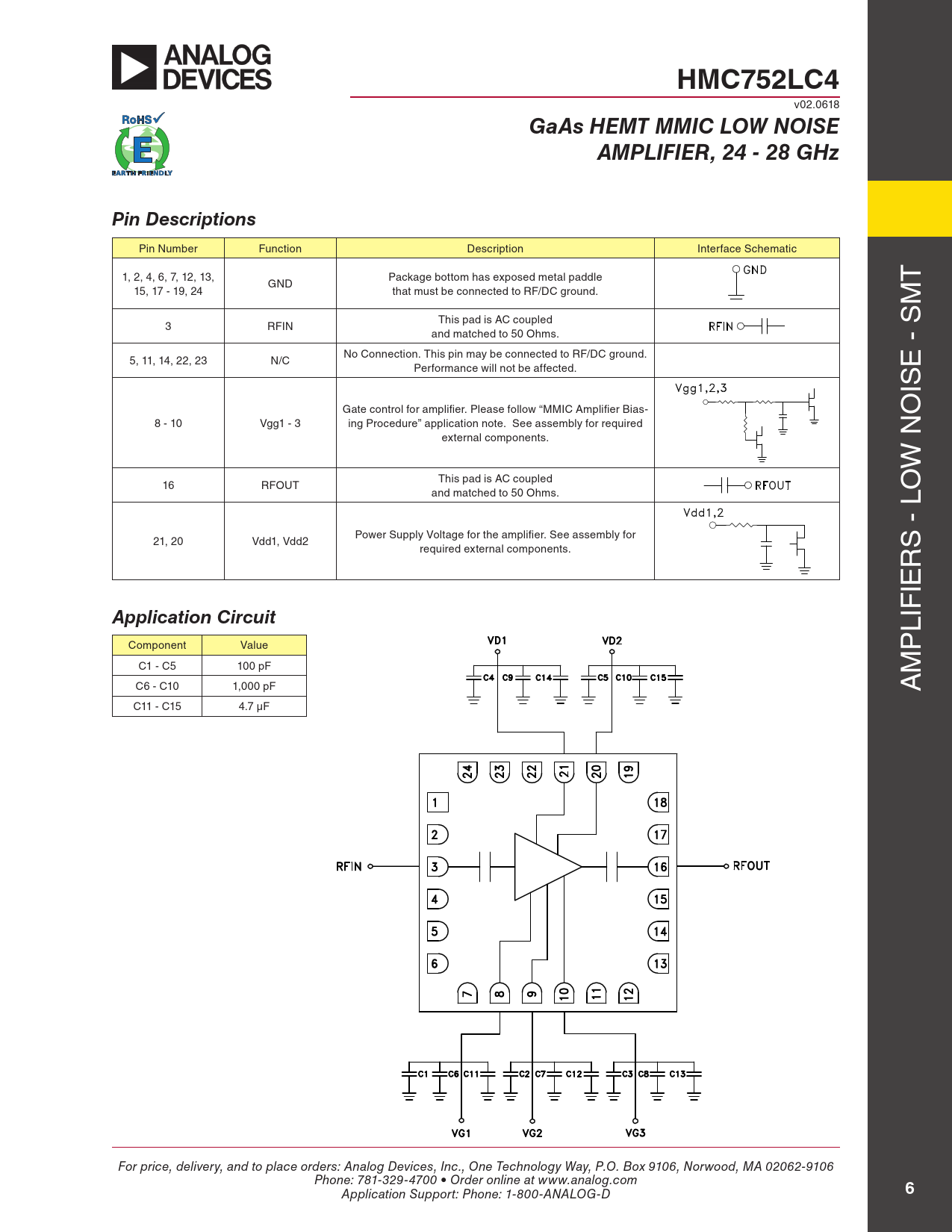

HMC752LC4
v02.0618
GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 28 GHz Pin Descriptions
Pin Number Function Description Interface Schematic 1, 2, 4, 6, 7, 12, 13, Package bottom has exposed metal paddle GND T 15, 17 - 19, 24 that must be connected to RF/DC ground. M This pad is AC coupled 3 RFIN and matched to 50 Ohms. No Connection. This pin may be connected to RF/DC ground. 5, 11, 14, 22, 23 N/C Performance will not be affected. E - S IS Gate control for amplifier. Please follow “MMIC Amplifier Bias- O 8 - 10 Vgg1 - 3 ing Procedure” application note. See assembly for required external components. W N This pad is AC coupled 16 RFOUT O and matched to 50 Ohms. Power Supply Voltage for the amplifier. See assembly for 21, 20 Vdd1, Vdd2 required external components. S - L R IE
Application Circuit
LIF Component Value P C1 - C5 100 pF M C6 - C10 1,000 pF A C11 - C15 4.7 µF For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
