HMC549MS8GE. DUAL OUTPUT LOW NOISE. AMPLIFIER, 0.04 - 0.96 GHz. Absolute Maximum Ratings. Typical Supply Current vs. Vdd
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC549MS8GE
v04.0120

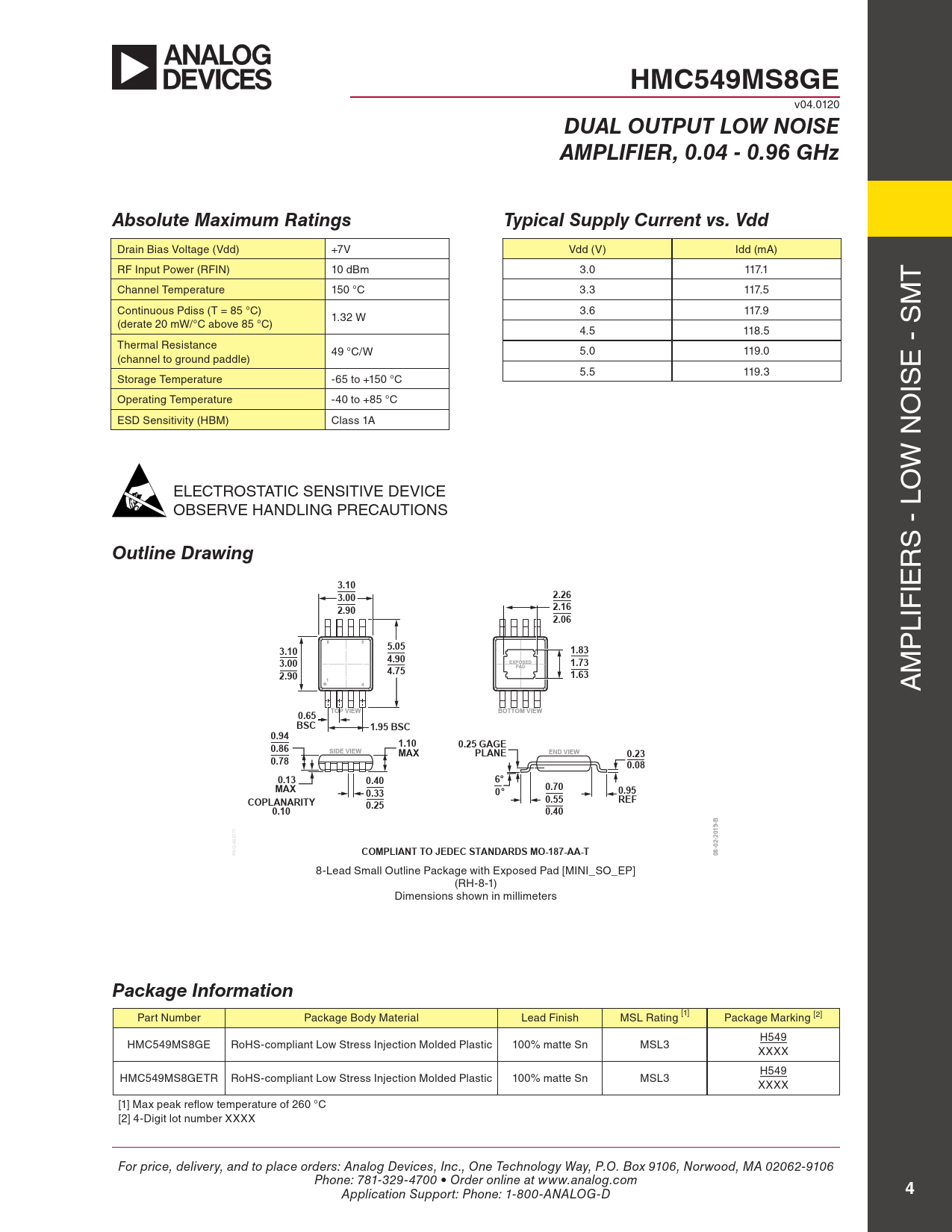

DUAL OUTPUT LOW NOISE AMPLIFIER, 0.04 - 0.96 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd) +7V Vdd (V) Idd (mA) RF Input Power (RFIN) 10 dBm 3.0 117.1 T Channel Temperature 150 °C 3.3 117.5 M Continuous Pdiss (T = 85 °C) 3.6 117.9 1.32 W (derate 20 mW/°C above 85 °C) 4.5 118.5 Thermal Resistance 49 °C/W 5.0 119.0 (channel to ground paddle) E - S 5.5 119.3 Storage Temperature -65 to +150 °C IS Operating Temperature -40 to +85 °C O ESD Sensitivity (HBM) Class 1A W N O ELECTROSTATIC SENSITIVE DEVICE OBSERVE HANDLING PRECAUTIONS
8-Lead Mini Small Outline Package with Exposed Pad [MINI_SO_EP] (RH-8-1) Dimensions shown in millimeters
S - L
Outline Drawing
R
3.10 2.26
IE
3.00 2.90 2.16 2.06
LIF
8 5 3.10 5.05 1.83
P
3.00 4.90 EXPOSED PAD 1.73 4.75 1.63
M
2.90 1 4
A
TOP VIEW BOTTOM VIEW 0.65 BSC 1.95 BSC 0.94 0.86 1.10 0.25 GAGE SIDE VIEW END VIEW MAX PLANE 0.23 0.78 0.08 0.13 0.40 6° MAX 0.33 0.70 0° 0.95 COPLANARITY 0.25 0.55 REF 0.10 0.40 PKG-003371 COMPLIANT TO JEDEC STANDARDS MO-187-AA-T 08-02-2019-B
8-Lead Small Outline Package with Exposed Pad [MINI_SO_EP] (RH-8-1) Dimensions shown in millimeters
Package Information
Part Number Package Body Material Lead Finish MSL Rating [1] Package Marking [2] H549 HMC549MS8GE RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL3 XXXX H549 HMC549MS8GETR RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL3 XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
