HMC519. GaAs PHEMT MMIC LOW NOISE. AMPLIFIER, 18 - 32 GHz. Typical Applications. Features. Functional Diagram. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento

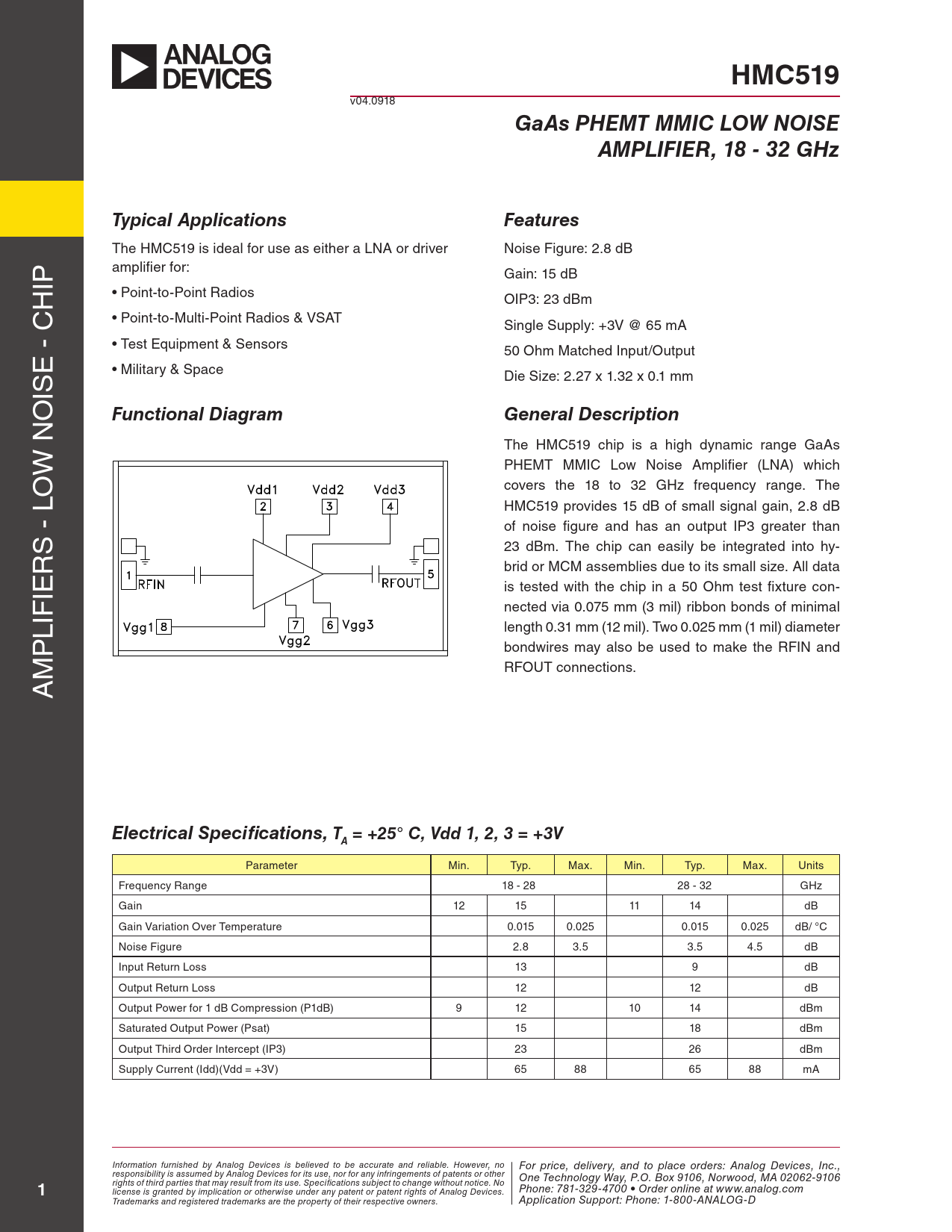

HMC519
v04.0918
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 18 - 32 GHz Typical Applications Features
The HMC519 is ideal for use as either a LNA or driver Noise Figure: 2.8 dB IP amplifier for: Gain: 15 dB H • Point-to-Point Radios OIP3: 23 dBm • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 65 mA • Test Equipment & Sensors E - C 50 Ohm Matched Input/Output • Military & Space IS Die Size: 2.27 x 1.32 x 0.1 mm O
Functional Diagram General Description
The HMC519 chip is a high dynamic range GaAs W N PHEMT MMIC Low Noise Amplifier (LNA) which O covers the 18 to 32 GHz frequency range. The HMC519 provides 15 dB of small signal gain, 2.8 dB of noise figure and has an output IP3 greater than S - L 23 dBm. The chip can easily be integrated into hy- R brid or MCM assemblies due to its small size. All data IE is tested with the chip in a 50 Ohm test fixture con- nected via 0.075 mm (3 mil) ribbon bonds of minimal LIF length 0.31 mm (12 mil). Two 0.025 mm (1 mil) diameter P bondwires may also be used to make the RFIN and M RFOUT connections. A
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +3V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 18 - 28 28 - 32 GHz Gain 12 15 11 14 dB Gain Variation Over Temperature 0.015 0.025 0.015 0.025 dB/ °C Noise Figure 2.8 3.5 3.5 4.5 dB Input Return Loss 13 9 dB Output Return Loss 12 12 dB Output Power for 1 dB Compression (P1dB) 9 12 10 14 dBm Saturated Output Power (Psat) 15 18 dBm Output Third Order Intercept (IP3) 23 26 dBm Supply Current (Idd)(Vdd = +3V) 65 88 65 88 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
v04.0918
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 18 - 32 GHz Typical Applications Features
The HMC519 is ideal for use as either a LNA or driver Noise Figure: 2.8 dB IP amplifier for: Gain: 15 dB H • Point-to-Point Radios OIP3: 23 dBm • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 65 mA • Test Equipment & Sensors E - C 50 Ohm Matched Input/Output • Military & Space IS Die Size: 2.27 x 1.32 x 0.1 mm O
Functional Diagram General Description
The HMC519 chip is a high dynamic range GaAs W N PHEMT MMIC Low Noise Amplifier (LNA) which O covers the 18 to 32 GHz frequency range. The HMC519 provides 15 dB of small signal gain, 2.8 dB of noise figure and has an output IP3 greater than S - L 23 dBm. The chip can easily be integrated into hy- R brid or MCM assemblies due to its small size. All data IE is tested with the chip in a 50 Ohm test fixture con- nected via 0.075 mm (3 mil) ribbon bonds of minimal LIF length 0.31 mm (12 mil). Two 0.025 mm (1 mil) diameter P bondwires may also be used to make the RFIN and M RFOUT connections. A
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +3V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 18 - 28 28 - 32 GHz Gain 12 15 11 14 dB Gain Variation Over Temperature 0.015 0.025 0.015 0.025 dB/ °C Noise Figure 2.8 3.5 3.5 4.5 dB Input Return Loss 13 9 dB Output Return Loss 12 12 dB Output Power for 1 dB Compression (P1dB) 9 12 10 14 dBm Saturated Output Power (Psat) 15 18 dBm Output Third Order Intercept (IP3) 23 26 dBm Supply Current (Idd)(Vdd = +3V) 65 88 65 88 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
