Datasheet HMC516LC5 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | SMT PHEMT LOW NOISE AMPLIFIER, 9 - 18 GHz |
| Páginas / Página | 6 / 1 — HMC516LC5. SMT PHEMT LOW NOISE. AMPLIFIER, 9 - 18 GHz. Typical … |
| Formato / tamaño de archivo | PDF / 944 Kb |
| Idioma del documento | Inglés |

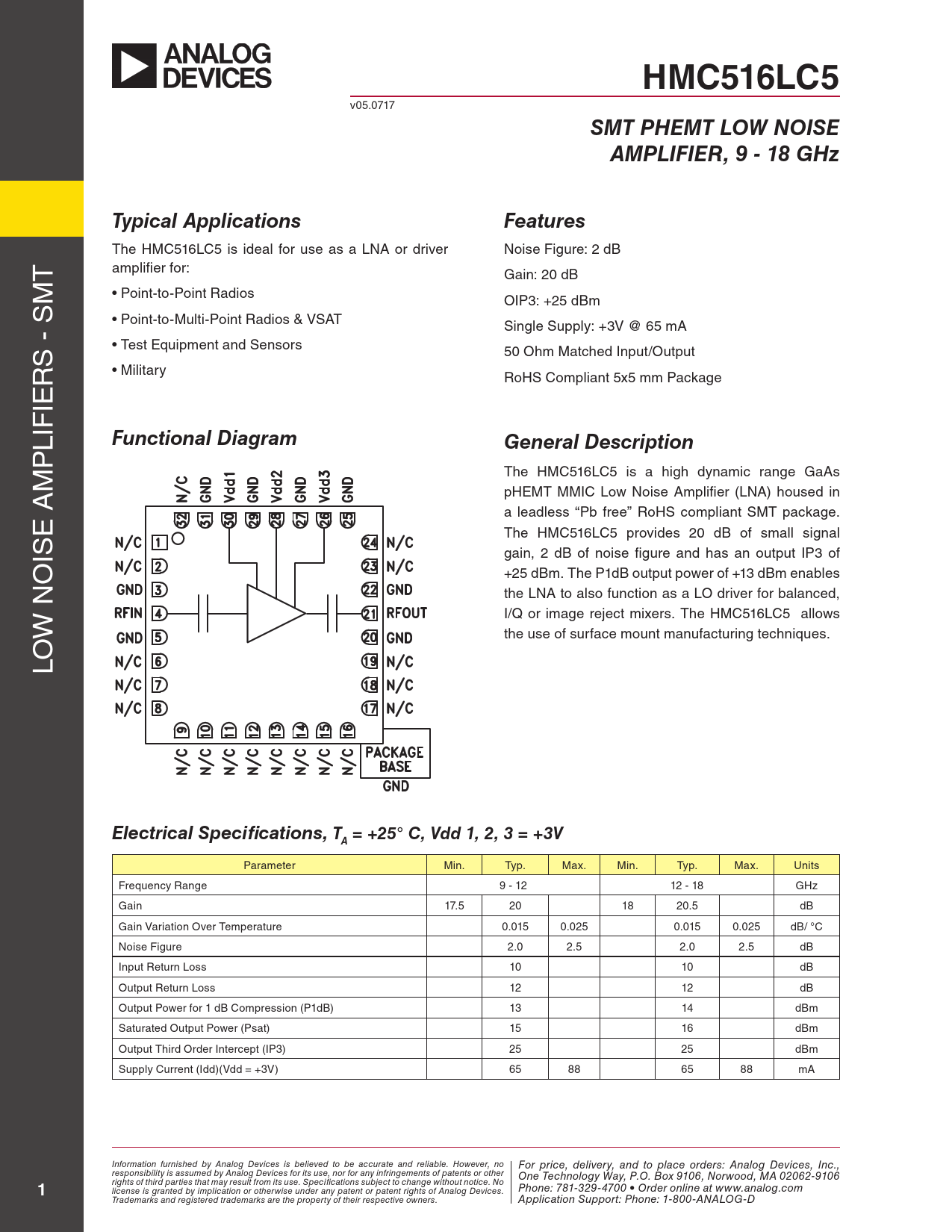

HMC516LC5. SMT PHEMT LOW NOISE. AMPLIFIER, 9 - 18 GHz. Typical Applications. Features. Functional Diagram. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC516LC5
v05.0717
SMT PHEMT LOW NOISE AMPLIFIER, 9 - 18 GHz Typical Applications Features
The HMC516LC5 is ideal for use as a LNA or driver Noise Figure: 2 dB T amplifier for: Gain: 20 dB M • Point-to-Point Radios OIP3: +25 dBm • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 65 mA S - S • Test Equipment and Sensors 50 Ohm Matched Input/Output R • Military RoHS Compliant 5x5 mm Package IE LIF
Functional Diagram General Description
P M The HMC516LC5 is a high dynamic range GaAs pHEMT MMIC Low Noise Amplifier (LNA) housed in E A a leadless “Pb free” RoHS compliant SMT package. The HMC516LC5 provides 20 dB of small signal IS gain, 2 dB of noise figure and has an output IP3 of O +25 dBm. The P1dB output power of +13 dBm enables the LNA to also function as a LO driver for balanced, W N I/Q or image reject mixers. The HMC516LC5 al ows the use of surface mount manufacturing techniques. LO
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +3V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 9 - 12 12 - 18 GHz Gain 17.5 20 18 20.5 dB Gain Variation Over Temperature 0.015 0.025 0.015 0.025 dB/ °C Noise Figure 2.0 2.5 2.0 2.5 dB Input Return Loss 10 10 dB Output Return Loss 12 12 dB Output Power for 1 dB Compression (P1dB) 13 14 dBm Saturated Output Power (Psat) 15 16 dBm Output Third Order Intercept (IP3) 25 25 dBm Supply Current (Idd)(Vdd = +3V) 65 88 65 88 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
v05.0717
SMT PHEMT LOW NOISE AMPLIFIER, 9 - 18 GHz Typical Applications Features
The HMC516LC5 is ideal for use as a LNA or driver Noise Figure: 2 dB T amplifier for: Gain: 20 dB M • Point-to-Point Radios OIP3: +25 dBm • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 65 mA S - S • Test Equipment and Sensors 50 Ohm Matched Input/Output R • Military RoHS Compliant 5x5 mm Package IE LIF
Functional Diagram General Description
P M The HMC516LC5 is a high dynamic range GaAs pHEMT MMIC Low Noise Amplifier (LNA) housed in E A a leadless “Pb free” RoHS compliant SMT package. The HMC516LC5 provides 20 dB of small signal IS gain, 2 dB of noise figure and has an output IP3 of O +25 dBm. The P1dB output power of +13 dBm enables the LNA to also function as a LO driver for balanced, W N I/Q or image reject mixers. The HMC516LC5 al ows the use of surface mount manufacturing techniques. LO
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +3V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 9 - 12 12 - 18 GHz Gain 17.5 20 18 20.5 dB Gain Variation Over Temperature 0.015 0.025 0.015 0.025 dB/ °C Noise Figure 2.0 2.5 2.0 2.5 dB Input Return Loss 10 10 dB Output Return Loss 12 12 dB Output Power for 1 dB Compression (P1dB) 13 14 dBm Saturated Output Power (Psat) 15 16 dBm Output Third Order Intercept (IP3) 25 25 dBm Supply Current (Idd)(Vdd = +3V) 65 88 65 88 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
