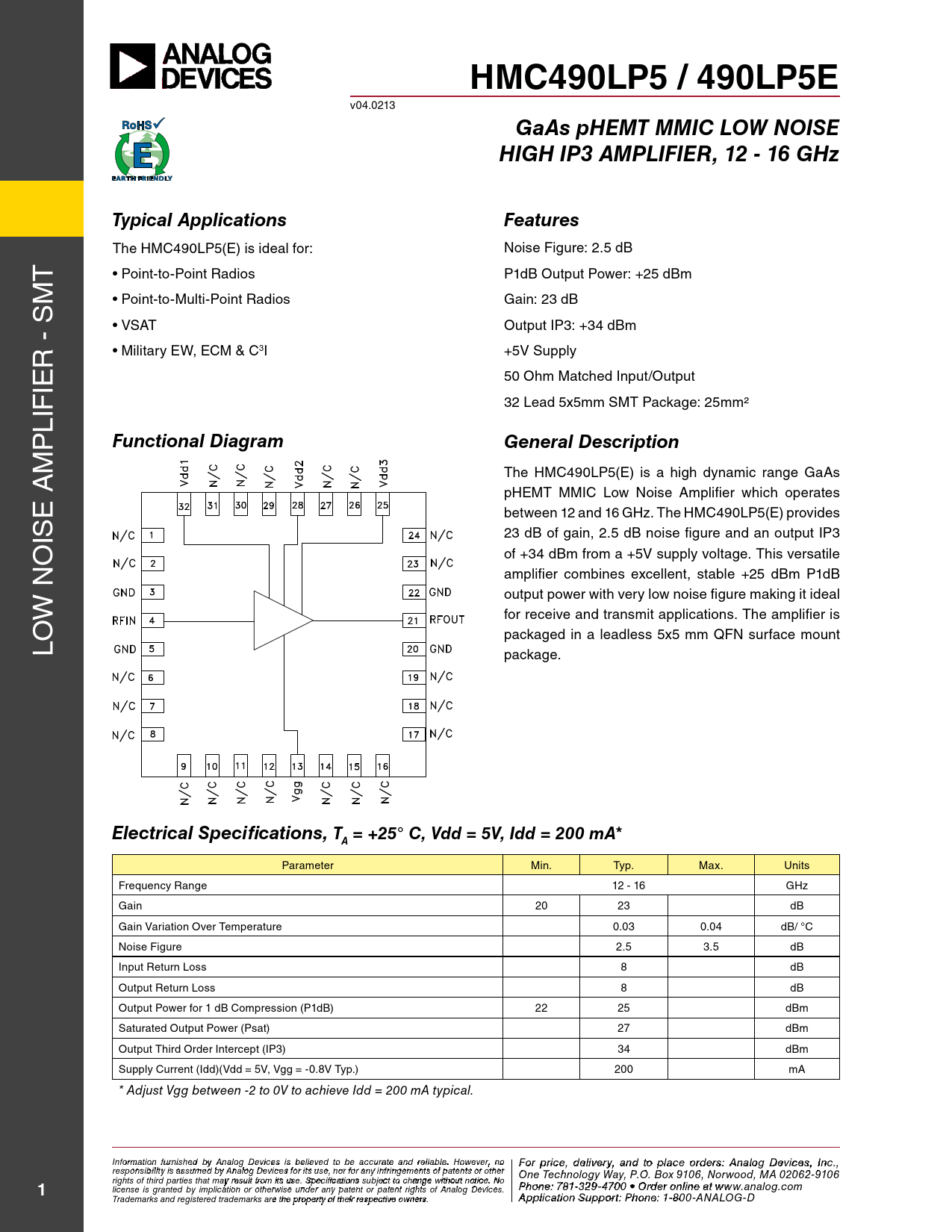

HMC490LP5 / 490LP5E
v04.0213
GaAs pHEMT MMIC LOW NOISE HIGH IP3 AMPLIFIER, 12 - 16 GHz Typical Applications Features
The HMC490LP5(E) is ideal for: Noise Figure: 2.5 dB T • Point-to-Point Radios P1dB Output Power: +25 dBm M • Point-to-Multi-Point Radios Gain: 23 dB • VSAT Output IP3: +34 dBm R - S • Military EW, ECM & C3I +5V Supply IE 50 Ohm Matched Input/Output 32 Lead 5x5mm SMT Package: 25mm² LIF P
Functional Diagram General Description
M The HMC490LP5(E) is a high dynamic range GaAs pHEMT MMIC Low Noise Amplifier which operates E A between 12 and 16 GHz. The HMC490LP5(E) provides IS 23 dB of gain, 2.5 dB noise figure and an output IP3 O of +34 dBm from a +5V supply voltage. This versatile amplifier combines excel ent, stable +25 dBm P1dB output power with very low noise figure making it ideal W N for receive and transmit applications. The amplifier is LO packaged in a leadless 5x5 mm QFN surface mount package.
Electrical Specifications, T = +25° C, Vdd = 5V, Idd = 200 mA* A
Parameter Min. Typ. Max. Units Frequency Range 12 - 16 GHz Gain 20 23 dB Gain Variation Over Temperature 0.03 0.04 dB/ °C Noise Figure 2.5 3.5 dB Input Return Loss 8 dB Output Return Loss 8 dB Output Power for 1 dB Compression (P1dB) 22 25 dBm Saturated Output Power (Psat) 27 dBm Output Third Order Intercept (IP3) 34 dBm Supply Current (Idd)(Vdd = 5V, Vgg = -0.8V Typ.) 200 mA * Adjust Vgg between -2 to 0V to achieve Idd = 200 mA typical. Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 p o lica rti a o p n S p u s p @ po h rt itt : P ite ho . n c e om : 1-800-ANALOG-D
