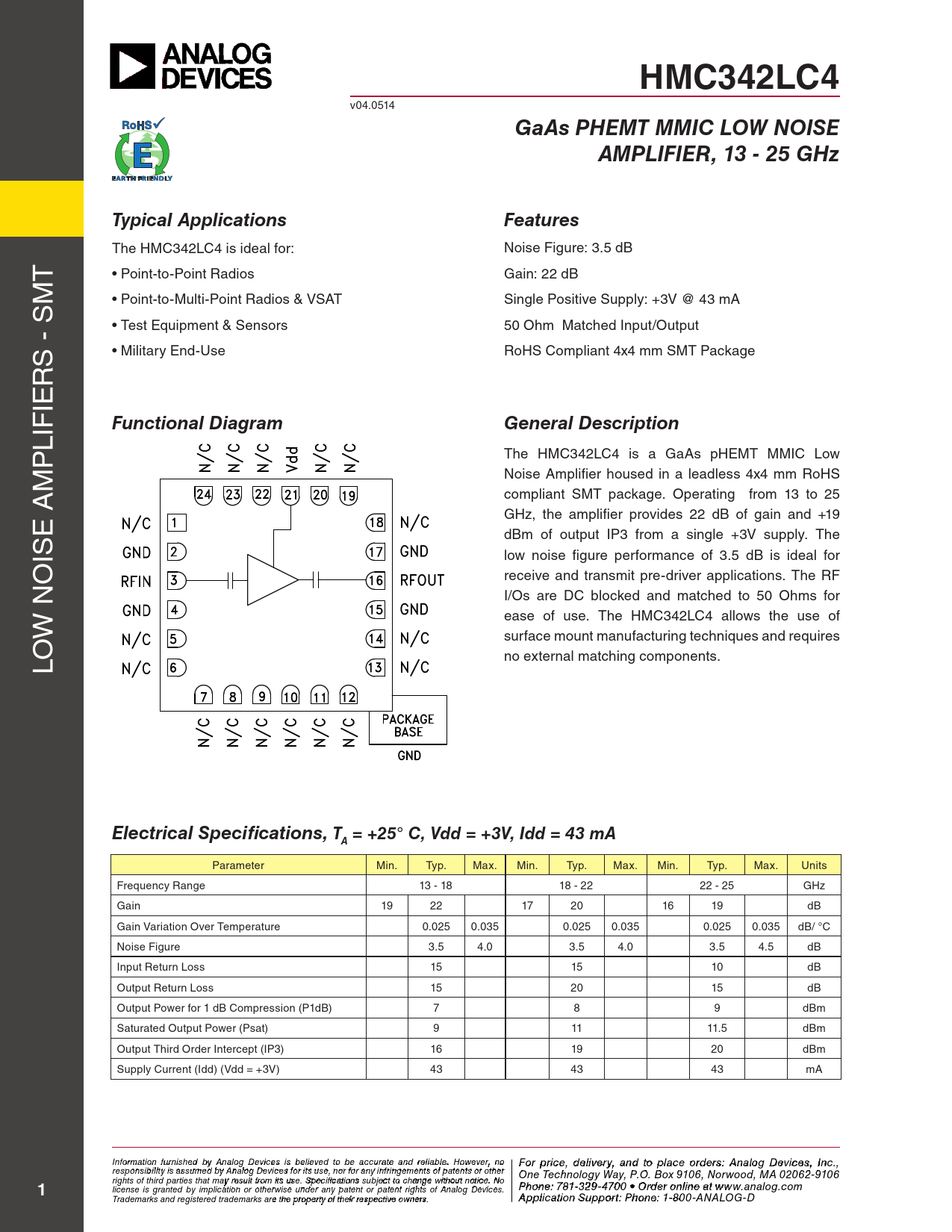

HMC342LC4
v04.0514
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 13 - 25 GHz Typical Applications Features
The HMC342LC4 is ideal for: Noise Figure: 3.5 dB T • Point-to-Point Radios Gain: 22 dB M • Point-to-Multi-Point Radios & VSAT Single Positive Supply: +3V @ 43 mA • Test Equipment & Sensors 50 Ohm Matched Input/Output S - S • Military End-Use RoHS Compliant 4x4 mm SMT Package R IE
Functional Diagram General Description
LIF P The HMC342LC4 is a GaAs pHEMT MMIC Low M Noise Amplifier housed in a leadless 4x4 mm RoHS compliant SMT package. Operating from 13 to 25 E A GHz, the amplifier provides 22 dB of gain and +19 dBm of output IP3 from a single +3V supply. The IS low noise figure performance of 3.5 dB is ideal for O receive and transmit pre-driver applications. The RF I/Os are DC blocked and matched to 50 Ohms for W N ease of use. The HMC342LC4 al ows the use of surface mount manufacturing techniques and requires LO no external matching components.
Electrical Specifications, T = +25° C, Vdd = +3V, Idd = 43 mA A
Parameter Min. Typ. Max. Min. Typ. Max. Min. Typ. Max. Units Frequency Range 13 - 18 18 - 22 22 - 25 GHz Gain 19 22 17 20 16 19 dB Gain Variation Over Temperature 0.025 0.035 0.025 0.035 0.025 0.035 dB/ °C Noise Figure 3.5 4.0 3.5 4.0 3.5 4.5 dB Input Return Loss 15 15 10 dB Output Return Loss 15 20 15 dB Output Power for 1 dB Compression (P1dB) 7 8 9 dBm Saturated Output Power (Psat) 9 11 11.5 dBm Output Third Order Intercept (IP3) 16 19 20 dBm Supply Current (Idd) (Vdd = +3V) 43 43 43 mA Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plica r a tio p n S p u s p @ po h rt itt : P ite ho . n c e o : 1m -800-ANALOG-D
