Descripción10 W (40 dBm), 0.01 GHz to 1.1 GHz, GaN Power Amplifier
Páginas / Página18 / 1 — 10 W (40 dBm), 0.01 GHz to 1.1 GHz,. GaN Power Amplifier. Data Sheet. …
RevisiónB
Formato / tamaño de archivoPDF / 326 Kb
Idioma del documentoInglés

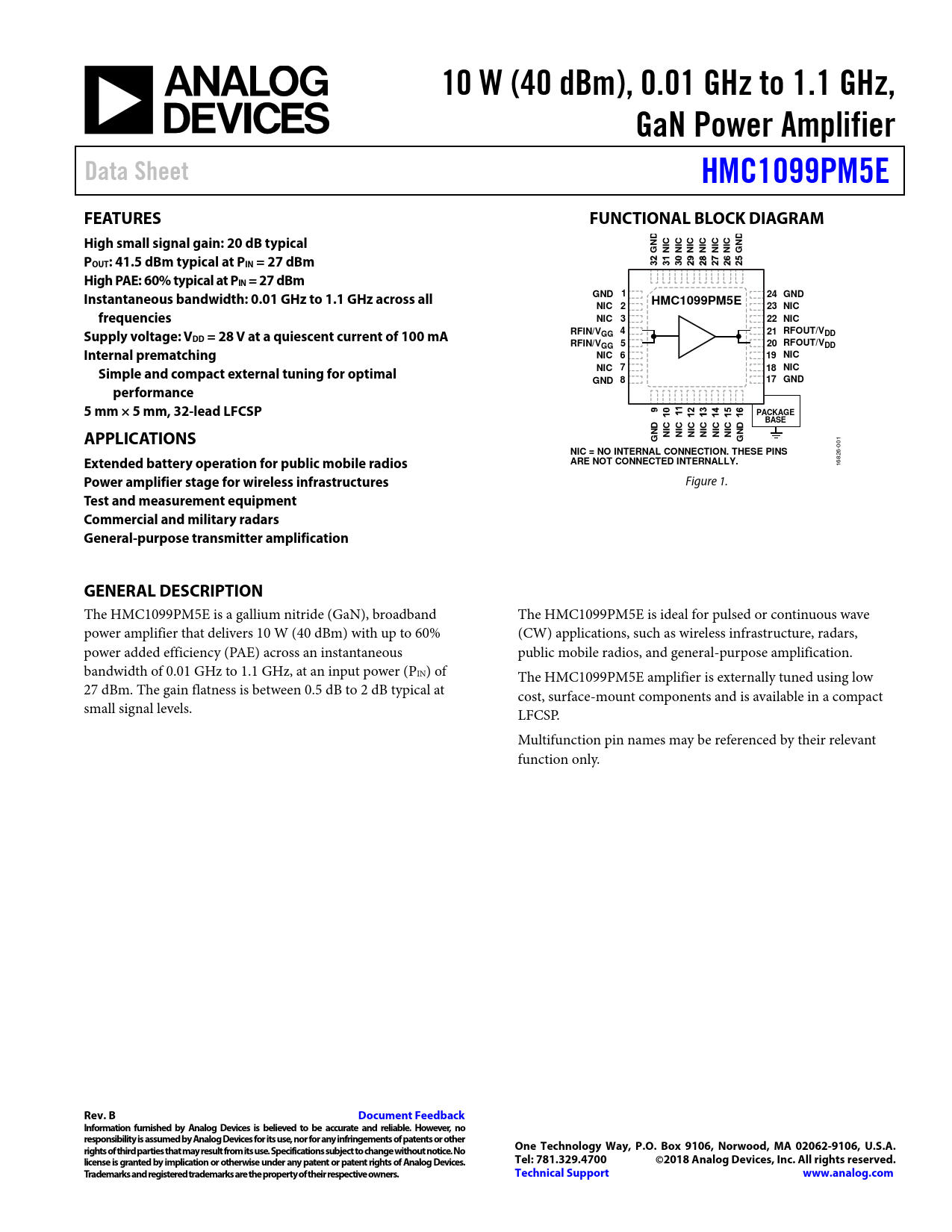

10 W (40 dBm), 0.01 GHz to 1.1 GHz,. GaN Power Amplifier. Data Sheet. HMC1099PM5E. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet HMC1099PM5E Analog Devices, Revisión: B

Línea de modelo para esta hoja de datos

Versión de texto del documento

10 W (40 dBm), 0.01 GHz to 1.1 GHz, GaN Power Amplifier Data Sheet HMC1099PM5E FEATURES FUNCTIONAL BLOCK DIAGRAM High small signal gain: 20 dB typical C C C C C C ND ND G NI NI NI NI NI NI G POUT: 41.5 dBm typical at PIN = 27 dBm High PAE: 60% typical at PIN = 27 dBm Instantaneous bandwidth: 0.01 GHz to 1.1 GHz across all GND 1 24 GND HMC1099PM5E NIC 2 23 NIC frequencies NIC 3 22 NIC Supply voltage: V RFIN/V 4 21 RFOUT/VDD DD = 28 V at a quiescent current of 100 mA GG RFIN/V 5 GG 20 RFOUT/VDD Internal prematching NIC 6 19 NIC Simple and compact external tuning for optimal NIC 7 18 NIC GND 8 17 GND performance 5 mm × 5 mm, 32-lead LFCSP PACKAGE BASE C C C C C C APPLICATIONS ND NI NI NI NI NI NI ND G G
001
NIC = NO INTERNAL CONNECTION. THESE PINS Extended battery operation for public mobile radios ARE NOT CONNECTED INTERNALLY.
16826-
Power amplifier stage for wireless infrastructures
Figure 1.
Test and measurement equipment Commercial and military radars General-purpose transmitter amplification GENERAL DESCRIPTION
The HMC1099PM5E is a gallium nitride (GaN), broadband The HMC1099PM5E is ideal for pulsed or continuous wave power amplifier that delivers 10 W (40 dBm) with up to 60% (CW) applications, such as wireless infrastructure, radars, power added efficiency (PAE) across an instantaneous public mobile radios, and general-purpose amplification. bandwidth of 0.01 GHz to 1.1 GHz, at an input power (PIN) of The HMC1099PM5E amplifier is externally tuned using low 27 dBm. The gain flatness is between 0.5 dB to 2 dB typical at cost, surface-mount components and is available in a compact small signal levels. LFCSP. Multifunction pin names may be referenced by their relevant function only.
