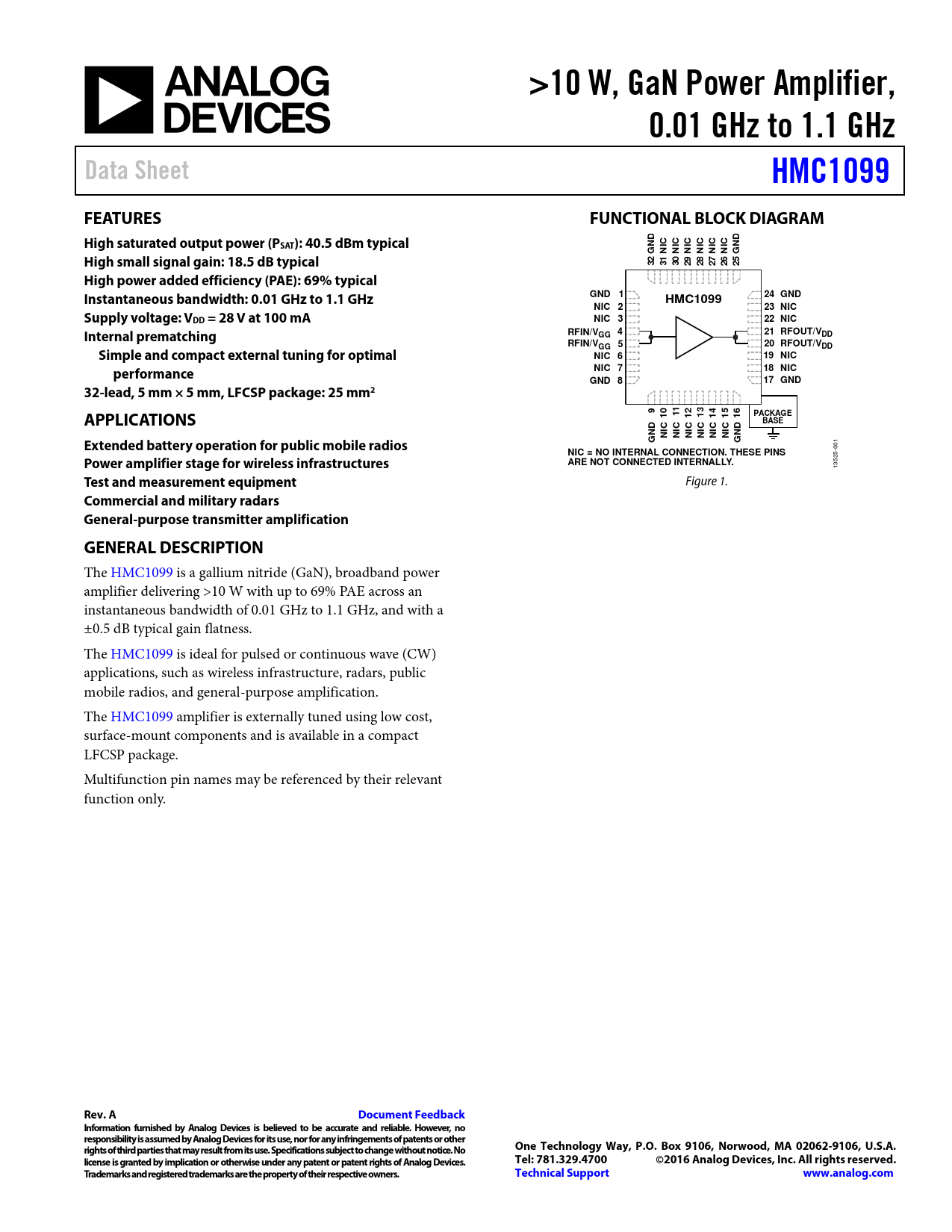

>10 W, GaN Power Amplifier,. 0.01 GHz to 1.1 GHz. Data Sheet. HMC1099. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet HMC1099 Analog Devices, Revisión: A

Línea de modelo para esta hoja de datos

Versión de texto del documento

>10 W, GaN Power Amplifier, 0.01 GHz to 1.1 GHz Data Sheet HMC1099 FEATURES FUNCTIONAL BLOCK DIAGRAM High saturated output power (P D D SAT): 40.5 dBm typical N IC IC IC IC IC IC N G N N N N N N G High small signal gain: 18.5 dB typical 2 1 0 9 8 7 6 5 3 3 3 2 2 2 2 2 High power added efficiency (PAE): 69% typical Instantaneous bandwidth: 0.01 GHz to 1.1 GHz GND 1 24 GND HMC1099 NIC 2 23 NIC Supply voltage: VDD = 28 V at 100 mA NIC 3 22 NIC Internal prematching RFIN/V 4 GG 21 RFOUT/VDD RFIN/V 5 GG 20 RFOUT/VDD Simple and compact external tuning for optimal NIC 6 19 NIC performance NIC 7 18 NIC GND 8 17 GND 32-lead, 5 mm × 5 mm, LFCSP package: 25 mm2 9 0 1 3 APPLICATIONS 2 1 4 5 6 1 1 1 1 1 1 PACKAGE BASE ND IC IC IC IC IC IC N N N N N N ND Extended battery operation for public mobile radios G G
1 0 -0 5
NIC = NO INTERNAL CONNECTION. THESE PINS Power amplifier stage for wireless infrastructures
2
ARE NOT CONNECTED INTERNALLY.
35 1
Test and measurement equipment
Figure 1.
Commercial and military radars General-purpose transmitter amplification GENERAL DESCRIPTION
The HMC1099 is a gallium nitride (GaN), broadband power amplifier delivering >10 W with up to 69% PAE across an instantaneous bandwidth of 0.01 GHz to 1.1 GHz, and with a ±0.5 dB typical gain flatness. The HMC1099 is ideal for pulsed or continuous wave (CW) applications, such as wireless infrastructure, radars, public mobile radios, and general-purpose amplification. The HMC1099 amplifier is externally tuned using low cost, surface-mount components and is available in a compact LFCSP package. Multifunction pin names may be referenced by their relevant function only.
