Datasheet HMC7229LS6 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | GaAs, pHEMT, MMIC, 1 W, Power Amplifier with Power Detector, 37 GHz to 40 GHz |
| Páginas / Página | 15 / 4 — HMC7229LS6. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter … |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 328 Kb |
| Idioma del documento | Inglés |

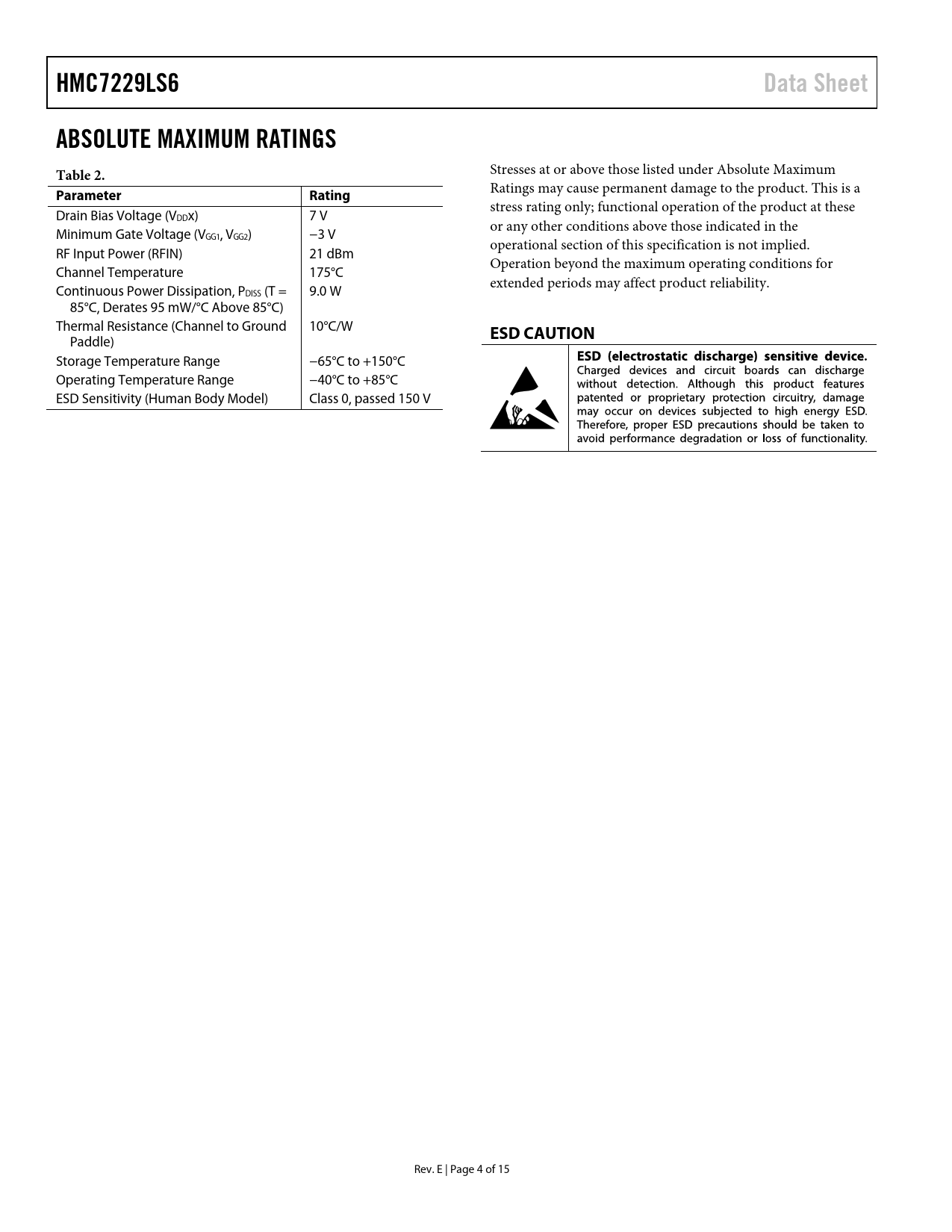

HMC7229LS6. Data Sheet. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC7229LS6 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Drain Bias Voltage (VDDx) 7 V or any other conditions above those indicated in the Minimum Gate Voltage (VGG1, VGG2) −3 V operational section of this specification is not implied. RF Input Power (RFIN) 21 dBm Operation beyond the maximum operating conditions for Channel Temperature 175°C extended periods may affect product reliability. Continuous Power Dissipation, PDISS (T = 9.0 W 85°C, Derates 95 mW/°C Above 85°C) Thermal Resistance (Channel to Ground 10°C/W
ESD CAUTION
Paddle) Storage Temperature Range −65°C to +150°C Operating Temperature Range −40°C to +85°C ESD Sensitivity (Human Body Model) Class 0, passed 150 V Rev. E | Page 4 of 15 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION RECOMMENDED BIAS SEQUENCE During Power-Up During Power-Down EVALUATION PRINTED CIRCUIT BOARD (PCB) TYPICAL APPLICATION CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE
