Datasheet ADL6010 (Analog Devices)

FabricanteAnalog Devices
DescripciónFast Responding, 45 dB Range, 0.5 GHz to 43.5 GHz Envelope Detector
Páginas / Página23 / 1 — Fast Responding, 45 dB Range,. 0.5 GHz to 43.5 GHz Envelope Detector. …
RevisiónE
Formato / tamaño de archivoPDF / 1.5 Mb
Idioma del documentoInglés

Fast Responding, 45 dB Range,. 0.5 GHz to 43.5 GHz Envelope Detector. Data Sheet. ADL6010. FEATURES. FUNCTIONAL BLOCK DIAGRAM

Datasheet ADL6010 Analog Devices, Revisión: E

Línea de modelo para esta hoja de datos

Versión de texto del documento

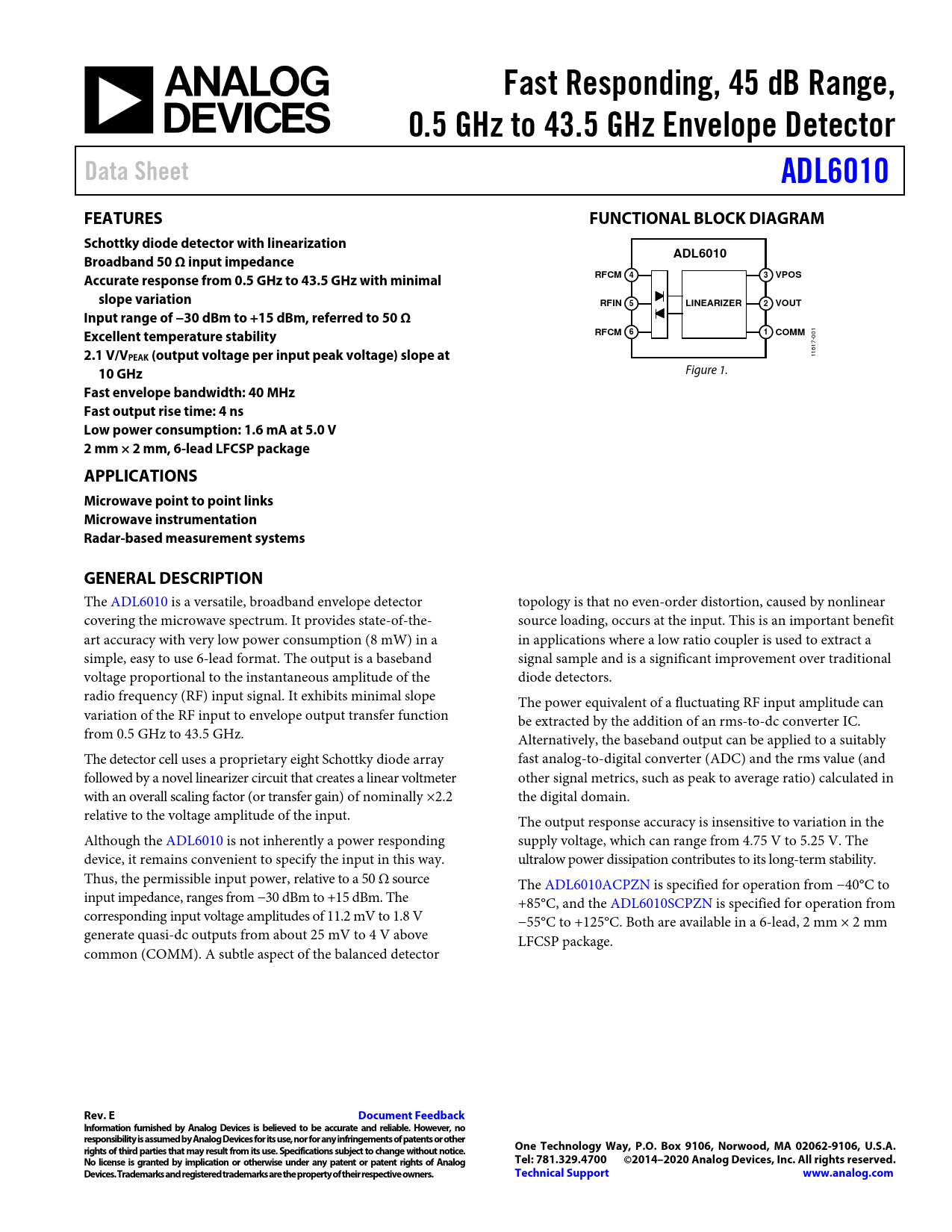

Fast Responding, 45 dB Range, 0.5 GHz to 43.5 GHz Envelope Detector Data Sheet ADL6010 FEATURES FUNCTIONAL BLOCK DIAGRAM Schottky diode detector with linearization Broadband 50 Ω input impedance ADL6010 Accurate response from 0.5 GHz to 43.5 GHz with minimal RFCM 4 3 VPOS slope variation RFIN 5 LINEARIZER 2 VOUT Input range of −30 dBm to +15 dBm, referred to 50 Ω Excellent temperature stability RFCM 6 1 COMM
001
2.1 V/V
1617-
PEAK (output voltage per input peak voltage) slope at
1
10 GHz
Figure 1.
Fast envelope bandwidth: 40 MHz Fast output rise time: 4 ns Low power consumption: 1.6 mA at 5.0 V 2 mm × 2 mm, 6-lead LFCSP package APPLICATIONS Microwave point to point links Microwave instrumentation Radar-based measurement systems GENERAL DESCRIPTION
The ADL6010 is a versatile, broadband envelope detector topology is that no even-order distortion, caused by nonlinear covering the microwave spectrum. It provides state-of-the- source loading, occurs at the input. This is an important benefit art accuracy with very low power consumption (8 mW) in a in applications where a low ratio coupler is used to extract a simple, easy to use 6-lead format. The output is a baseband signal sample and is a significant improvement over traditional voltage proportional to the instantaneous amplitude of the diode detectors. radio frequency (RF) input signal. It exhibits minimal slope The power equivalent of a fluctuating RF input amplitude can variation of the RF input to envelope output transfer function be extracted by the addition of an rms-to-dc converter IC. from 0.5 GHz to 43.5 GHz. Alternatively, the baseband output can be applied to a suitably The detector cell uses a proprietary eight Schottky diode array fast analog-to-digital converter (ADC) and the rms value (and followed by a novel linearizer circuit that creates a linear voltmeter other signal metrics, such as peak to average ratio) calculated in with an overal scaling factor (or transfer gain) of nominally ×2.2 the digital domain. relative to the voltage amplitude of the input. The output response accuracy is insensitive to variation in the Although the ADL6010 is not inherently a power responding supply voltage, which can range from 4.75 V to 5.25 V. The device, it remains convenient to specify the input in this way. ultralow power dissipation contributes to its long-term stability. Thus, the permissible input power, relative to a 50 Ω source The ADL6010ACPZN is specified for operation from −40°C to input impedance, ranges from −30 dBm to +15 dBm. The +85°C, and the ADL6010SCPZN is specified for operation from corresponding input voltage amplitudes of 11.2 mV to 1.8 V −55°C to +125°C. Both are available in a 6-lead, 2 mm × 2 mm generate quasi-dc outputs from about 25 mV to 4 V above LFCSP package. common (COMM). A subtle aspect of the balanced detector
Rev. E Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. No license is granted by implication or otherwise under any patent or patent rights of Analog Tel: 781.329.4700 ©2014–2020 Analog Devices, Inc. All rights reserved. Devices. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS MEASUREMENT SETUPS THEORY OF OPERATION BASIC CONNECTIONS PCB LAYOUT RECOMMENDATIONS SYSTEM CALIBRATION AND ERROR CALCULATION EFFECT OF A CAPACITIVE LOAD ON RISE TIME AND FALL TIME EVALUATION BOARD EVALUATION BOARD ASSEMBLY DRAWINGS OUTLINE DIMENSIONS ORDERING GUIDE
