HMC948LP3E. 54 dB, LOGARITHMIC. DETECTOR, 1 - 23 GHz. Absolute Maximum Ratings. Outline Drawing. Package Information
Línea de modelo para esta hoja de datos
Versión de texto del documento

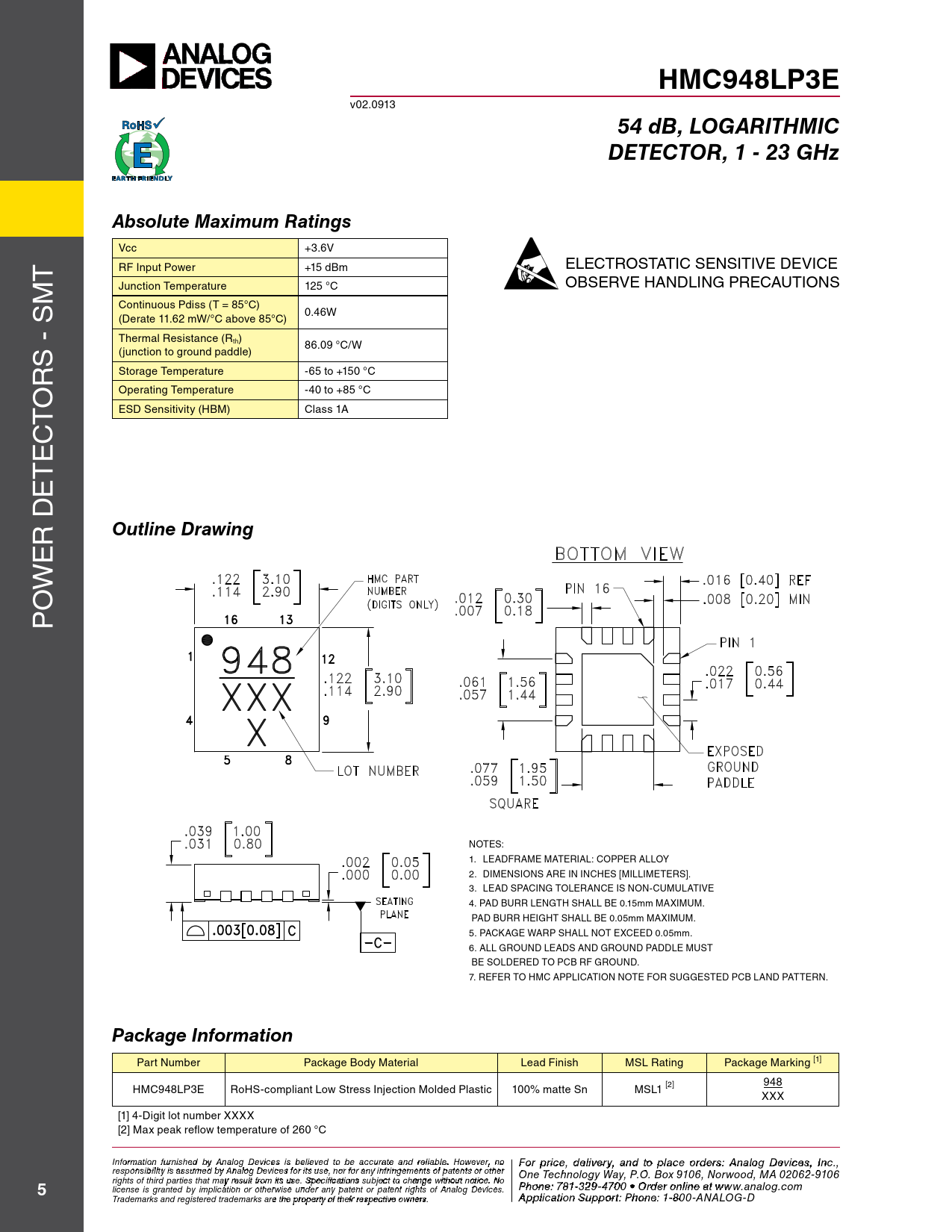

HMC948LP3E
v02.0913
54 dB, LOGARITHMIC DETECTOR, 1 - 23 GHz Absolute Maximum Ratings
Vcc +3.6V T RF Input Power +15 dBm ELECTROSTATIC SENSITIVE DEVICE M Junction Temperature 125 °C OBSERVE HANDLING PRECAUTIONS Continuous Pdiss (T = 85°C) S 0.46W (Derate 11.62 mW/°C above 85°C) - Thermal Resistance (R ) th 86.09 °C/W (junction to ground paddle) RS Storage Temperature -65 to +150 °C O Operating Temperature -40 to +85 °C T ESD Sensitivity (HBM) Class 1A C TE E D R
Outline Drawing
WE O P NOTES: 1. LEADFRAME MATERIAL: COPPER ALLOY 2. DIMENSIONS ARE IN INCHES [MILLIMETERS]. 3. LEAD SPACING TOLERANCE IS NON-CUMULATIVE 4. PAD BURR LENGTH SHALL BE 0.15mm MAXIMUM. PAD BURR HEIGHT SHALL BE 0.05mm MAXIMUM. 5. PACKAGE WARP SHALL NOT EXCEED 0.05mm. 6. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND. 7. REFER TO HMC APPLICATION NOTE FOR SUGGESTED PCB LAND PATTERN.
Package Information
Part Number Package Body Material Lead Finish MSL Rating Package Marking [1] HMC948LP3E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL1 [2] 948 XXX [1] 4-Digit lot number XXXX [2] Max peak reflow temperature of 260 °C Inf F or o m r p atio r n ifc ur e n , d ishe e d lbiv y e A r n y a alog n D d t evic o p es is la beclie o eved rd to ebre sa: H ccur iattti e tae M nd re ilicarbloew . H a o ve C wever, o n rp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No P rd hone e r O : 7 n 81- -3li 2n 9 e a -47 t w 0 w 0 • O w rd .h e it r o t niltie n .c e ao t m
5
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 p o lica rti a o p n S p u s p @ po h rt itt : P ite ho . n c e om : 1-800-ANALOG-D
