HMC600LP4 / 600LP4E. 75 dB LOGARITHMIC. DETECTOR / CONTROLLER 50 - 4000 MHz. Typical Applications. Features. General Description

Datasheet HMC600LP4, 600LP4E Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

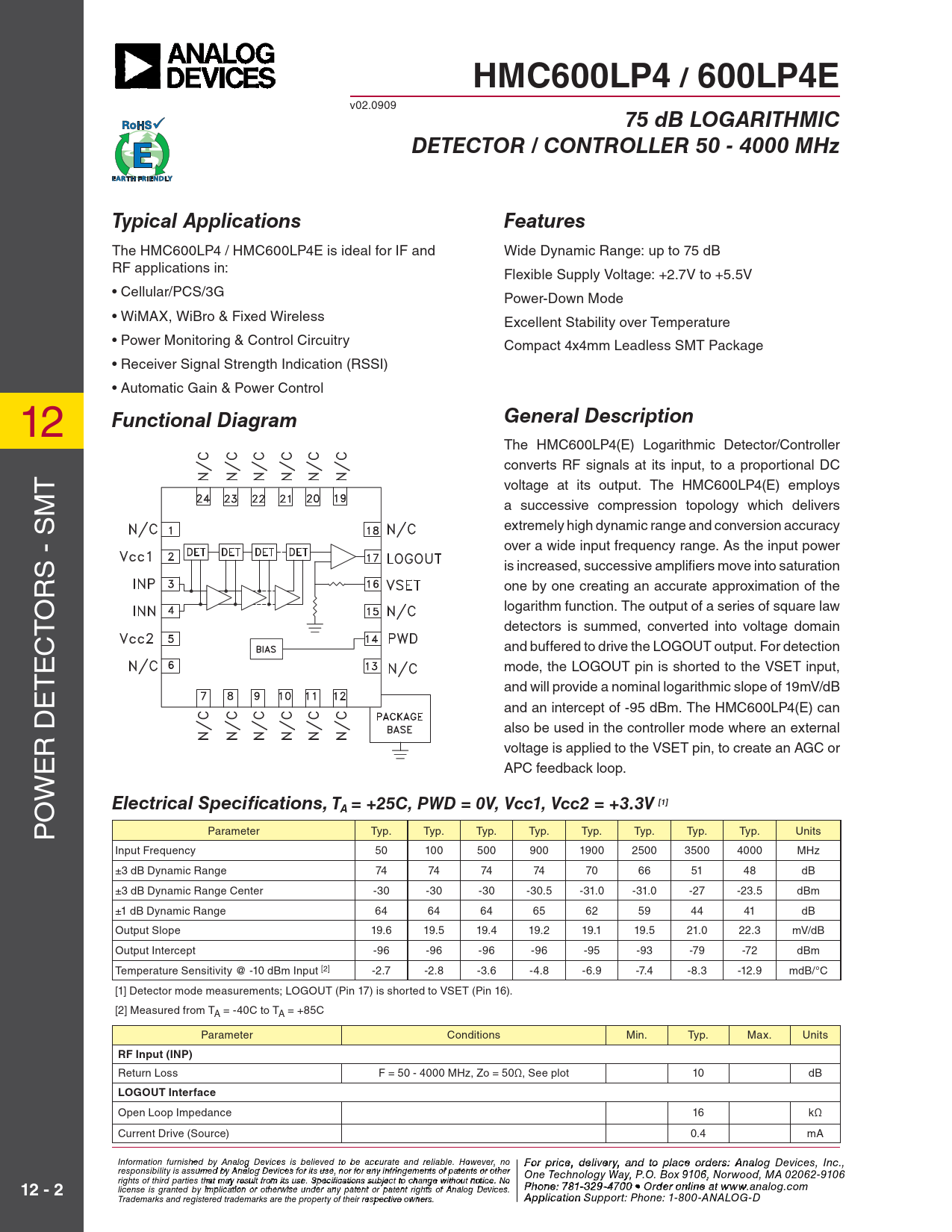

HMC600LP4 / 600LP4E
v02.0909
75 dB LOGARITHMIC DETECTOR / CONTROLLER 50 - 4000 MHz Typical Applications Features
The HMC600LP4 / HMC600LP4E is ideal for IF and Wide Dynamic Range: up to 75 dB RF applications in: Flexible Supply Voltage: +2.7V to +5.5V • Cellular/PCS/3G Power-Down Mode • WiMAX, WiBro & Fixed Wireless Excellent Stability over Temperature • Power Monitoring & Control Circuitry Compact 4x4mm Leadless SMT Package • Receiver Signal Strength Indication (RSSI) • Automatic Gain & Power Control 12
General Description Functional Diagram
The HMC600LP4(E) Logarithmic Detector/Controller converts RF signals at its input, to a proportional DC T voltage at its output. The HMC600LP4(E) employs a successive compression topology which delivers extremely high dynamic range and conversion accuracy over a wide input frequency range. As the input power S - SM is increased, successive amplifi ers move into saturation R one by one creating an accurate approximation of the O logarithm function. The output of a series of square law T detectors is summed, converted into voltage domain C and buffered to drive the LOGOUT output. For detection E mode, the LOGOUT pin is shorted to the VSET input, T and will provide a nominal logarithmic slope of 19mV/dB E and an intercept of -95 dBm. The HMC600LP4(E) can also be used in the controller mode where an external R D voltage is applied to the VSET pin, to create an AGC or E APC feedback loop. W O
Electrical Specifi cations, TA = +25C, PWD = 0V, Vcc1, Vcc2 = +3.3V [1]
P Parameter Typ. Typ. Typ. Typ. Typ. Typ. Typ. Typ. Units Input Frequency 50 100 500 900 1900 2500 3500 4000 MHz ±3 dB Dynamic Range 74 74 74 74 70 66 51 48 dB ±3 dB Dynamic Range Center -30 -30 -30 -30.5 -31.0 -31.0 -27 -23.5 dBm ±1 dB Dynamic Range 64 64 64 65 62 59 44 41 dB Output Slope 19.6 19.5 19.4 19.2 19.1 19.5 21.0 22.3 mV/dB Output Intercept -96 -96 -96 -96 -95 -93 -79 -72 dBm Temperature Sensitivity @ -10 dBm Input [2] -2.7 -2.8 -3.6 -4.8 -6.9 -7.4 -8.3 -12.9 mdB/°C [1] Detector mode measurements; LOGOUT (Pin 17) is shorted to VSET (Pin 16). [2] Measured from TA = -40C to TA = +85C Parameter Conditions Min. Typ. Max. Units
RF Input (INP)
Return Loss F = 50 - 4000 MHz, Zo = 50Ω, See plot 10 dB
LOGOUT Interface
Open Loop Impedance 16 kΩ Current Drive (Source) 0.4 mA Information furnis F heod r pri by An ce, de alog Devi lcievs eir s y b , a eliev nd to pla ed to be accu ce o rate anrder d relia sbl, pl e. H ease co owever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone: 978 rights of third parties that may result from its use. Specifications subject to change without notice. No Ph - o 25 ne 0 : 7 -3 81- 3 3 4 29 3 F -470 ax: 978 0 • Orde - r o 25 nlin 0- e a3 t 373
12 - 2
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Order On-l Trademarks and registered trademarks are the property of their respective owners. ine at www.hit A ti p te.co plicati m on Support: Phone: 1-800-ANALOG-D
