Datasheet AD8276, AD8277 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | Low Power, Wide Supply Range, Low Cost Unity-Gain Difference Amplifiers |
| Páginas / Página | 22 / 6 — AD8276/. AD8277. Data Sheet. PIN CONFIGURATIONS AND FUNCTION … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 485 Kb |
| Idioma del documento | Inglés |
AD8276/. AD8277. Data Sheet. PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS. REF. –IN. AD8276. +VS. TOP VIEW. +IN. OUT. (Not to Scale). –VS. SENSE
Línea de modelo para esta hoja de datos
Versión de texto del documento

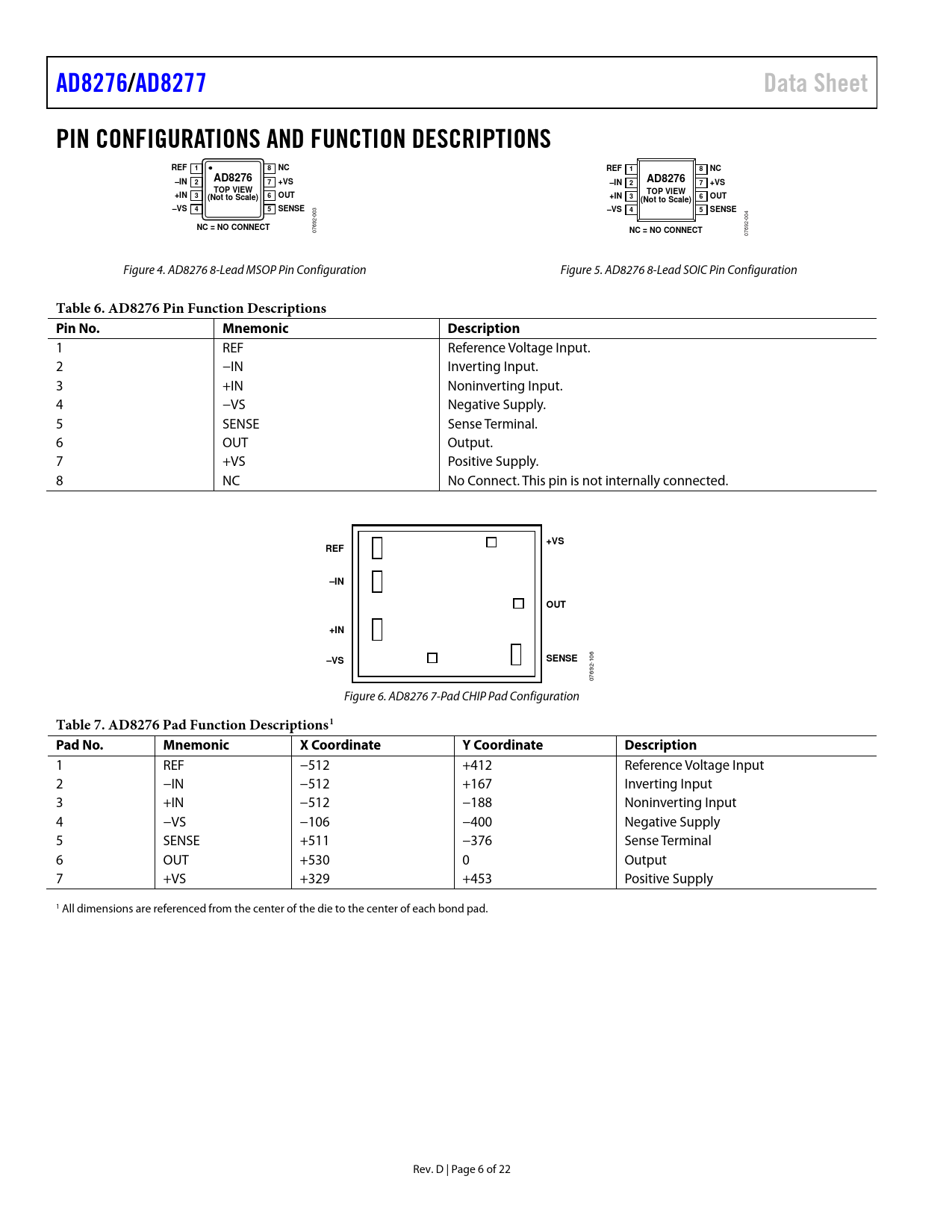

AD8276/ AD8277 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS REF 1 8 NC REF 1 8 NC –IN AD8276 AD8276 2 7 +VS –IN 2 7 +VS TOP VIEW +IN TOP VIEW 3 6 OUT (Not to Scale) +IN 3 6 OUT (Not to Scale) –VS 4 5 SENSE –VS 4 5 SENSE
003 004
NC = NO CONNECT
07692-
NC = NO CONNECT
07692- Figure 4. AD8276 8-Lead MSOP Pin Configuration Figure 5. AD8276 8-Lead SOIC Pin Configuration
Table 6. AD8276 Pin Function Descriptions Pin No. Mnemonic Description
1 REF Reference Voltage Input. 2 −IN Inverting Input. 3 +IN Noninverting Input. 4 −VS Negative Supply. 5 SENSE Sense Terminal. 6 OUT Output. 7 +VS Positive Supply. 8 NC No Connect. This pin is not internally connected.
+VS REF –IN OUT +IN SENSE –VS
106 07692- Figure 6. AD8276 7-Pad CHIP Pad Configuration
Table 7. AD8276 Pad Function Descriptions1 Pad No. Mnemonic X Coordinate Y Coordinate Description
