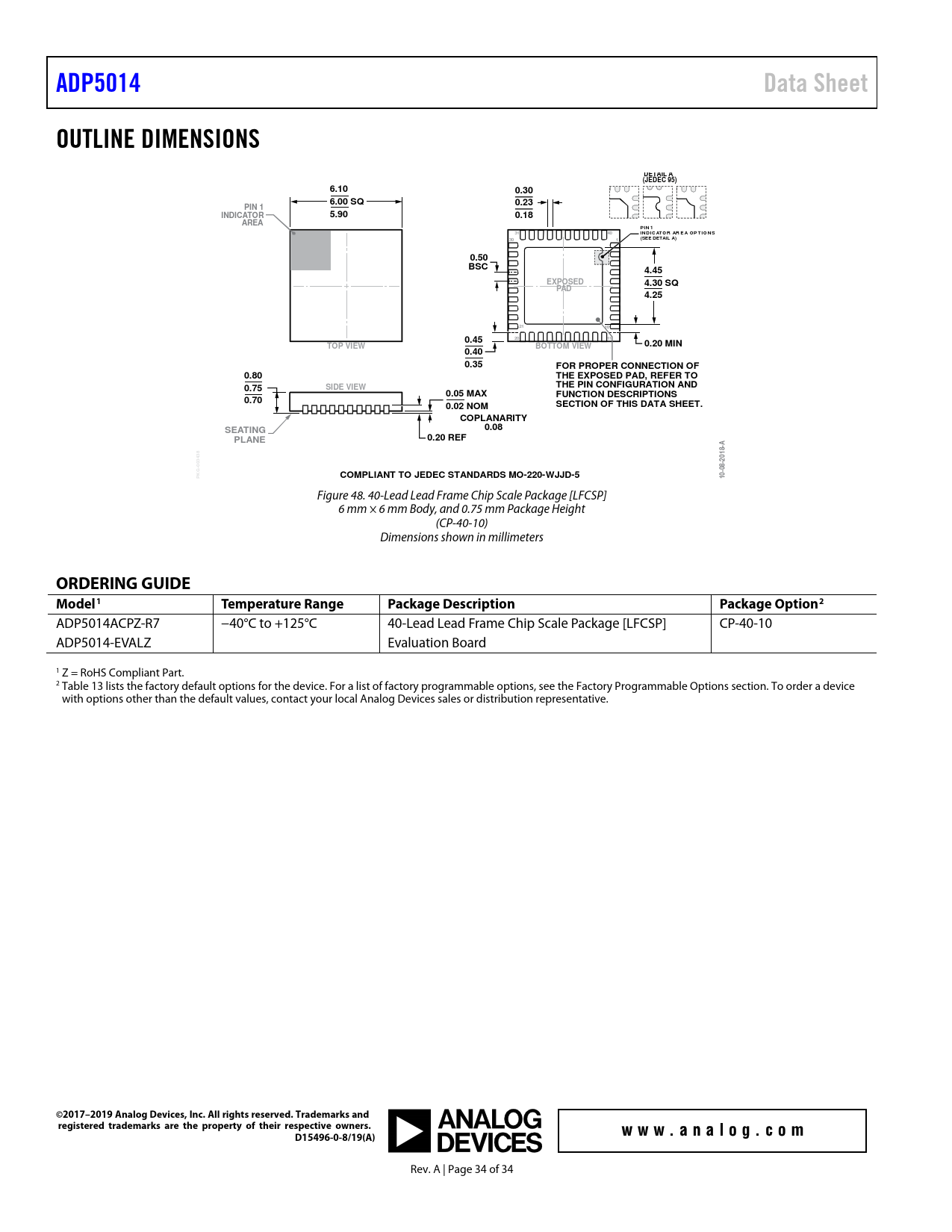

ADP5014 Data Sheet OUTLINE DIMENSIONS DETAIL A (JEDEC 95) 6.10 0.30 6.00 SQ 0.23 PIN 1 INDICATOR 5.90 0.18 AREA P IN 1 31 40 IN D IC AT O R AR E A OP T IO N S 30 1 (SEE DETAIL A) 0.50 BSC 4.45 EXPOSED 4.30 SQ PAD 4.25 21 10 0.45 20 11 TOP VIEW BOTTOM VIEW 0.20 MIN 0.40 0.35 FOR PROPER CONNECTION OF 0.80 THE EXPOSED PAD, REFER TO SIDE VIEW 0.75 THE PIN CONFIGURATION AND 0.05 MAX FUNCTION DESCRIPTIONS 0.70 0.02 NOM SECTION OF THIS DATA SHEET. COPLANARITY 0.08 SEATING PLANE 0.20 REF A 2018- -003438 08- G K P COMPLIANT TO JEDEC STANDARDS MO-220-WJJD-5 10-
Figure 48. 40-Lead Lead Frame Chip Scale Package [LFCSP] 6 mm × 6 mm Body, and 0.75 mm Package Height (CP-40-10) Dimensions shown in millimeters
ORDERING GUIDE Model1 Temperature Range Package Description Package Option2
ADP5014ACPZ-R7 −40°C to +125°C 40-Lead Lead Frame Chip Scale Package [LFCSP] CP-40-10 ADP5014-EVALZ Evaluation Board 1 Z = RoHS Compliant Part. 2 Table 13 lists the factory default options for the device. For a list of factory programmable options, see the Factory Programmable Options section. To order a device with options other than the default values, contact your local Analog Devices sales or distribution representative.
©2017–2019 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. D15496-0-8/19(A)
