Datasheet TSV7721, TSV7722, TSV7723 (STMicroelectronics) - 10
| Fabricante | STMicroelectronics |
| Descripción | High bandwidth (22 MHz) low offset (200 μV) 5 V op amp |
| Páginas / Página | 33 / 10 — TSV7721, TSV7722, TSV7723. Typical performance characteristics. Figure 5. … |
| Formato / tamaño de archivo | PDF / 4.5 Mb |
| Idioma del documento | Inglés |

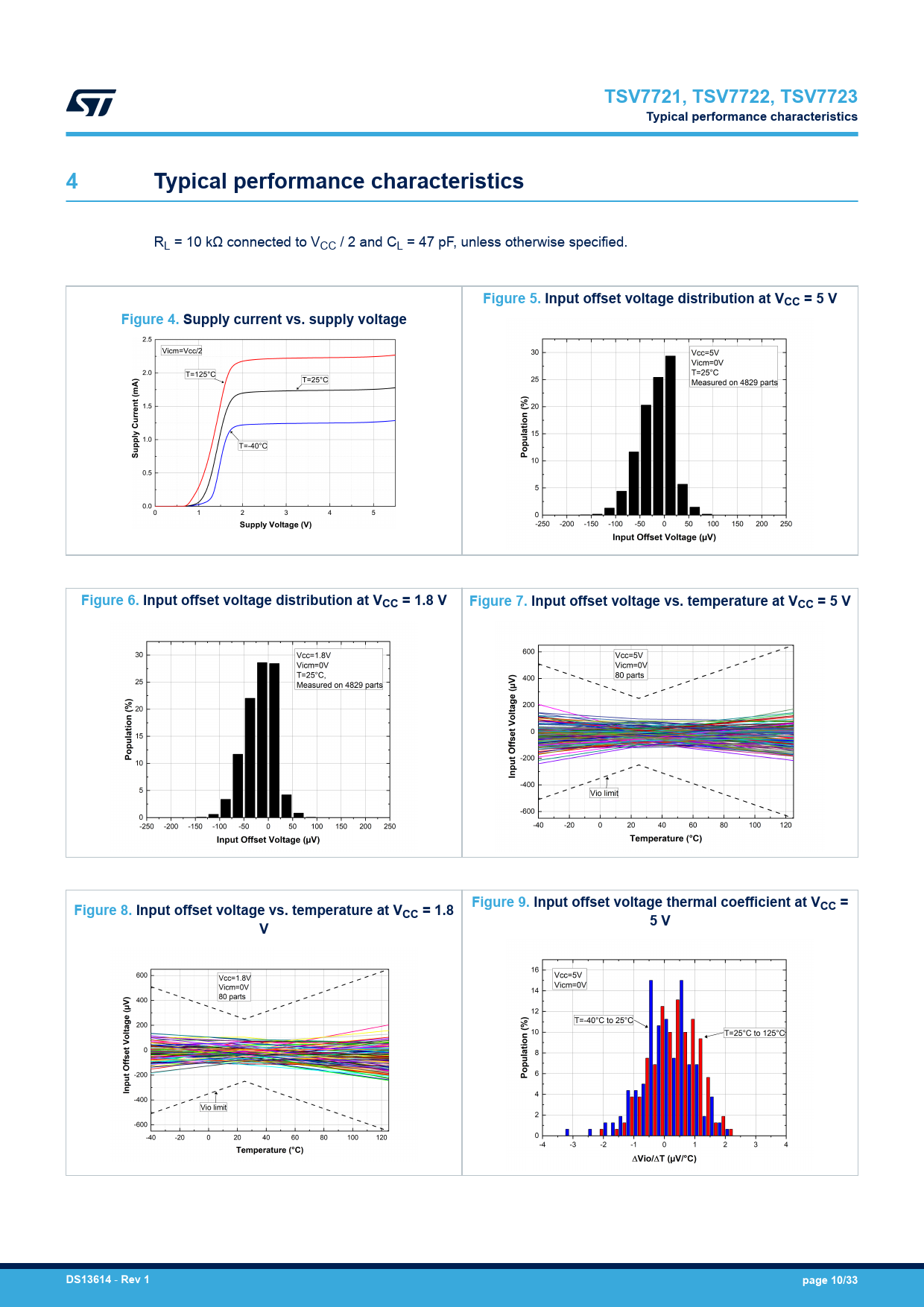

TSV7721, TSV7722, TSV7723. Typical performance characteristics. Figure 5. Input offset voltage distribution at VCC = 5 V
Línea de modelo para esta hoja de datos
Versión de texto del documento
TSV7721, TSV7722, TSV7723 Typical performance characteristics 4 Typical performance characteristics
RL = 10 kΩ connected to VCC / 2 and CL = 47 pF, unless otherwise specified.
Figure 5. Input offset voltage distribution at VCC = 5 V Figure 4. Supply current vs. supply voltage Figure 6. Input offset voltage distribution at VCC = 1.8 V Figure 7. Input offset voltage vs. temperature at VCC = 5 V Figure 9. Input offset voltage thermal coefficient at V Figure 8. Input offset voltage vs. temperature at V CC = CC = 1.8 5 V V DS13614
-
Rev 1 page 10/33
