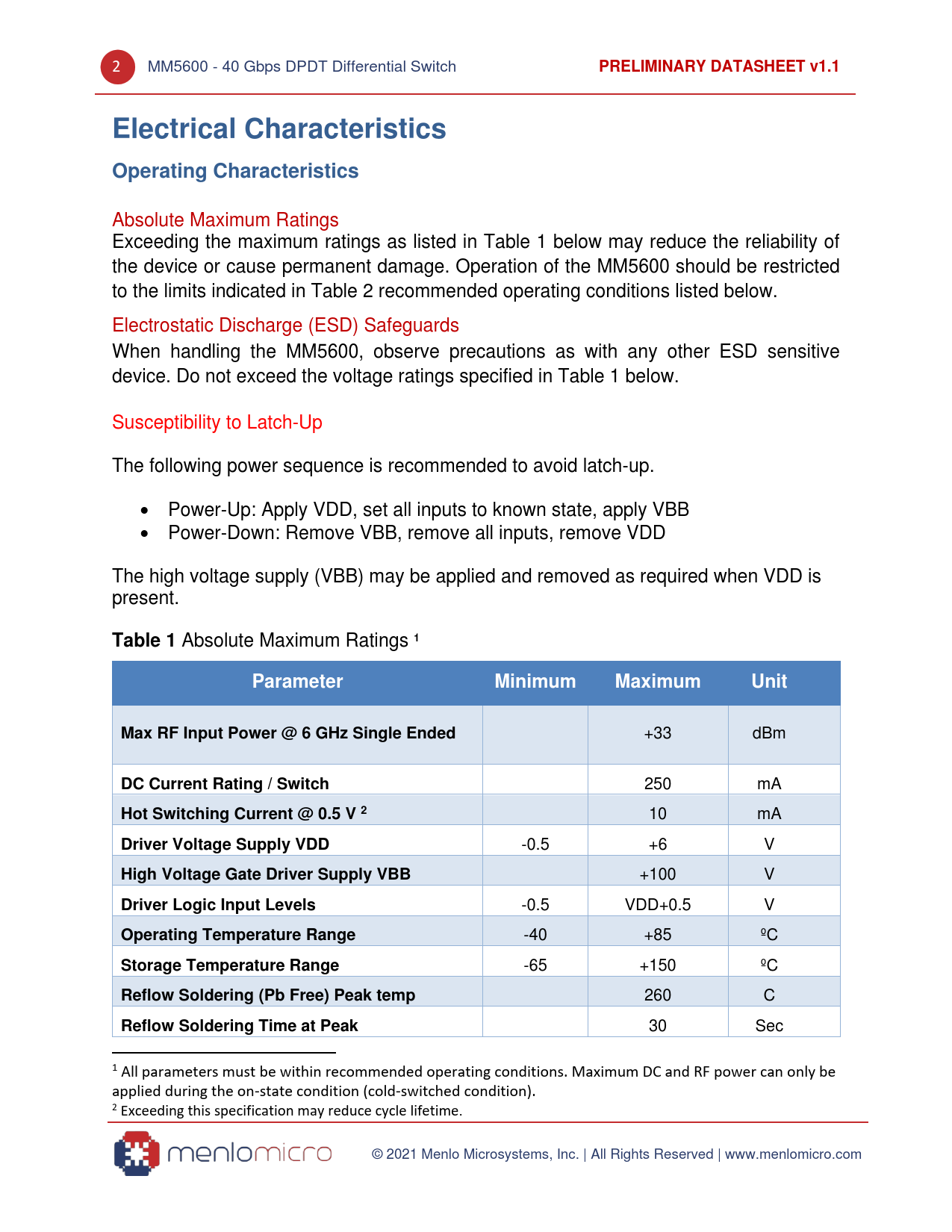

2 MM5600 - 40 Gbps DPDT Differential Switch
PRELIMINARY DATASHEET v1.1 Electrical Characteristics Operating Characteristics
Absolute Maximum Ratings

Exceeding the maximum ratings as listed in Table 1 below may reduce the reliability of the device or cause permanent damage. Operation of the MM5600 should be restricted to the limits indicated in Table 2 recommended operating conditions listed below. Electrostatic Discharge (ESD) Safeguards When handling the MM5600, observe precautions as with any other ESD sensitive device. Do not exceed the voltage ratings specified in Table 1 below. Susceptibility to Latch-Up The following power sequence is recommended to avoid latch-up. • Power-Up: Apply VDD, set all inputs to known state, apply VBB • Power-Down: Remove VBB, remove all inputs, remove VDD The high voltage supply (VBB) may be applied and removed as required when VDD is present.
Table 1
Absolute

Maximum Ratings
1 Parameter Minimum Maximum Unit Max RF Input Power @ 6 GHz Single Ended
+33 dBm
DC Current Rating / Switch
250 mA
Hot Switching Current @ 0.5 V 2
10 mA
Driver Voltage Supply VDD
-0.5 +6 V
High Voltage Gate Driver Supply VBB
+100 V
Driver Logic Input Levels
-0.5 VDD+0.5 V
Operating Temperature Range
-40 +85 ºC
Storage Temperature Range
-65 +150 ºC
Reflow Soldering (Pb Free) Peak temp
260 C
Reflow Soldering Time at Peak
30 Sec 1 All parameters must be within recommended operating conditions. Maximum DC and RF power can only be applied during the on-state condition (cold-switched condition). 2 Exceeding this specification may reduce cycle lifetime. © 2021 Menlo Microsystems, Inc. | All Rights Reserved | www.menlomicro.com
