Datasheet MAX6511, MAX6512, MAX6513 (Maxim) - 2
| Fabricante | Maxim |
| Descripción | Low-Cost, Remote SOT Temperature Switches |
| Páginas / Página | 8 / 2 — Low-Cost, Remote SOT Temperature Switches. ABSOLUTE MAXIMUM RATINGS. … |
| Formato / tamaño de archivo | PDF / 608 Kb |
| Idioma del documento | Inglés |

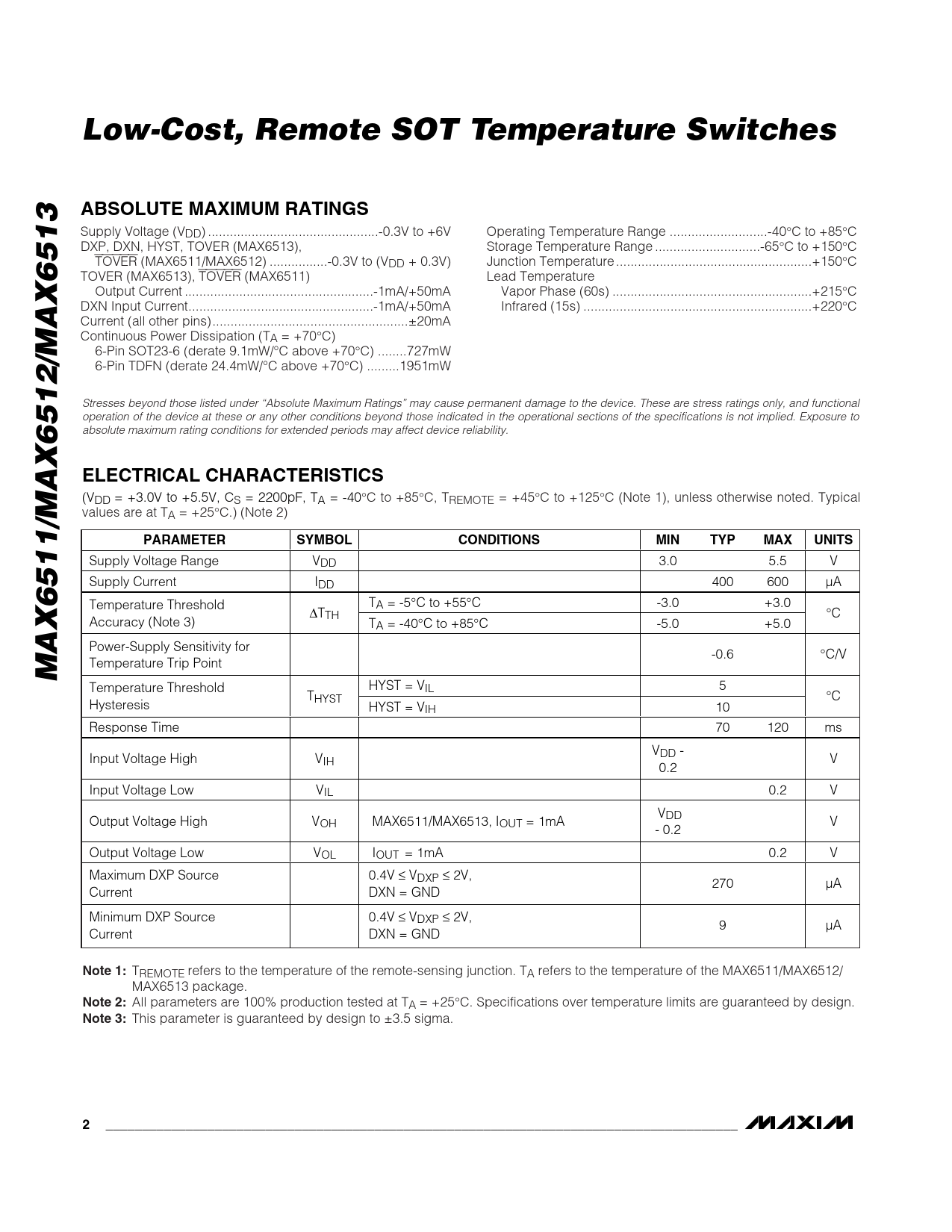

Low-Cost, Remote SOT Temperature Switches. ABSOLUTE MAXIMUM RATINGS. ELECTRICAL CHARACTERISTICS. PARAMETER. SYMBOL. CONDITIONS. MIN
Línea de modelo para esta hoja de datos
- MAX6511UT045 MAX6511UT055 MAX6511UT065 MAX6511UT075 MAX6511UT085 MAX6511UT095 MAX6511UT105 MAX6511UT115 MAX6511UT125
Versión de texto del documento
Low-Cost, Remote SOT Temperature Switches ABSOLUTE MAXIMUM RATINGS
Supply Voltage (VDD) ...-0.3V to +6V Operating Temperature Range ...-40°C to +85°C DXP, DXN, HYST, TOVER (MAX6513), Storage Temperature Range ...-65°C to +150°C TOVER (MAX6511/MAX6512) ..-0.3V to (VDD + 0.3V) Junction Temperature ..+150°C TOVER (MAX6513), TOVER (MAX6511) Lead Temperature Output Current ..-1mA/+50mA Vapor Phase (60s) ...+215°C DXN Input Current...-1mA/+50mA Infrared (15s) ...+220°C Current (all other pins)..±20mA Continuous Power Dissipation (TA = +70°C) 6-Pin SOT23-6 (derate 9.1mW/°C above +70°C) ..727mW 6-Pin TDFN (derate 24.4mW/°C above +70°C) ...1951mW Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(VDD = +3.0V to +5.5V, CS = 2200pF, TA = -40°C to +85°C, TREMOTE = +45°C to +125°C (Note 1), unless otherwise noted. Typical values are at TA = +25°C.) (Note 2)
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Supply Voltage Range VDD 3.0 5.5 V Supply Current IDD 400 600 µA Temperature Threshold TA = -5°C to +55°C -3.0 +3.0 ∆TTH °C Accuracy (Note 3) TA = -40°C to +85°C -5.0 +5.0 Power-Supply Sensitivity for -0.6 °C/V
MAX6511/MAX6512/MAX6513
Temperature Trip Point Temperature Threshold HYST = VIL 5 THYST °C Hysteresis HYST = VIH 10 Response Time 70 120 ms V Input Voltage High V DD - IH V 0.2 Input Voltage Low VIL 0.2 V V Output Voltage High V DD OH MAX6511/MAX6513, IOUT = 1mA V - 0.2 Output Voltage Low VOL IOUT = 1mA 0.2 V Maximum DXP Source 0.4V ≤ VDXP ≤ 2V, 270 µA Current DXN = GND Minimum DXP Source 0.4V ≤ VDXP ≤ 2V, 9 µA Current DXN = GND
Note 1:
TREMOTE refers to the temperature of the remote-sensing junction. TA refers to the temperature of the MAX6511/MAX6512/ MAX6513 package.
Note 2:
All parameters are 100% production tested at TA = +25°C. Specifications over temperature limits are guaranteed by design.
Note 3:
This parameter is guaranteed by design to ±3.5 sigma.
