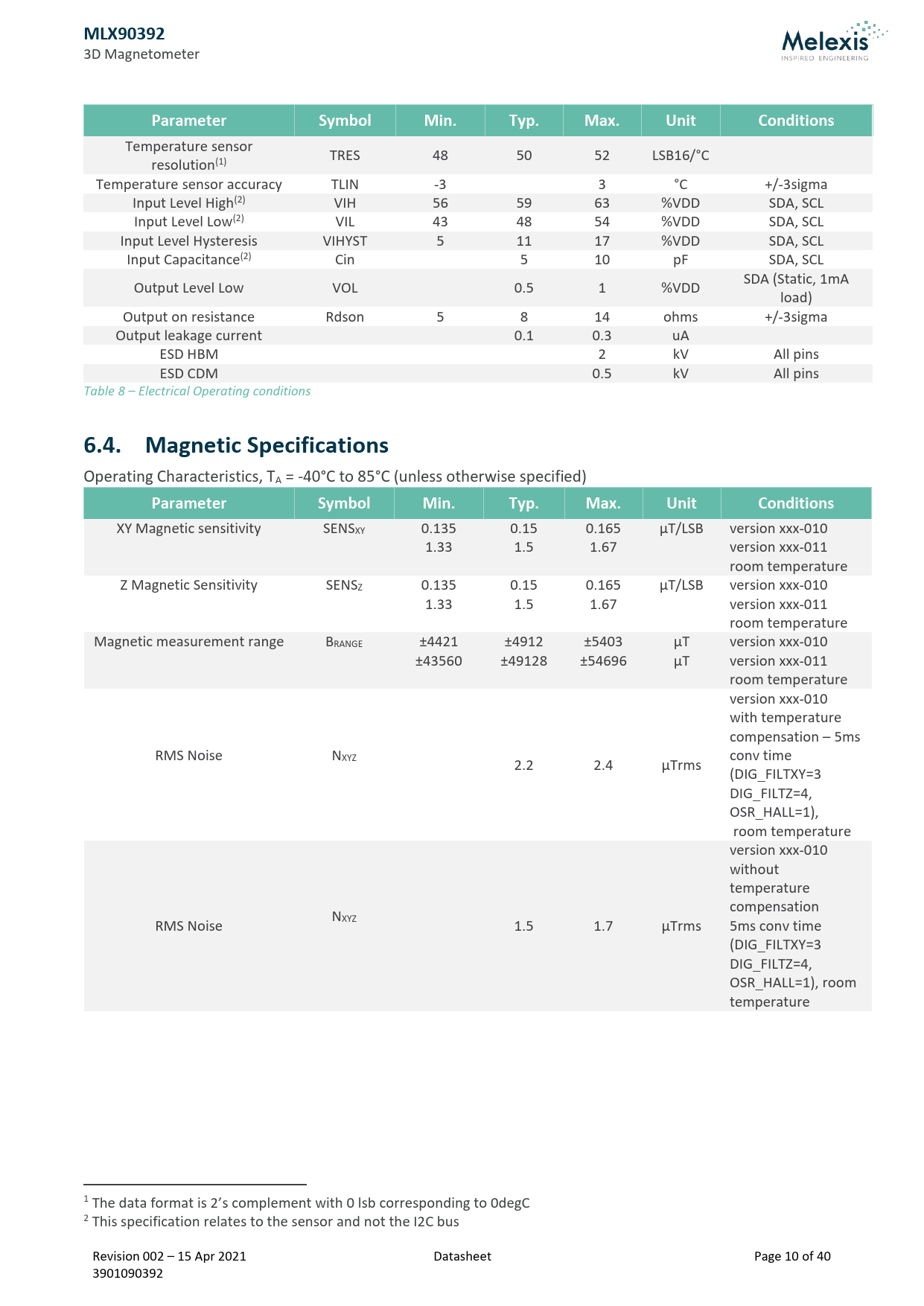

Datasheet MLX90392 (Melexis) - 10

link to page 10 link to page 10
MLX90392
3D Magnetometer
Parameter Symbol Min. Typ. Max. Unit Conditions
Temperature sensor TRES 48 50 52 LSB16/°C resolution(1) Temperature sensor accuracy TLIN -3 3 °C +/-3sigma Input Level High(2) VIH 56 59 63 %VDD SDA, SCL Input Level Low(2) VIL 43 48 54 %VDD SDA, SCL Input Level Hysteresis VIHYST 5 11 17 %VDD SDA, SCL Input Capacitance(2) Cin 5 10 pF SDA, SCL SDA (Static, 1mA Output Level Low VOL 0.5 1 %VDD load) Output on resistance Rdson 5 8 14 ohms +/-3sigma Output leakage current 0.1 0.3 uA ESD HBM 2 kV All pins ESD CDM 0.5 kV All pins Table 8 – Electrical Operating conditions
6.4. Magnetic Specifications
Operating Characteristics, TA = -40°C to 85°C (unless otherwise specified)
Parameter Symbol Min. Typ. Max. Unit Conditions
XY Magnetic sensitivity SENSXY 0.135 0.15 0.165 µT/LSB version xxx-010 1.33 1.5 1.67 version xxx-011 room temperature Z Magnetic Sensitivity SENSZ 0.135 0.15 0.165 µT/LSB version xxx-010 1.33 1.5 1.67 version xxx-011 room temperature Magnetic measurement range BRANGE ±4421 ±4912 ±5403 µT version xxx-010 ±43560 ±49128 ±54696 µT version xxx-011 room temperature version xxx-010 with temperature compensation – 5ms RMS Noise NXYZ conv time 2.2 2.4 µTrms (DIG_FILTXY=3 DIG_FILTZ=4, OSR_HALL=1), room temperature version xxx-010 without temperature compensation N RMS Noise XYZ 1.5 1.7 µTrms 5ms conv time (DIG_FILTXY=3 DIG_FILTZ=4, OSR_HALL=1), room temperature 1 The data format is 2’s complement with 0 lsb corresponding to 0degC 2 This specification relates to the sensor and not the I2C bus Revision 002 – 15 Apr 2021 Datasheet Page 10 of 40 3901090392
