Datasheet AOZ8S305BLS-24 (Alpha & Omega) - 4
| Fabricante | Alpha & Omega |
| Descripción | Single Channel Bidirectional TVS Diode |
| Páginas / Página | 5 / 4 — ALPHA & OMEGA. AOZ8S305BLS-24. Typical Performance Characteristics. … |
| Formato / tamaño de archivo | PDF / 392 Kb |
| Idioma del documento | Inglés |

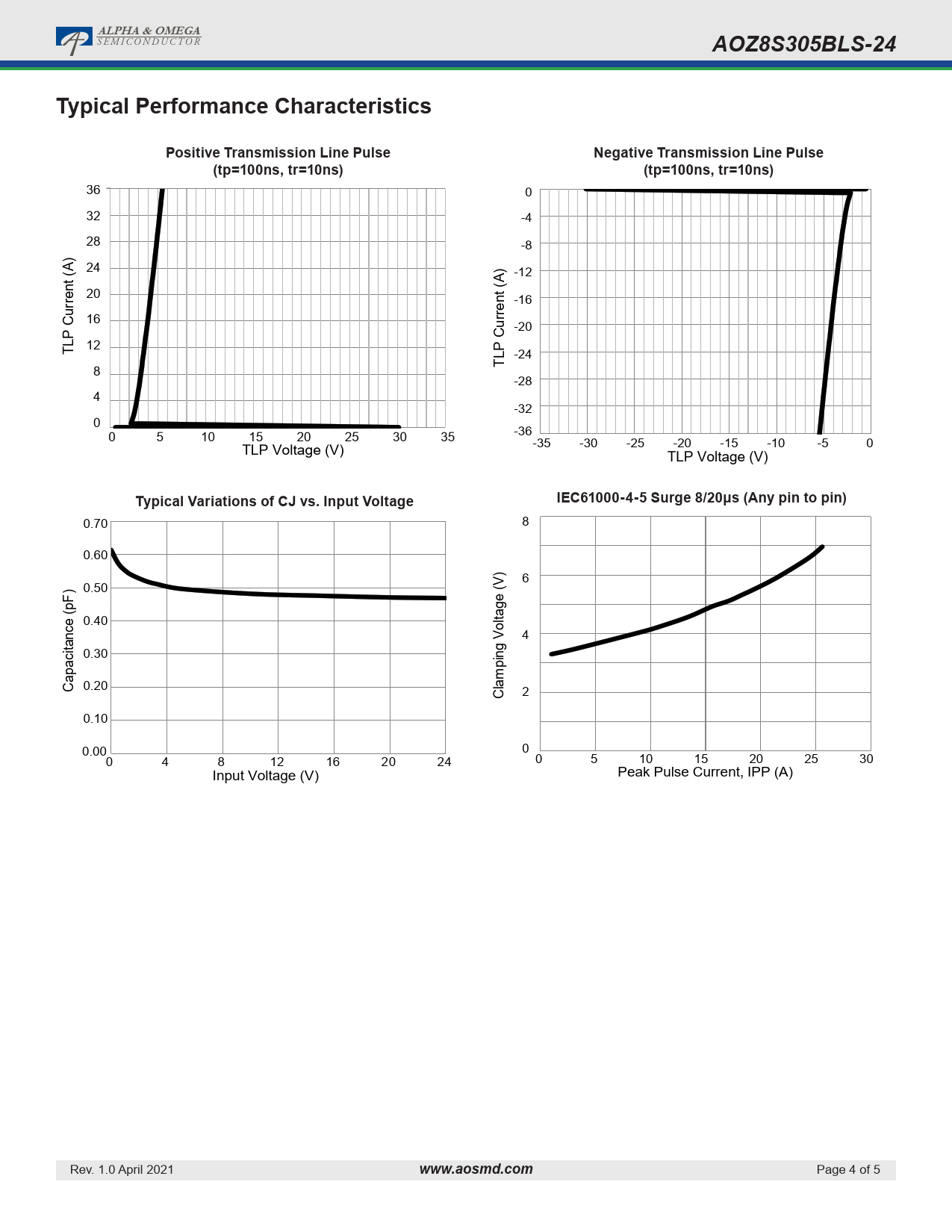

ALPHA & OMEGA. AOZ8S305BLS-24. Typical Performance Characteristics. Positive Transmission Line Pulse
Línea de modelo para esta hoja de datos
Versión de texto del documento
ALPHA & OMEGA
S E M I C O N D U C T O R
AOZ8S305BLS-24 Typical Performance Characteristics Positive Transmission Line Pulse Negative Transmission Line Pulse (tp=100ns, tr=10ns) (tp=100ns, tr=10ns)
36 0 32 -4 28 -8 24 -12 20 -16 urrent (A) 16 urrent (A) -20 12 TLP C -24 TLP C 8 -28 4 -32 0 0 5 10 15 20 25 30 35 -36 TLP Voltage (V) -35 -30 -25 -20 -15 -10 -5 0 TLP Voltage (V)
Typical Variations of CJ vs. Input Voltage IEC61000-4-5 Surge 8/20µs (Any pin to pin)
0.70 8 0.60 6 0.50 0.40 4 0.30 ping Voltage (V) Capacitance (pF) 0.20 lam 2 C 0.10 0.00 0 0 4 8 12 16 20 24 0 5 10 15 20 25 30 Input Voltage (V) Peak Pulse Current, IPP (A) Rev. 1.0 April 2021
www.aosmd.com
Page 4 of 5
