STM32L562xx
Ultra-low-power Arm® Cortex®-M33 32-bit MCU+TrustZone®+FPU, 165DMIPS, up to 512KB Flash, 256KB SRAM, SMPS, AES+PKA
Datasheet
-

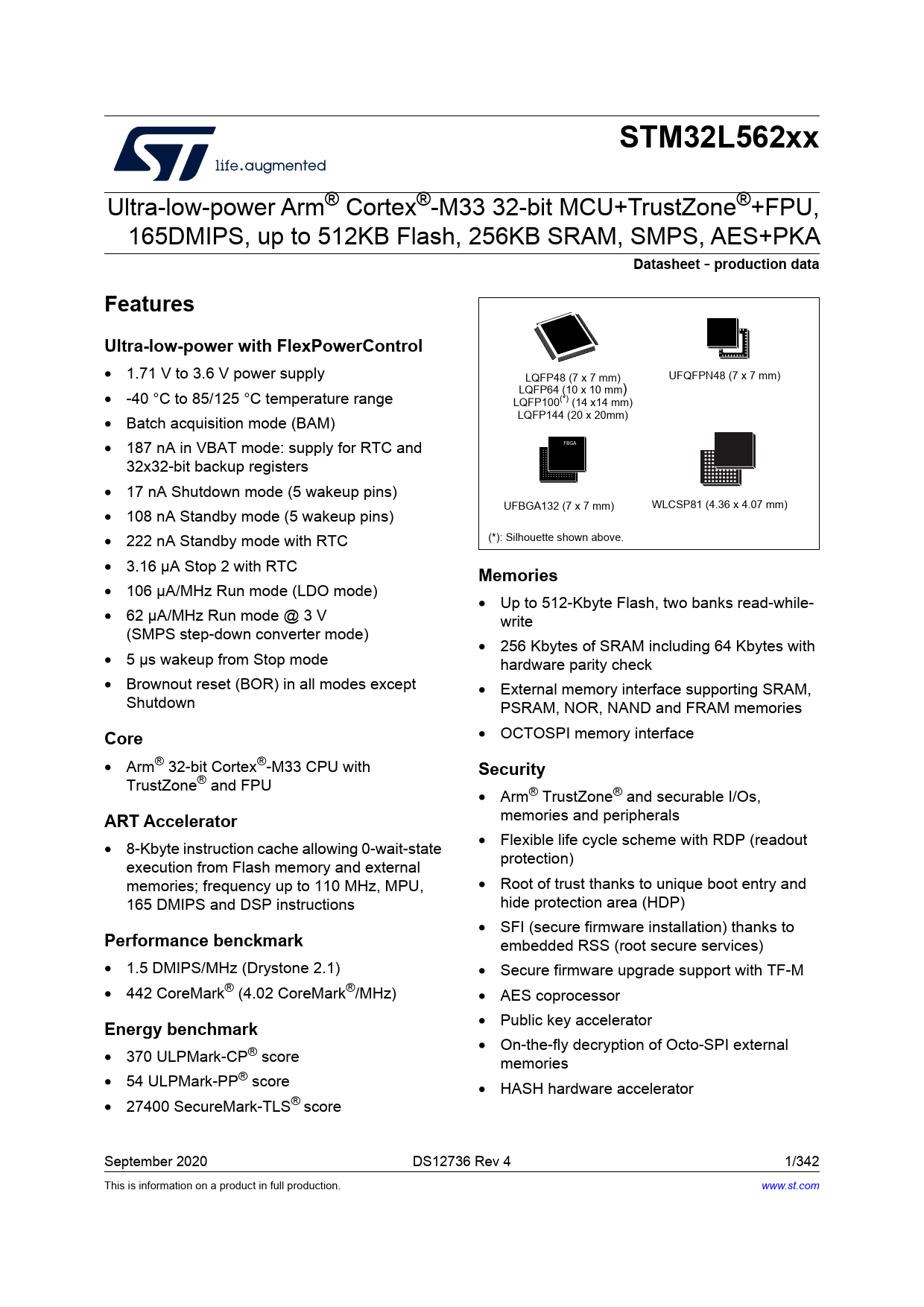

production data Features Ultra-low-power with FlexPowerControl
• 1.71 V to 3.6 V power supply LQFP48 (7 x 7 mm) UFQFPN48 (7 x 7 mm) • -40 °C to 85/125 °C temperature range LQFP64 (10 x 10 mm) LQFP100(*) (14 x14 mm) • Batch acquisition mode (BAM) LQFP144 (20 x 20mm) • 187 nA in VBAT mode: supply for RTC and FBGA 32x32-bit backup registers • 17 nA Shutdown mode (5 wakeup pins) UFBGA132 (7 x 7 mm) WLCSP81 (4.36 x 4.07 mm) • 108 nA Standby mode (5 wakeup pins) • 222 nA Standby mode with RTC (*): Silhouette shown above. • 3.16 μA Stop 2 with RTC
