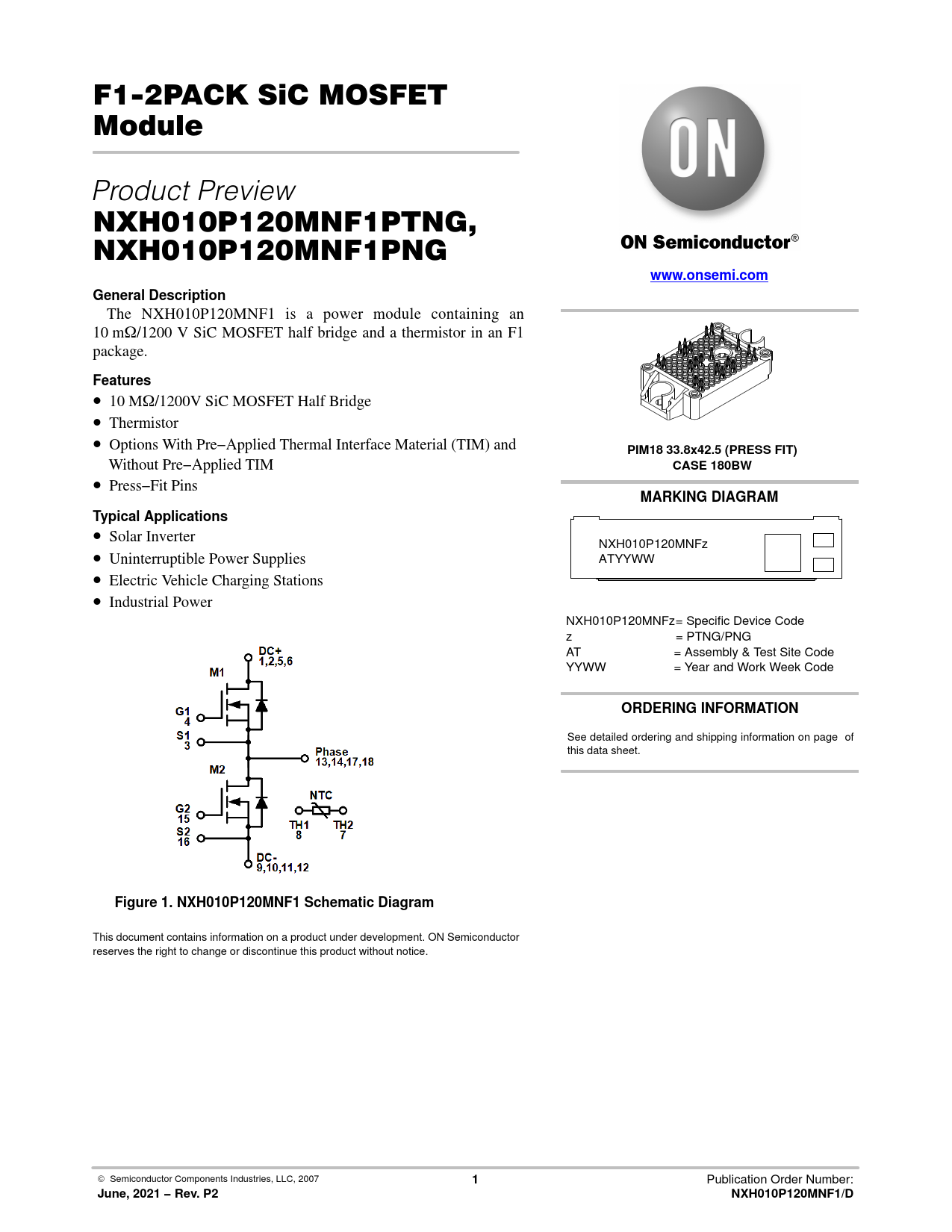

F1-2PACK SiC MOSFET Module Product Preview NXH010P120MNF1PTNG, NXH010P120MNF1PNG
www.onsemi.com General Description
The NXH010P120MNF1 is a power module containing an 10 mW/1200 V SiC MOSFET half bridge and a thermistor in an F1 package.
Features
• 10 MW/1200V SiC MOSFET Half Bridge • Thermistor • Options With Pre−Applied Thermal Interface Material (TIM) and
PIM18 33.8x42.5 (PRESS FIT)
Without Pre−Applied TIM
CASE 180BW
• Press−Fit Pins
MARKING DIAGRAM Typical Applications
• Solar Inverter NXH010P120MNFz • Uninterruptible Power Supplies ATYYWW • Electric Vehicle Charging Stations • Industrial Power NXH010P120MNFz= Specific Device Code z = PTNG/PNG AT = Assembly & Test Site Code YYWW = Year and Work Week Code
ORDERING INFORMATION
See detailed ordering and shipping information on page of this data sheet.
Figure 1. NXH010P120MNF1 Schematic Diagram
This document contains information on a product under development. ON Semiconductor reserves the right to change or discontinue this product without notice. © Semiconductor Components Industries, LLC, 2007
1
Publication Order Number:
June, 2021 − Rev. P2 NXH010P120MNF1/D
