RDA Microelectronics, Inc. RDA5807NP FM Tuner V1.2
3 Functional Description

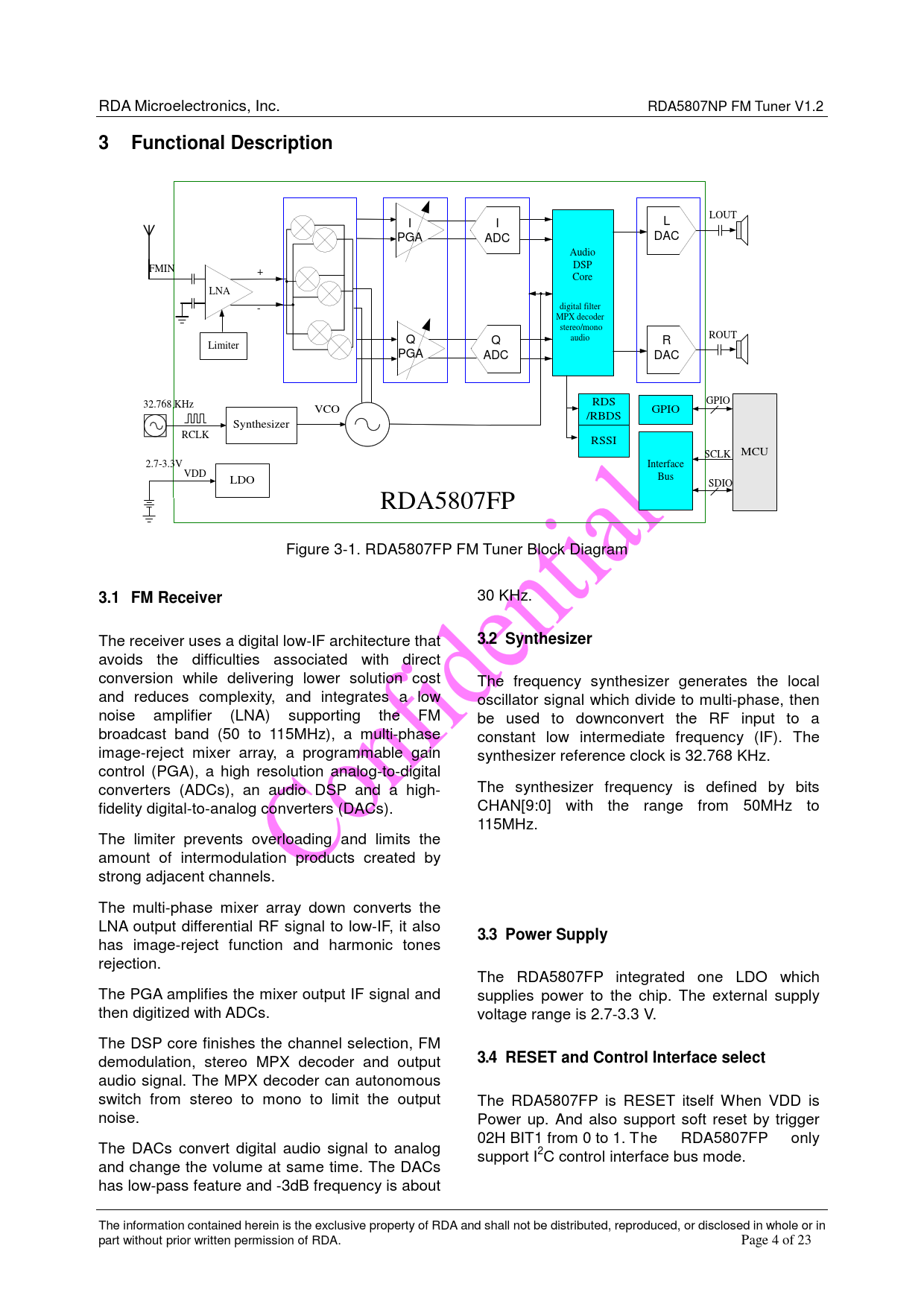

LOUT I I L PGA ADC DAC Audio DSP FMIN + Core LNA - digital filter MPX decoder stereo/mono ROUT Q Q audio R Limiter PGA ADC DAC RDS GPIO 32.768 KHz VCO GPIO /RBDS Synthesizer RCLK RSSI SCLK MCU 2.7-3.3V Interface VDD Bus LDO SDIO RDA5807FP Figure 3-1. RDA5807FP FM Tuner Block Diagram
3.1 FM Receiver
30 KHz. The receiver uses a digital low-IF architecture that
3.2 Synthesizer
avoids the difficulties associated with direct conversion while delivering lower solution cost The frequency synthesizer generates the local and reduces complexity, and integrates a low oscillator signal which divide to multi-phase, then noise amplifier (LNA) supporting the FM be used to downconvert the RF input to a broadcast band (50 to 115MHz), a multi-phase constant low intermediate frequency (IF). The image-reject mixer array, a programmable gain synthesizer reference clock is 32.768 KHz. control (PGA), a high resolution analog-to-digital converters (ADCs), an audio DSP and a high- The synthesizer frequency is defined by bits fidelity digital-to-analog converters (DACs). CHAN[9:0] with the range from 50MHz to 115MHz. The limiter prevents overloading and limits the amount of intermodulation products created by strong adjacent channels. The multi-phase mixer array down converts the LNA output differential RF signal to low-IF, it also
3.3 Power Supply
has image-reject function and harmonic tones rejection. The RDA5807FP integrated one LDO which The PGA amplifies the mixer output IF signal and supplies power to the chip. The external supply then digitized with ADCs. voltage range is 2.7-3.3 V. The DSP core finishes the channel selection, FM demodulation, stereo MPX decoder and output
3.4 RESET and Control Interface select
