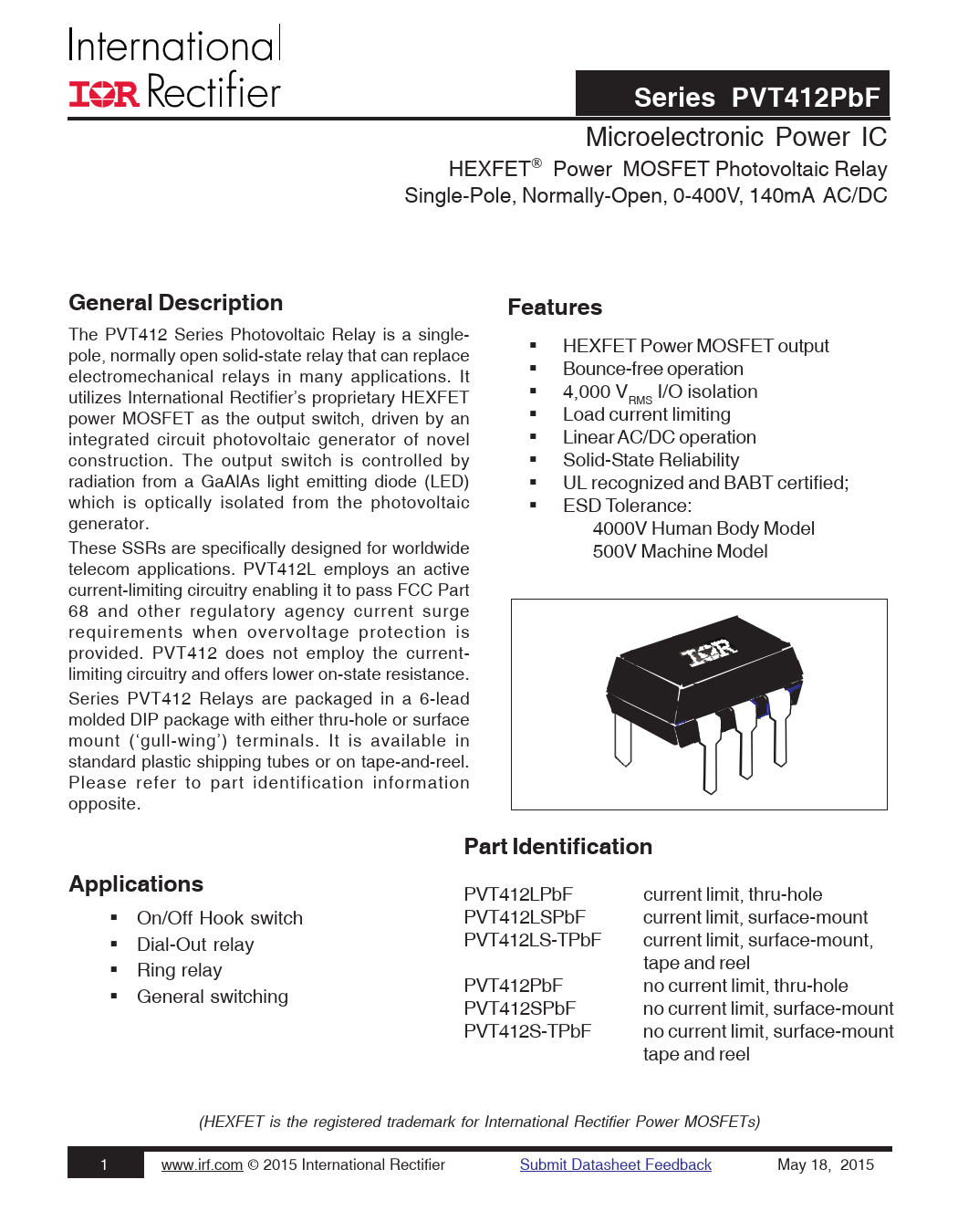

Series PVT412PbF
Microelectronic Power IC HEXFET® Power MOSFET Photovoltaic Relay Single-Pole, Normally-Open, 0-400V, 140mA AC/DC
General Description Features
The PVT412 Series Photovoltaic Relay is a single- pole, normally open solid-state relay that can replace HEXFET Power MOSFET output electromechanical relays in many applications. It Bounce-free operation utilizes International Rectifier’s proprietary HEXFET 4,000 V I/O isolation RMS power MOSFET as the output switch, driven by an Load current limiting integrated circuit photovoltaic generator of novel Linear AC/DC operation construction. The output switch is controlled by Solid-State Reliability radiation from a GaAlAs light emitting diode (LED) UL recognized and BABT certified; which is optically isolated from the photovoltaic ESD Tolerance: generator. 4000V Human Body Model These SSRs are specifically designed for worldwide 500V Machine Model telecom applications. PVT412L employs an active current-limiting circuitry enabling it to pass FCC Part 68 and other regulatory agency current surge requirements when overvoltage protection is provided. PVT412 does not employ the current- limiting circuitry and offers lower on-state resistance. Series PVT412 Relays are packaged in a 6-lead molded DIP package with either thru-hole or surface mount (‘gull-wing’) terminals. It is available in standard plastic shipping tubes or on tape-and-reel. Please refer to part identification information opposite.
Part Identification Applications
PVT412LPbF current limit, thru-hole On/Off Hook switch PVT412LSPbF current limit, surface-mount Dial-Out relay PVT412LS-TPbF current limit, surface-mount, Ring relay tape and reel PVT412PbF no current limit, thru-hole General switching PVT412SPbF no current limit, surface-mount PVT412S-TPbF no current limit, surface-mount tape and reel (HEXFET is the registered trademark for International Rectifier Power MOSFETs) 1 www.irf.com © 2015 International Rectifier Submit Datasheet Feedback May 18, 2015
