DISCONTINUED 08/06/2009. 1N5391/S - 1N5399/S. 1.5A RECTIFIER. Features. Lead Free Finish, RoHS Compliant (Note 3)

Datasheet 1N5391/S -1N5399/S Diodes

Línea de modelo para esta hoja de datos

Versión de texto del documento

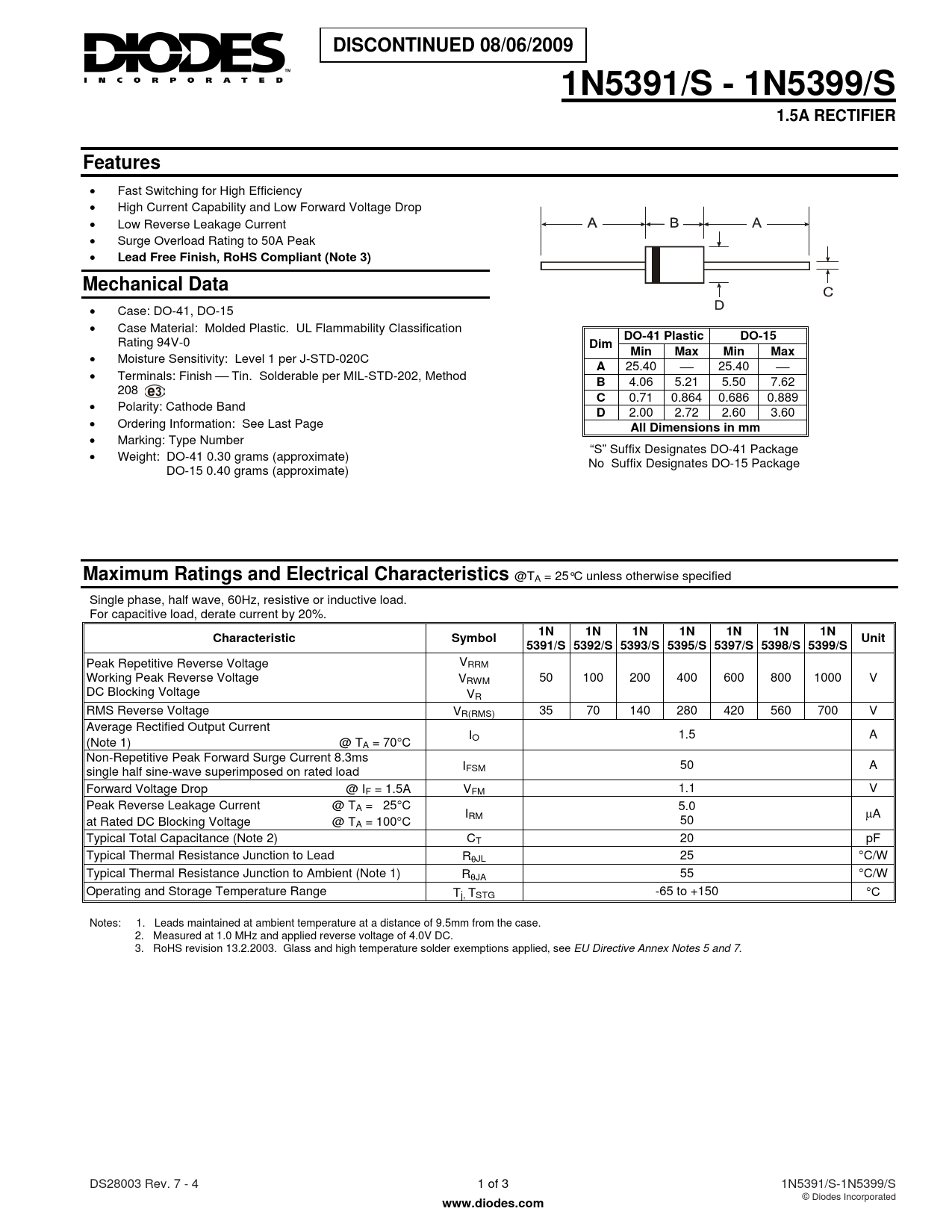

DISCONTINUED 08/06/2009 1N5391/S - 1N5399/S 1.5A RECTIFIER Features
• Fast Switching for High Efficiency • High Current Capability and Low Forward Voltage Drop • Low Reverse Leakage Current • Surge Overload Rating to 50A Peak •
Lead Free Finish, RoHS Compliant (Note 3) Mechanical Data
• Case: DO-41, DO-15 • Case Material: Molded Plastic. UL Flammability Classification
DO-41 Plastic DO-15
Rating 94V-0
Dim

Min Max Min Max
Moisture Sensitivity: Level 1 per J-STD-020C •
A
25.40 ⎯ 25.40 ⎯ Terminals: Finish ⎯ Tin. Solderable per MIL-STD-202, Method
B
4.06 5.21 5.50 7.62 208
C
0.71 0.864 0.686 0.889 • Polarity: Cathode Band
D
2.00 2.72 2.60 3.60 • Ordering Information: See Last Page
All Dimensions in mm
• Marking: Type Number • “S” Suffix Designates DO-41 Package Weight: DO-41 0.30 grams (approximate) No Suffix Designates DO-15 Package DO-15 0.40 grams (approximate)
Maximum Ratings and Electrical Characteristics
@TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
1N 1N 1N 1N 1N 1N 1N Characteristic Symbol Unit 5391/S 5392/S 5393/S 5395/S 5397/S 5398/S 5399/S
Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 50 100 200 400 600 800 1000 V DC Blocking Voltage VR RMS Reverse Voltage VR(RMS) 35 70 140 280 420 560 700 V Average Rectified Output Current I (Note 1) @ T O 1.5 A A = 70°C Non-Repetitive Peak Forward Surge Current 8.3ms I single half sine-wave superimposed on rated load FSM 50 A Forward Voltage Drop @ IF = 1.5A VFM 1.1 V Peak Reverse Leakage Current @ TA = 25°C 5.0 I μA at Rated DC Blocking Voltage @ T RM A = 100°C 50 Typical Total Capacitance (Note 2) CT 20 pF Typical Thermal Resistance Junction to Lead RθJL 25 °C/W Typical Thermal Resistance Junction to Ambient (Note 1) RθJA 55 °C/W Operating and Storage Temperature Range Tj, TSTG -65 to +150 °C Notes: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case. 2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC. 3. RoHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see EU Directive Annex Notes 5 and 7. DS28003 Rev. 7 - 4 1 of 3 1N5391/S-1N5399/S © Diodes Incorporated
