Descripción-12A, -100V, 0.30 Ohm, P-Channel Power MOSFET
Páginas / Página7 / 2 — IRF9130. Absolute Maximum Ratings. UNITS. Electrical Specifications. …
Formato / tamaño de archivoPDF / 67 Kb
Idioma del documentoInglés

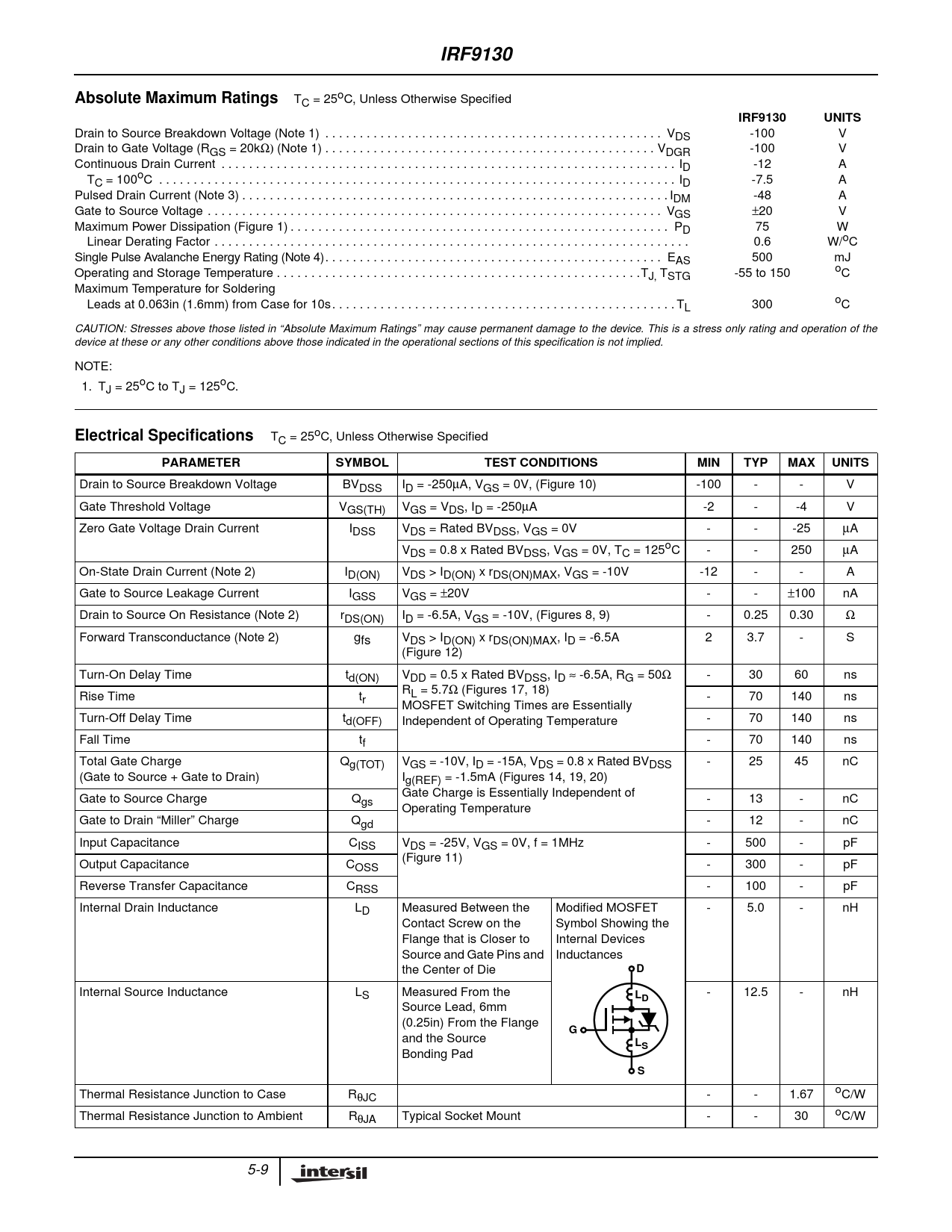

IRF9130. Absolute Maximum Ratings. UNITS. Electrical Specifications. PARAMETER. SYMBOL. TEST CONDITIONS. MIN. TYP. MAX

IRF9130 Absolute Maximum Ratings UNITS Electrical Specifications PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX

Línea de modelo para esta hoja de datos

Versión de texto del documento

IRF9130 Absolute Maximum Ratings
TC = 25oC, Unless Otherwise Specified
IRF9130 UNITS
Drain to Source Breakdown Voltage (Note 1) . VDS -100 V Drain to Gate Voltage (RGS = 20kΩ) (Note 1) . VDGR -100 V Continuous Drain Current . ID -12 A TC = 100oC . ID -7.5 A Pulsed Drain Current (Note 3) . IDM -48 A Gate to Source Voltage . VGS ±20 V Maximum Power Dissipation (Figure 1) . PD 75 W Linear Derating Factor . 0.6 W/oC Single Pulse Avalanche Energy Rating (Note 4). EAS 500 mJ Operating and Storage Temperature . .TJ, TSTG -55 to 150 oC Maximum Temperature for Soldering Leads at 0.063in (1.6mm) from Case for 10s . TL 300 oC CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. NOTE: 1. TJ = 25oC to TJ = 125oC.
Electrical Specifications
TC = 25oC, Unless Otherwise Specified
PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITS
Drain to Source Breakdown Voltage BVDSS ID = -250µA, VGS = 0V, (Figure 10) -100 - - V Gate Threshold Voltage VGS(TH) VGS = VDS, ID = -250µA -2 - -4 V Zero Gate Voltage Drain Current IDSS VDS = Rated BVDSS, VGS = 0V - - -25 µA VDS = 0.8 x Rated BVDSS, VGS = 0V, TC = 125oC - - 250 µA On-State Drain Current (Note 2) ID(ON) VDS > ID(ON) x rDS(ON)MAX, VGS = -10V -12 - - A Gate to Source Leakage Current IGSS VGS = ±20V - - ±100 nA Drain to Source On Resistance (Note 2) rDS(ON) ID = -6.5A, VGS = -10V, (Figures 8, 9) - 0.25 0.30 Ω Forward Transconductance (Note 2) gfs VDS > ID(ON) x rDS(ON)MAX, ID = -6.5A 2 3.7 - S (Figure 12) Turn-On Delay Time td(ON) VDD = 0.5 x Rated BVDSS, ID ≈ -6.5A, RG = 50Ω - 30 60 ns RL = 5.7Ω (Figures 17, 18) Rise Time tr - 70 140 ns MOSFET Switching Times are Essentially Turn-Off Delay Time td(OFF) Independent of Operating Temperature - 70 140 ns Fall Time tf - 70 140 ns Total Gate Charge Qg(TOT) VGS = -10V, ID = -15A, VDS = 0.8 x Rated BVDSS - 25 45 nC (Gate to Source + Gate to Drain) Ig(REF) = -1.5mA (Figures 14, 19, 20) Gate Charge is Essentially Independent of Gate to Source Charge Qgs - 13 - nC Operating Temperature Gate to Drain “Miller” Charge Qgd - 12 - nC Input Capacitance CISS VDS = -25V, VGS = 0V, f = 1MHz - 500 - pF (Figure 11) Output Capacitance COSS - 300 - pF Reverse Transfer Capacitance CRSS - 100 - pF Internal Drain Inductance LD Measured Between the Modified MOSFET - 5.0 - nH Contact Screw on the Symbol Showing the Flange that is Closer to Internal Devices Source and Gate Pins and Inductances the Center of Die
D
Internal Source Inductance LS Measured From the - 12.5 - nH
LD
Source Lead, 6mm (0.25in) From the Flange
G
and the Source
LS
Bonding Pad
S
Thermal Resistance Junction to Case RθJC - - 1.67 oC/W Thermal Resistance Junction to Ambient RθJA Typical Socket Mount - - 30 oC/W 5-9
