Datasheet MURA115, MURA120, NRVUA120V, SURA8120 (ON Semiconductor) - 5
| Fabricante | ON Semiconductor |
| Descripción | ULTRAFAST RECTIFIERS 1 AMPERE, 100−200 VOLTS |
| Páginas / Página | 6 / 5 — PACKAGE DIMENSIONS. SMA. SCALE 1:1. GENERIC. MARKING DIAGRAM*. DOCUMENT … |
| Revisión | 10 |
| Formato / tamaño de archivo | PDF / 141 Kb |
| Idioma del documento | Inglés |
PACKAGE DIMENSIONS. SMA. SCALE 1:1. GENERIC. MARKING DIAGRAM*. DOCUMENT NUMBER: 98AON04079D. DESCRIPTION:. PAGE 1 OF 1. onsemi
Línea de modelo para esta hoja de datos
Versión de texto del documento
MECHANICAL CASE OUTLINE

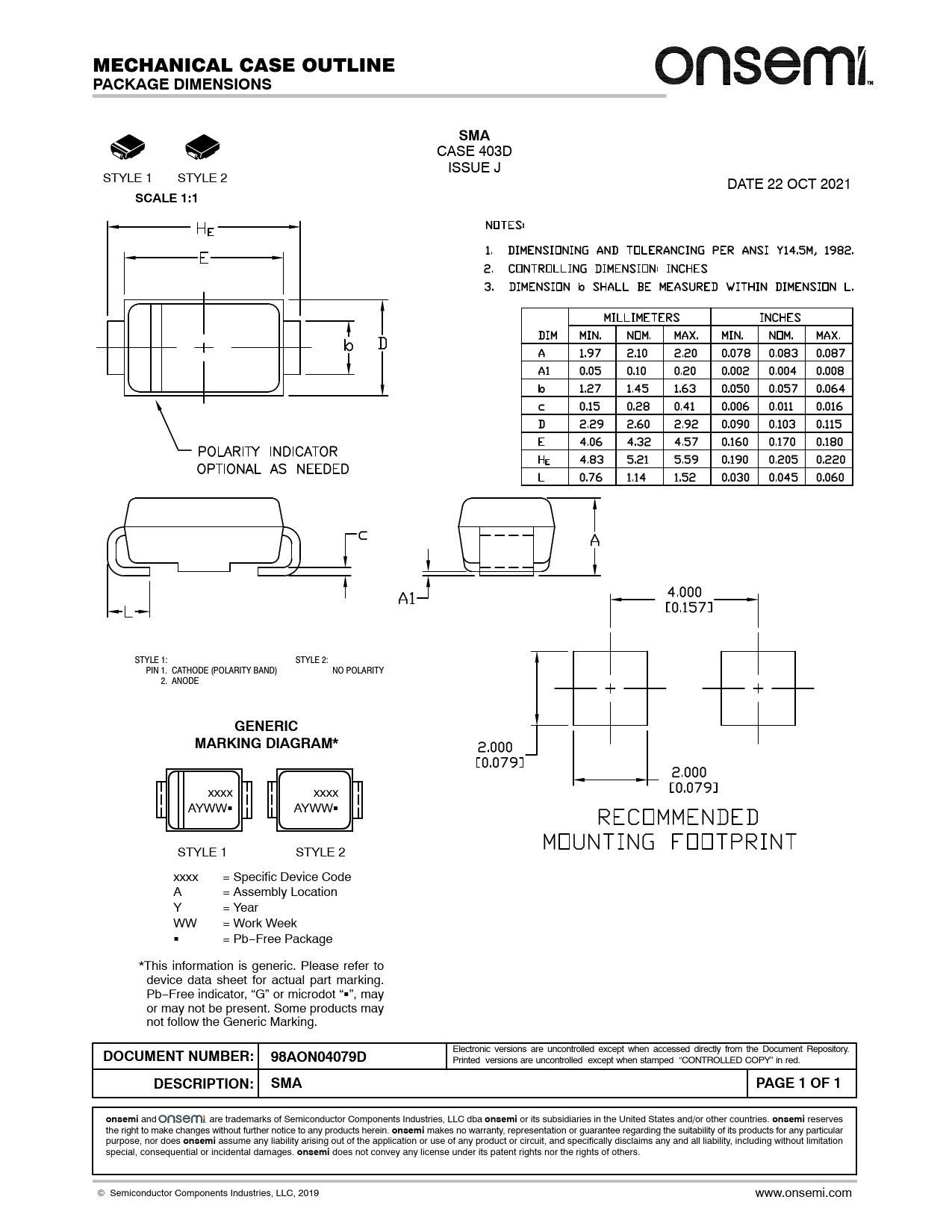

PACKAGE DIMENSIONS SMA
CASE 403D ISSUE J STYLE 1 STYLE 2 DATE 22 OCT 2021
SCALE 1:1
STYLE 1: STYLE 2: PIN 1. CATHODE (POLARITY BAND) NO POLARITY 2. ANODE
GENERIC MARKING DIAGRAM*
xxxx xxxx AYWWG AYWWG STYLE 1 STYLE 2 xxxx = Specific Device Code A = Assembly Location Y = Year WW = Work Week G = Pb−Free Package *This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
