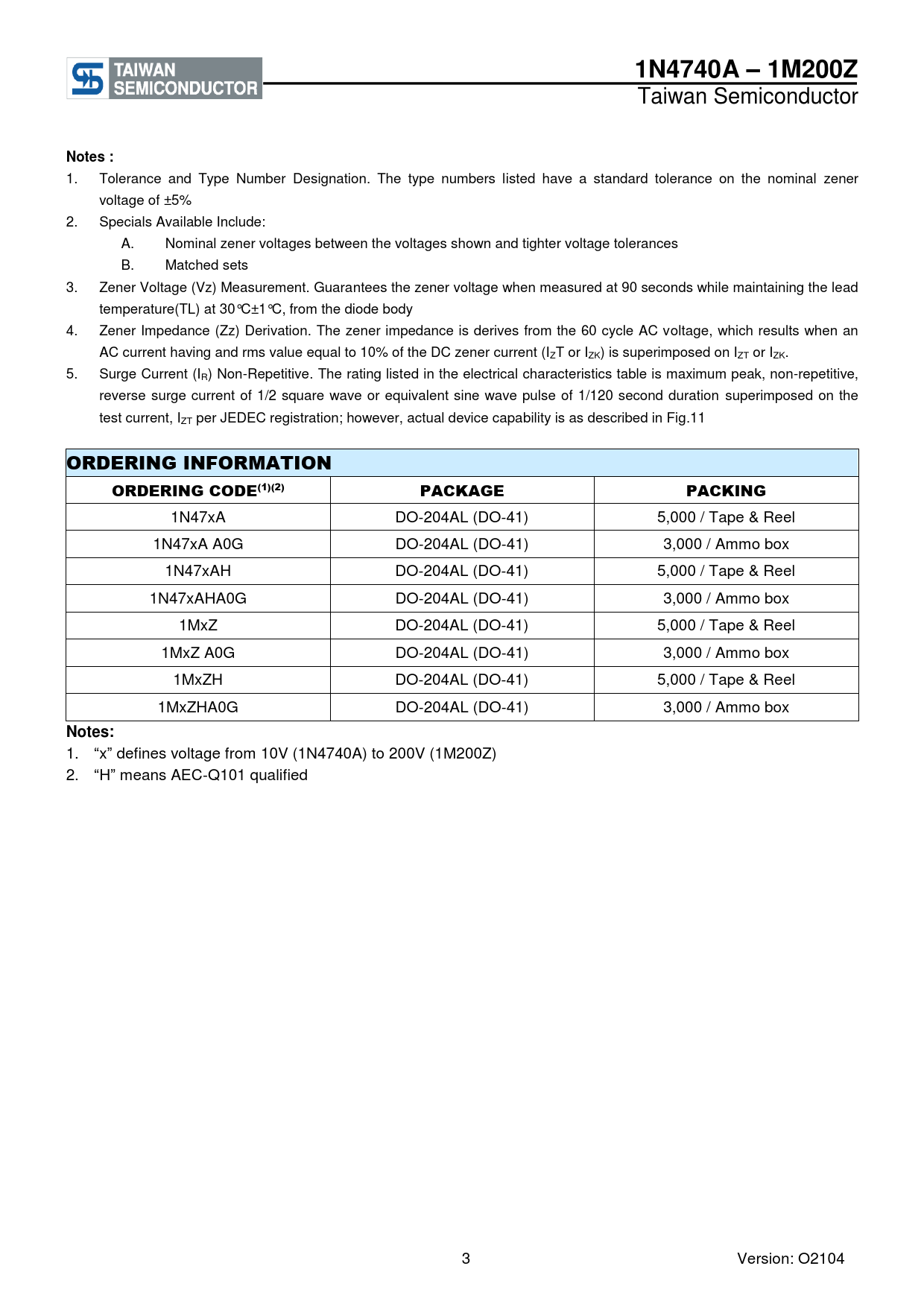

1N4740A – 1M200Z
Taiwan Semiconductor
Notes :
1. Tolerance and Type Number Designation. The type numbers listed have a standard tolerance on the nominal zener voltage of ±5% 2. Specials Available Include: A. Nominal zener voltages between the voltages shown and tighter voltage tolerances B. Matched sets 3. Zener Voltage (Vz) Measurement. Guarantees the zener voltage when measured at 90 seconds while maintaining the lead temperature(TL) at 30°C±1°C, from the diode body 4. Zener Impedance (Zz) Derivation. The zener impedance is derives from the 60 cycle AC voltage, which results when an AC current having and rms value equal to 10% of the DC zener current (IZT or IZK) is superimposed on IZT or IZK. 5. Surge Current (IR) Non-Repetitive. The rating listed in the electrical characteristics table is maximum peak, non-repetitive, reverse surge current of 1/2 square wave or equivalent sine wave pulse of 1/120 second duration superimposed on the test current, IZT per JEDEC registration; however, actual device capability is as described in Fig.11
ORDERING INFORMATION ORDERING CODE(1)(2) PACKAGE PACKING
1N47xA DO-204AL (DO-41) 5,000 / Tape & Reel 1N47xA A0G DO-204AL (DO-41) 3,000 / Ammo box 1N47xAH DO-204AL (DO-41) 5,000 / Tape & Reel 1N47xAHA0G DO-204AL (DO-41) 3,000 / Ammo box 1MxZ DO-204AL (DO-41) 5,000 / Tape & Reel 1MxZ A0G DO-204AL (DO-41) 3,000 / Ammo box 1MxZH DO-204AL (DO-41) 5,000 / Tape & Reel 1MxZHA0G DO-204AL (DO-41) 3,000 / Ammo box
Notes:
1. “x” defines voltage from 10V (1N4740A) to 200V (1M200Z) 2. “H” means AEC-Q101 qualified 3 Version: O2104
