Datasheet CMKBR-6F (Central Semiconductor)

FabricanteCentral Semiconductor
DescripciónSURFACE MOUNT SILICON BRIDGE RECTIFIER
Páginas / Página4 / 1 — CMKBR-6F. www.centra lsemi.com. SURFACE MOUNT. SILICON BRIDGE RECTIFIER. …
Formato / tamaño de archivoPDF / 653 Kb
Idioma del documentoInglés

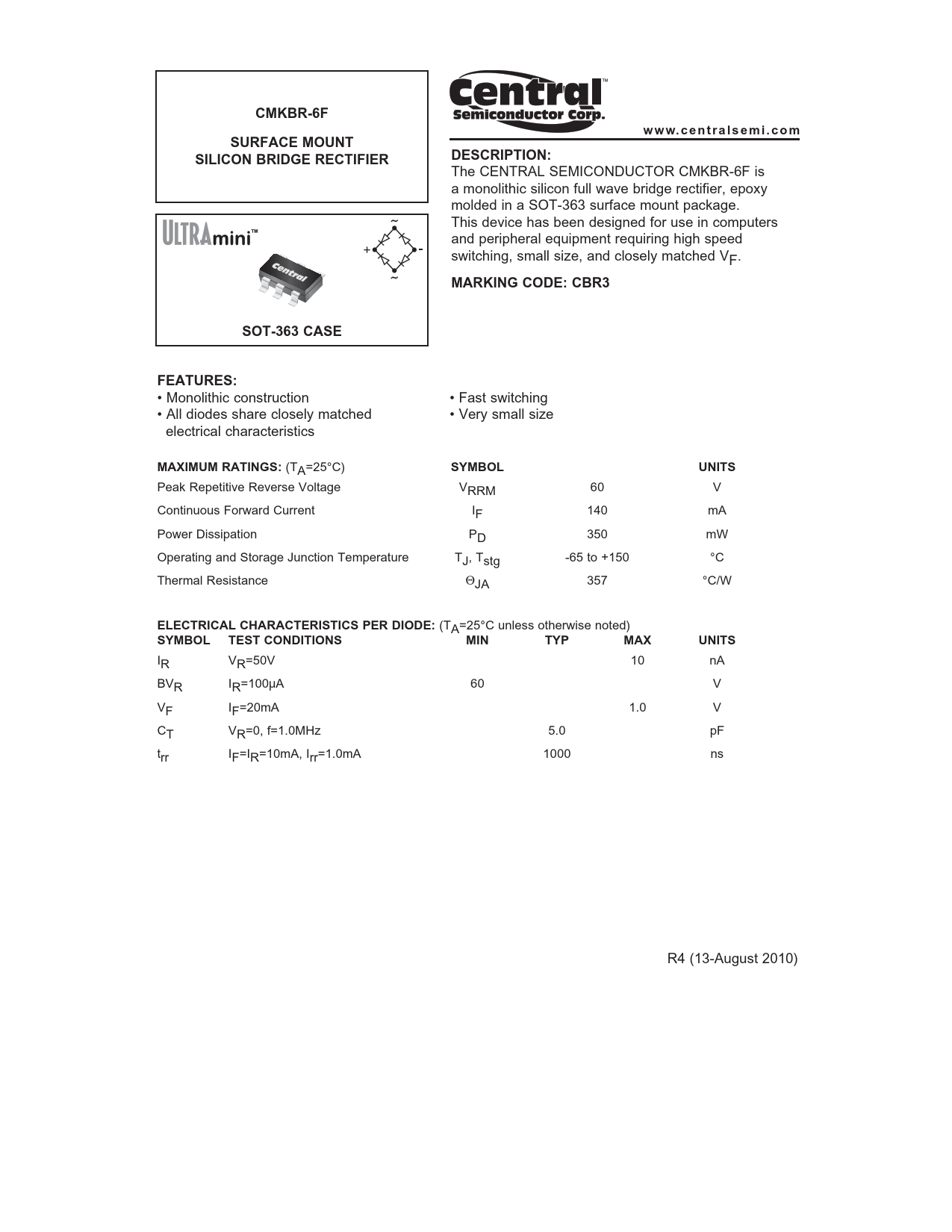

CMKBR-6F. www.centra lsemi.com. SURFACE MOUNT. SILICON BRIDGE RECTIFIER. DESCRIPTION:. MARKING CODE: CBR3. SOT-363 CASE. FEATURES:

Datasheet CMKBR-6F Central Semiconductor

Línea de modelo para esta hoja de datos

Versión de texto del documento

CMKBR-6F www.centra lsemi.com SURFACE MOUNT SILICON BRIDGE RECTIFIER DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMKBR-6F is a monolithic silicon full wave bridge rectifier, epoxy molded in a SOT-363 surface mount package. This device has been designed for use in computers and peripheral equipment requiring high speed switching, small size, and closely matched VF.
MARKING CODE: CBR3 SOT-363 CASE FEATURES:
• Monolithic construction • Fast switching • All diodes share closely matched • Very small size electrical characteristics
MAXIMUM RATINGS:
(TA=25°C)
SYMBOL UNITS
Peak Repetitive Reverse Voltage VRRM 60 V Continuous Forward Current IF 140 mA Power Dissipation PD 350 mW Operating and Storage Junction Temperature TJ, Tstg -65 to +150 °C Thermal Resistance ΘJA 357 °C/W
ELECTRICAL CHARACTERISTICS PER DIODE:
(TA=25°C unless otherwise noted)
SYMBOL TEST CONDITIONS MIN TYP MAX UNITS
IR VR=50V 10 nA BVR IR=100µA 60 V VF IF=20mA 1.0 V CT VR=0, f=1.0MHz 5.0 pF trr IF=IR=10mA, Irr=1.0mA 1000 ns R4 (13-August 2010)
