TIP140 / TIP141 / TIP142 / TIP145 / TIP146 / TIP147. THERMAL DATA. ELECTRICAL CHARACTERISTICS. Symbol. Parameter. Test Conditions

TIP140 / TIP141 / TIP142 / TIP145 / TIP146 / TIP147 THERMAL DATA ELECTRICAL CHARACTERISTICS Symbol Parameter Test Conditions

Línea de modelo para esta hoja de datos

Versión de texto del documento

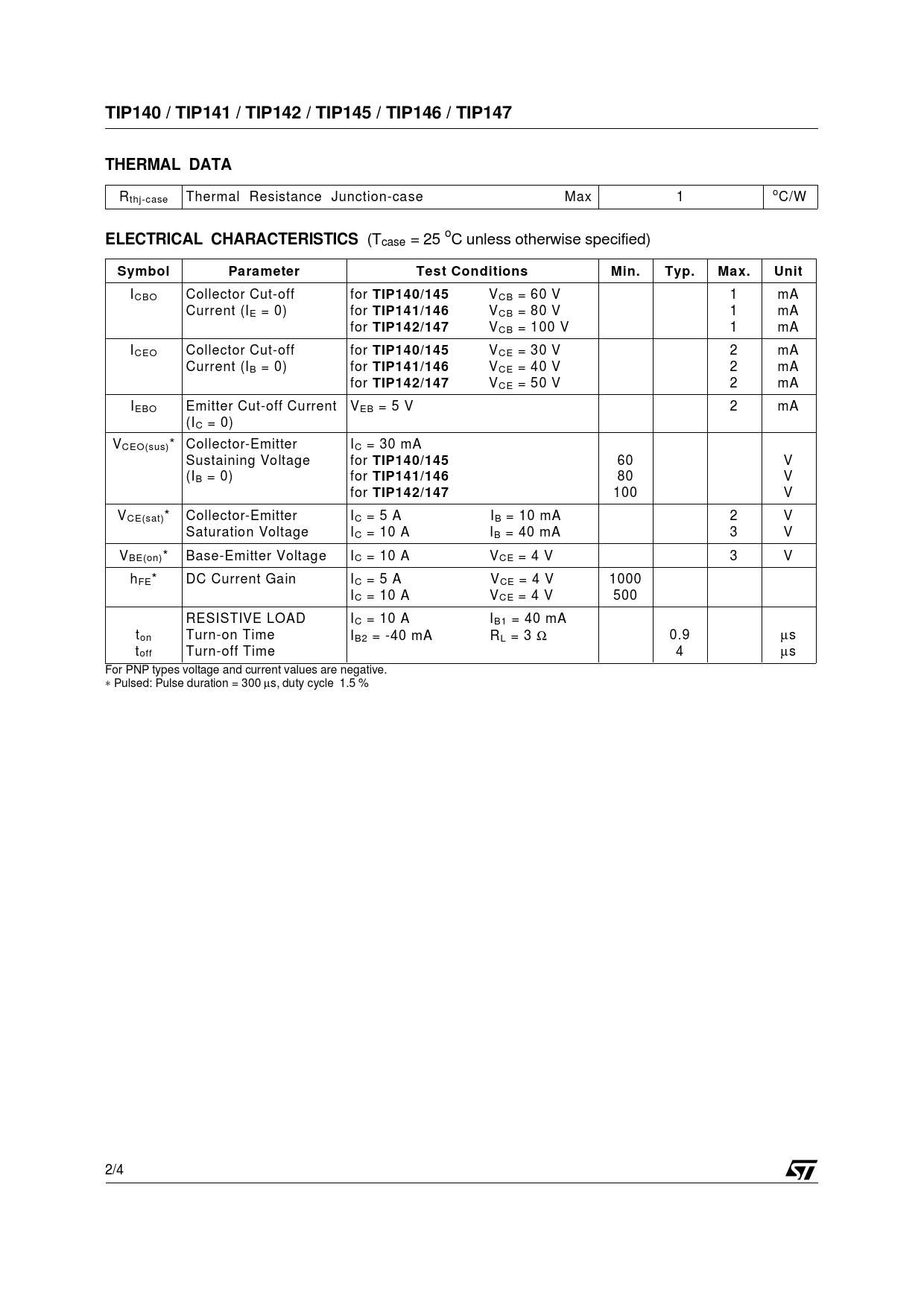

TIP140 / TIP141 / TIP142 / TIP145 / TIP146 / TIP147 THERMAL DATA
Rthj-case Thermal Resistance Junction-case Max 1 oC/W
ELECTRICAL CHARACTERISTICS
(Tcase = 25 oC unless otherwise specified)
Symbol Parameter Test Conditions Min. Typ. Max. Unit
ICBO Collector Cut-off for
TIP140/145
VCB = 60 V 1 mA Current (IE = 0) for
TIP141/146
VCB = 80 V 1 mA for
TIP142/147
VCB = 100 V 1 mA ICEO Collector Cut-off for
TIP140/145
VCE = 30 V 2 mA Current (IB = 0) for
TIP141/146
VCE = 40 V 2 mA for
TIP142/147
VCE = 50 V 2 mA IEBO Emitter Cut-off Current VEB = 5 V 2 mA (IC = 0) VCEO(sus)* Collector-Emitter IC = 30 mA Sustaining Voltage for
TIP140/145
60 V (IB = 0) for
TIP141/146
80 V for
TIP142/147
100 V VCE(sat)* Collector-Emitter IC = 5 A IB = 10 mA 2 V Saturation Voltage IC = 10 A IB = 40 mA 3 V VBE(on)* Base-Emitter Voltage IC = 10 A VCE = 4 V 3 V hFE* DC Current Gain IC = 5 A VCE = 4 V 1000 IC = 10 A VCE = 4 V 500 RESISTIVE LOAD IC = 10 A IB1 = 40 mA ton Turn-on Time I µ B2 = -40 mA RL = 3 Ω 0.9 s toff Turn-off Time 4 µs For PNP types voltage and current values are negative. ∗ Pulsed: Pulse duration = 300 µs, duty cycle 1.5 % 2/4
