SG1524/SG2524. SG3524. Parameter. Test Conditions. Units. Min. Typ. Max. Min. Typ. Max. Reference Section

SG1524/SG2524 SG3524 Parameter Test Conditions Units Min Typ Max Min Typ Max Reference Section

Línea de modelo para esta hoja de datos

Versión de texto del documento

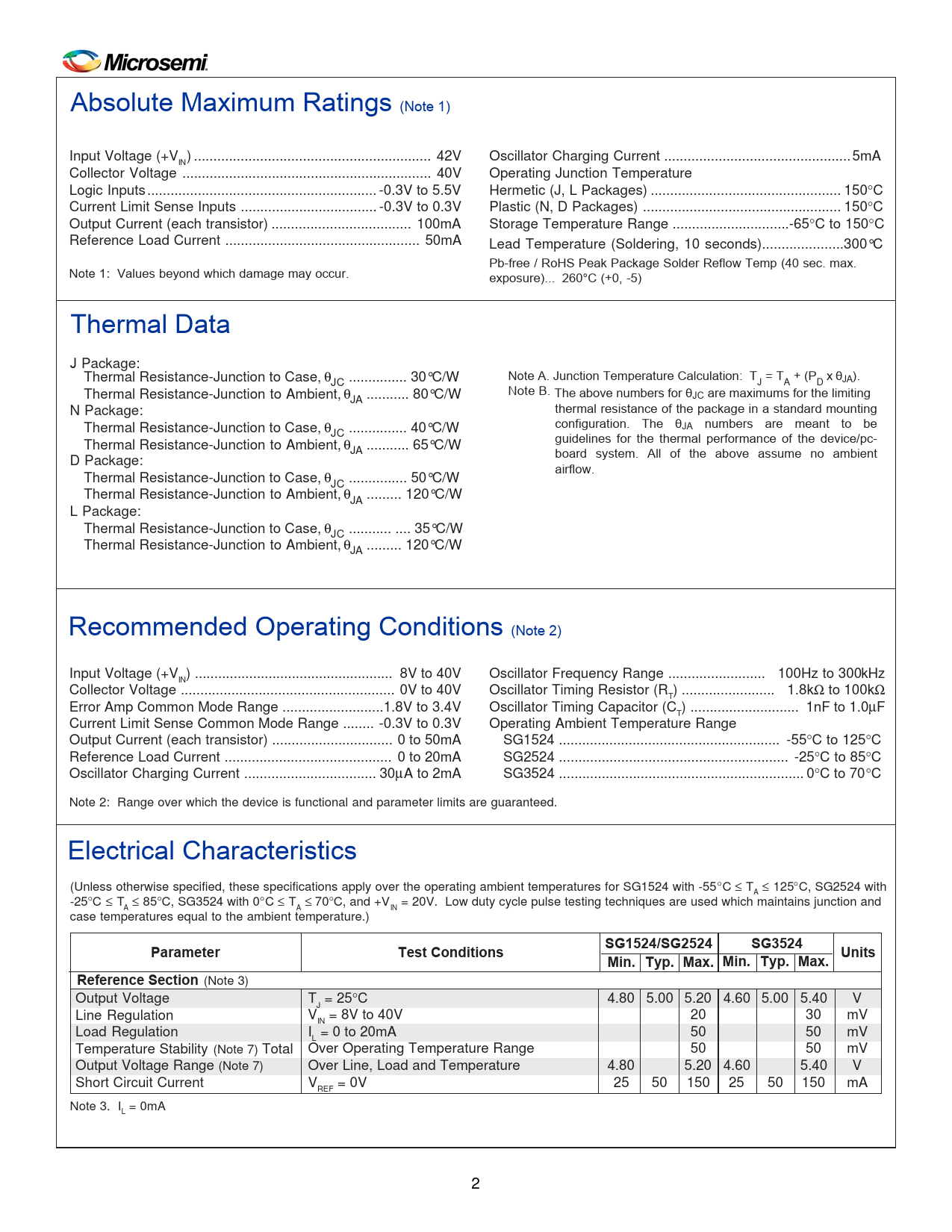

Absolute Maximum Ratings (Note 1) Input Voltage (+V ) ... 42V Oscillator Charging Current .. 5mA IN Collector Voltage .. 40V Operating Junction Temperature Logic Inputs ... -0.3V to 5.5V Hermetic (J, L Packages) ... 150°C Current Limit Sense Inputs ... -0.3V to 0.3V Plastic (N, D Packages) ... 150°C Output Current (each transistor) .. 100mA Storage Temperature Range ..-65°C to 150°C Reference Load Current .. 50mA Lead Temperature (Soldering, 10 seconds)...300°C Pb-free / RoHS Peak Package Solder Reflow Temp (40 sec. max. Note 1: Values beyond which damage may occur. exposure)... 260°C (+0, -5) Thermal Data J Package: Thermal Resistance-Junction to Case, θ Note A. Junction Temperature Calculation: T JC ... 30°C/W J = TA + (PD x θJA). Thermal Resistance-Junction to Ambient, θ Note B. The above numbers for θ JA ... 80°C/W JC are maximums for the limiting N Package: thermal resistance of the package in a standard mounting Thermal Resistance-Junction to Case, θ configuration. The θJA numbers are meant to be JC ... 40°C/W guidelines for the thermal performance of the device/pc- Thermal Resistance-Junction to Ambient, θJA ... 65°C/W board system. All of the above assume no ambient D Package: airflow. Thermal Resistance-Junction to Case, θJC ... 50°C/W Thermal Resistance-Junction to Ambient, θJA ... 120°C/W L Package: Thermal Resistance-Junction to Case, θJC ... .. 35°C/W Thermal Resistance-Junction to Ambient, θJA ... 120°C/W Recommended Operating Conditions (Note 2) Input Voltage (+V ) ... 8V to 40V Oscillator Frequency Range ... 100Hz to 300kHz IN Collector Voltage ... 0V to 40V Oscillator Timing Resistor (R ) .. 1.8kΩ to 100kΩ T Error Amp Common Mode Range ..1.8V to 3.4V Oscillator Timing Capacitor (C ) .. 1nF to 1.0µF T Current Limit Sense Common Mode Range .. -0.3V to 0.3V Operating Ambient Temperature Range Output Current (each transistor) ... 0 to 50mA SG1524 ... -55°C to 125°C Reference Load Current ... 0 to 20mA SG2524 ... -25°C to 85°C Oscillator Charging Current .. 30µA to 2mA SG3524 ... 0°C to 70°C Note 2: Range over which the device is functional and parameter limits are guaranteed. Electrical Characteristics (Unless otherwise specified, these specifications apply over the operating ambient temperatures for SG1524 with -55°C ≤ T ≤ 125°C, SG2524 with A -25°C ≤ T ≤ 85°C, SG3524 with 0°C ≤ T ≤ 70°C, and +V = 20V. Low duty cycle pulse testing techniques are used which maintains junction and A A IN case temperatures equal to the ambient temperature.)
SG1524/SG2524 SG3524 Parameter Test Conditions Units Min. Typ. Max. Min. Typ. Max. Reference Section
(Note 3) Output Voltage T = 25°C 4.80 5.00 5.20 4.60 5.00 5.40 V J Line Regulation V = 8V to 40V 20 30 mV IN Load Regulation I = 0 to 20mA 50 50 mV L Temperature Stability (Note 7) Total Over Operating Temperature Range 50 50 mV Output Voltage Range (Note 7) Over Line, Load and Temperature 4.80 5.20 4.60 5.40 V Short Circuit Current V = 0V 25 50 150 25 50 150 mA REF Note 3. I = 0mA L 2 Document Outline Regulating Pulse Width Modulator Description Features High Reliability Features Block Diagram Absolute Maximum Ratings Thermal Data Recommended Operating Conditions Electrical Characteristics Electrical Characteristics (Continued) Application Notes Application Notes (Continued) Connection Diagrams and Ordering Information Package Outline Dimensions Package Outline Dimensions (continued)
