Datasheet PMEG3010EH, PMEG3010EJ, PMEG3010ET (Nexperia)
| Fabricante | Nexperia |
| Descripción | 1 A very low VF MEGA Schottky barrier rectifiers |
| Páginas / Página | 11 / 1 — PMEG3010EH; PMEG3010EJ; PMEG3010ET 1 A very low VF MEGA Schottky barrier … |
| Revisión | 28082018 |
| Formato / tamaño de archivo | PDF / 670 Kb |
| Idioma del documento | Inglés |
PMEG3010EH; PMEG3010EJ; PMEG3010ET 1 A very low VF MEGA Schottky barrier rectifiers Rev. 04 — 20 March 2007
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 1

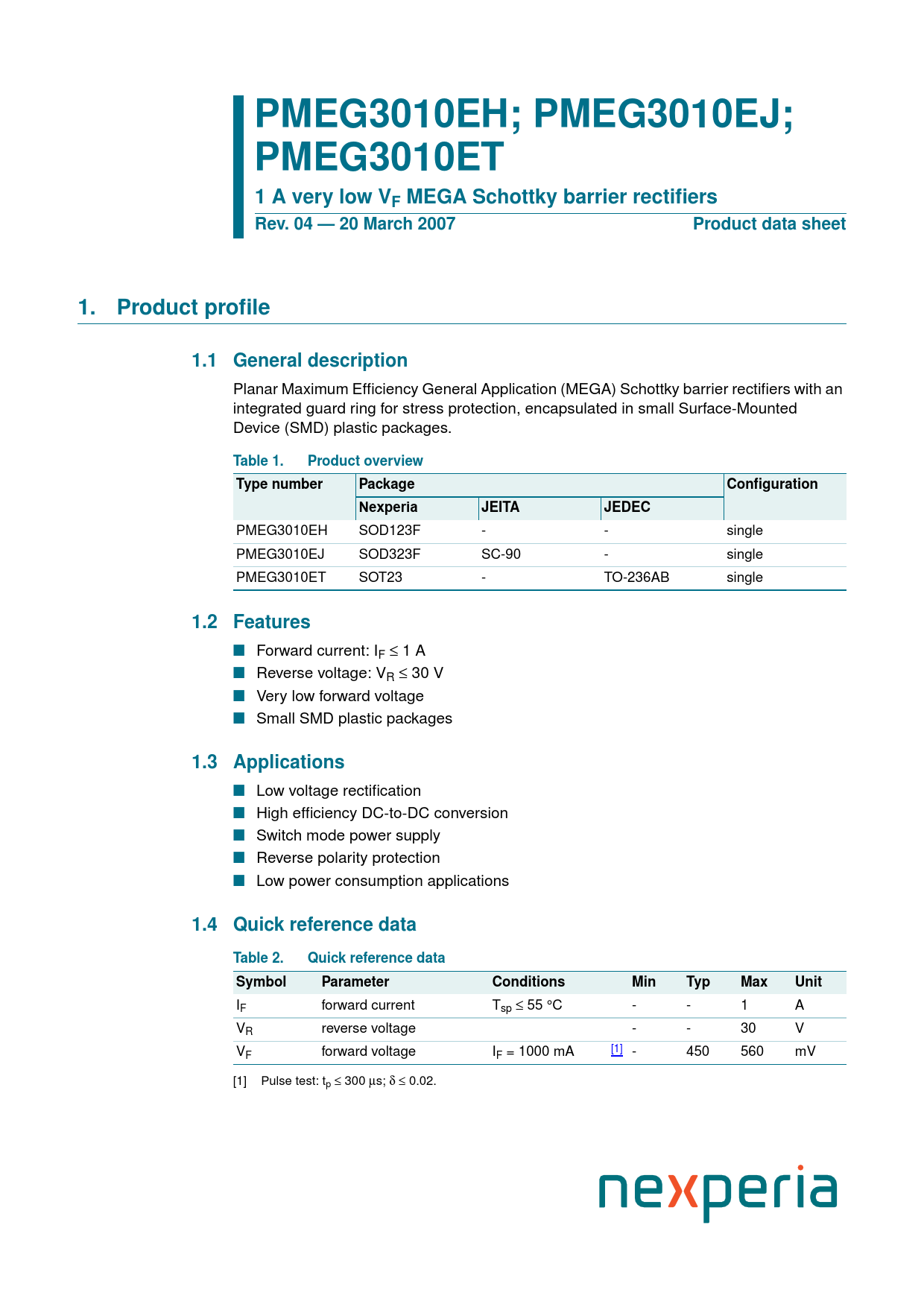

PMEG3010EH; PMEG3010EJ; PMEG3010ET 1 A very low VF MEGA Schottky barrier rectifiers Rev. 04 — 20 March 2007 Product data sheet 1. Product profile 1.1 General description
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small Surface-Mounted Device (SMD) plastic packages.
Table 1. Product overview Type number Package Configuration Nexperia JEITA JEDEC
PMEG3010EH SOD123F - - single PMEG3010EJ SOD323F SC-90 - single PMEG3010ET SOT23 - TO-236AB single
1.2 Features
n Forward current: IF ≤ 1 A n Reverse voltage: VR ≤ 30 V n Very low forward voltage n Small SMD plastic packages
1.3 Applications
n Low voltage rectification n High efficiency DC-to-DC conversion n Switch mode power supply n Reverse polarity protection n Low power consumption applications
1.4 Quick reference data Table 2. Quick reference data Symbol Parameter Conditions Min Typ Max Unit
IF forward current Tsp ≤ 55 °C - - 1 A VR reverse voltage - - 30 V VF forward voltage IF = 1000 mA [1] - 450 560 mV [1] Pulse test: tp ≤ 300 µs; δ ≤ 0.02. Document Outline 1. Product profile 1.1 General description 1.2 Features 1.3 Applications 1.4 Quick reference data 2. Pinning information 3. Ordering information 4. Marking 5. Limiting values 6. Thermal characteristics 7. Characteristics 8. Test information 9. Package outline 10. Packing information 11. Soldering 12. Revision history 13. Legal information 13.1 Data sheet status 13.2 Definitions 13.3 Disclaimers 13.4 Trademarks 14. Contact information 15. Contents
