Datasheet BGS12WN6 (Infineon) - 5

FabricanteInfineon
DescripciónWideband SPDT diversity switch with fast switching speed
Páginas / Página16 / 5 — BGS12WN6. Wideband SPDT diversity switch with fast switching speed. …
Revisión02_05
Formato / tamaño de archivoPDF / 1.4 Mb
Idioma del documentoInglés

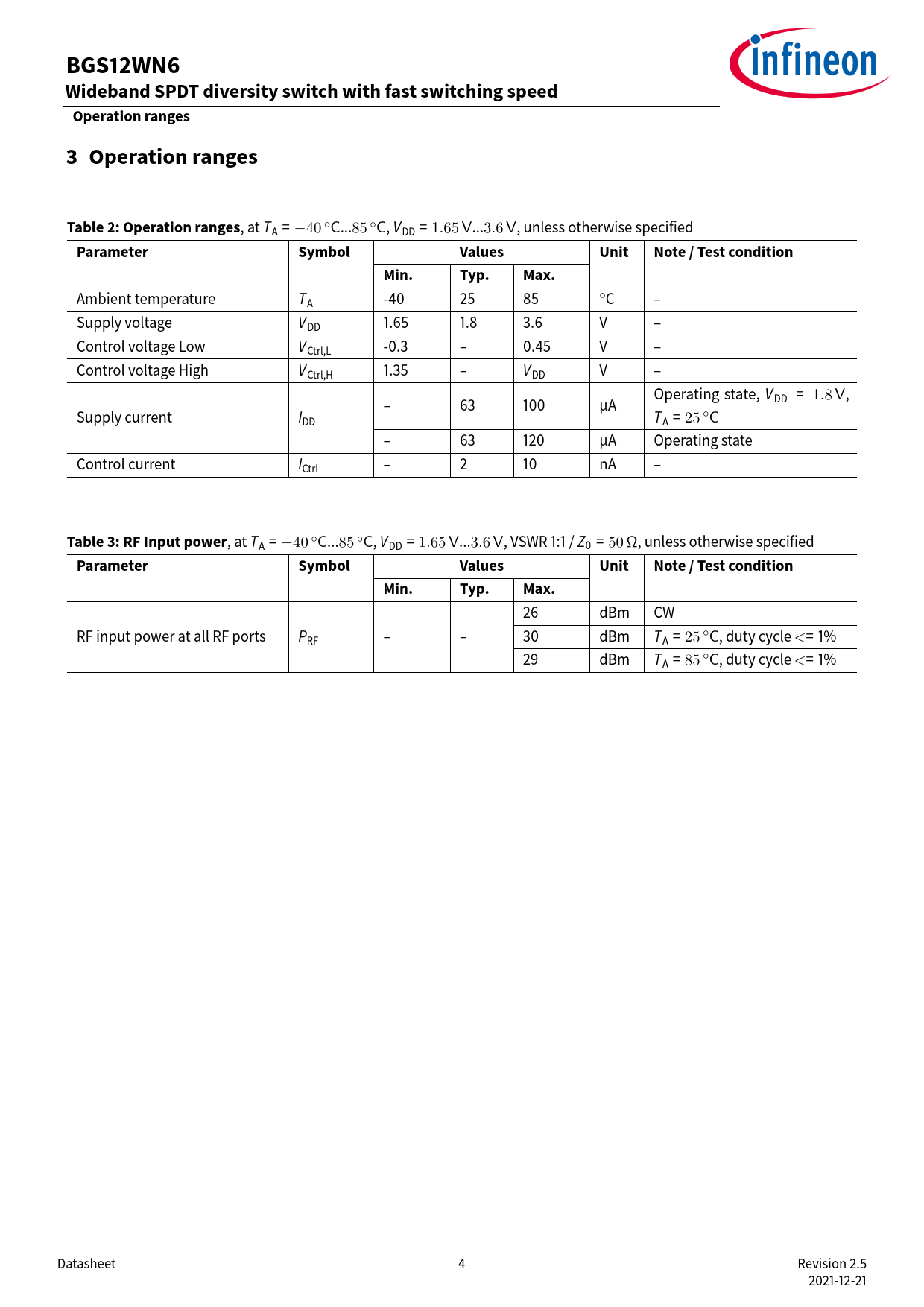

BGS12WN6. Wideband SPDT diversity switch with fast switching speed. Operation ranges. 3 Operation ranges

BGS12WN6 Wideband SPDT diversity switch with fast switching speed Operation ranges 3 Operation ranges

Línea de modelo para esta hoja de datos

Versión de texto del documento

BGS12WN6 Wideband SPDT diversity switch with fast switching speed Operation ranges 3 Operation ranges Table 2: Operation ranges
, at TA = −40 ◦C...85 ◦C, VDD = 1.65 V...3.6 V, unless otherwise specified
Parameter Symbol Values Unit Note / Test condition Min. Typ. Max.
Ambient temperature TA -40 25 85 ◦C – Supply voltage VDD 1.65 1.8 3.6 V – Control voltage Low VCtrl,L -0.3 – 0.45 V – Control voltage High VCtrl,H 1.35 – VDD V – Operating state, V – 63 100 µA DD = 1.8 V, Supply current IDD TA = 25 ◦C – 63 120 µA Operating state Control current ICtrl – 2 10 nA –
Table 3: RF Input power
, at TA = −40 ◦C...85 ◦C, VDD = 1.65 V...3.6 V, VSWR 1:1 / Z0 = 50 Ω, unless otherwise specified
Parameter Symbol Values Unit Note / Test condition Min. Typ. Max.
26 dBm CW RF input power at all RF ports PRF – – 30 dBm TA = 25 ◦C, duty cycle <= 1% 29 dBm TA = 85 ◦C, duty cycle <= 1% Datasheet 4 Revision 2.5 2021-12-21 Document Outline Titlepage 1 Features 2 Absolute maximum ratings 3 Operation ranges 4 RF characteristics 5 Application information 6 Package information
