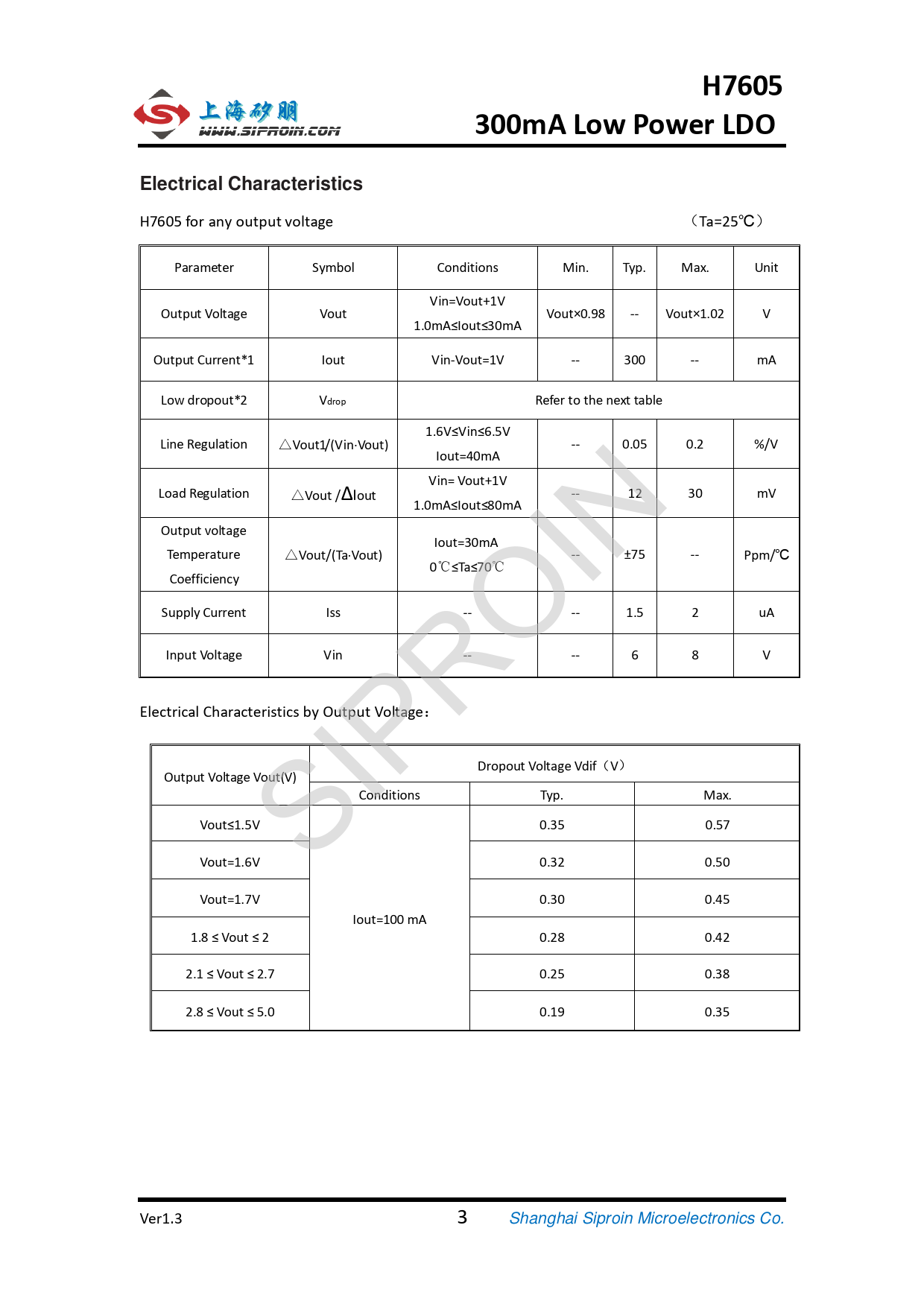

H7605. 300mA Low Power LDO. Electrical Characteristics
Línea de modelo para esta hoja de datos
Versión de texto del documento
H7605 300mA Low Power LDO Electrical Characteristics
H7605 for any output voltage （Ta=25℃） Parameter Symbol Conditions Min. Typ. Max. Unit Vin=Vout+1V Output Voltage Vout Vout×0.98 -- Vout×1.02 V 1.0mA≤Iout≤30mA Output Current*1 Iout Vin-Vout=1V -- 300 -- mA Low dropout*2 Vdrop Refer to the next table 1.6V≤Vin≤6.5V Line Regulation △Vout1/(Vin·Vout) -- 0.05 0.2 %/V Iout=40mA Vin= Vout+1V Load Regulation △Vout /ΔIout -- 12 30 mV 1.0mA≤Iout≤80mA Output voltage Iout=30mA Temperature △Vout/(Ta·Vout) -- ±75 -- Ppm/℃ 0℃≤Ta≤70℃ Coefficiency Supply Current Iss -- -- 1.5 2 uA Input Voltage Vin -- -- 6 8 V Electrical Characteristics by Output Voltage： Dropout Voltage Vdif（V） Output Voltage Vout(V) Conditions Typ. Max. Vout≤1.5V 0.35 0.57 SIPROIN Vout=1.6V 0.32 0.50 Vout=1.7V 0.30 0.45 Iout=100 mA 1.8 ≤ Vout ≤ 2 0.28 0.42 2.1 ≤ Vout ≤ 2.7 0.25 0.38 2.8 ≤ Vout ≤ 5.0 0.19 0.35 Ver1.3 3 Shanghai Siproin Microelectronics Co.
