Datasheet MSS7341 (Coilcraft)

FabricanteCoilcraft
DescripciónShielded Power Inductors
Páginas / Página2 / 1 — Shielded Power Inductors – MSS7341. Designer’s Kit C385. Core material. …
Formato / tamaño de archivoPDF / 198 Kb
Idioma del documentoInglés

Shielded Power Inductors – MSS7341. Designer’s Kit C385. Core material. Core and winding loss. Terminations. Weight:

Datasheet MSS7341 Coilcraft

Línea de modelo para esta hoja de datos

Versión de texto del documento

Web Sample Tools & Support page & buy software & FAQ Document 383-1

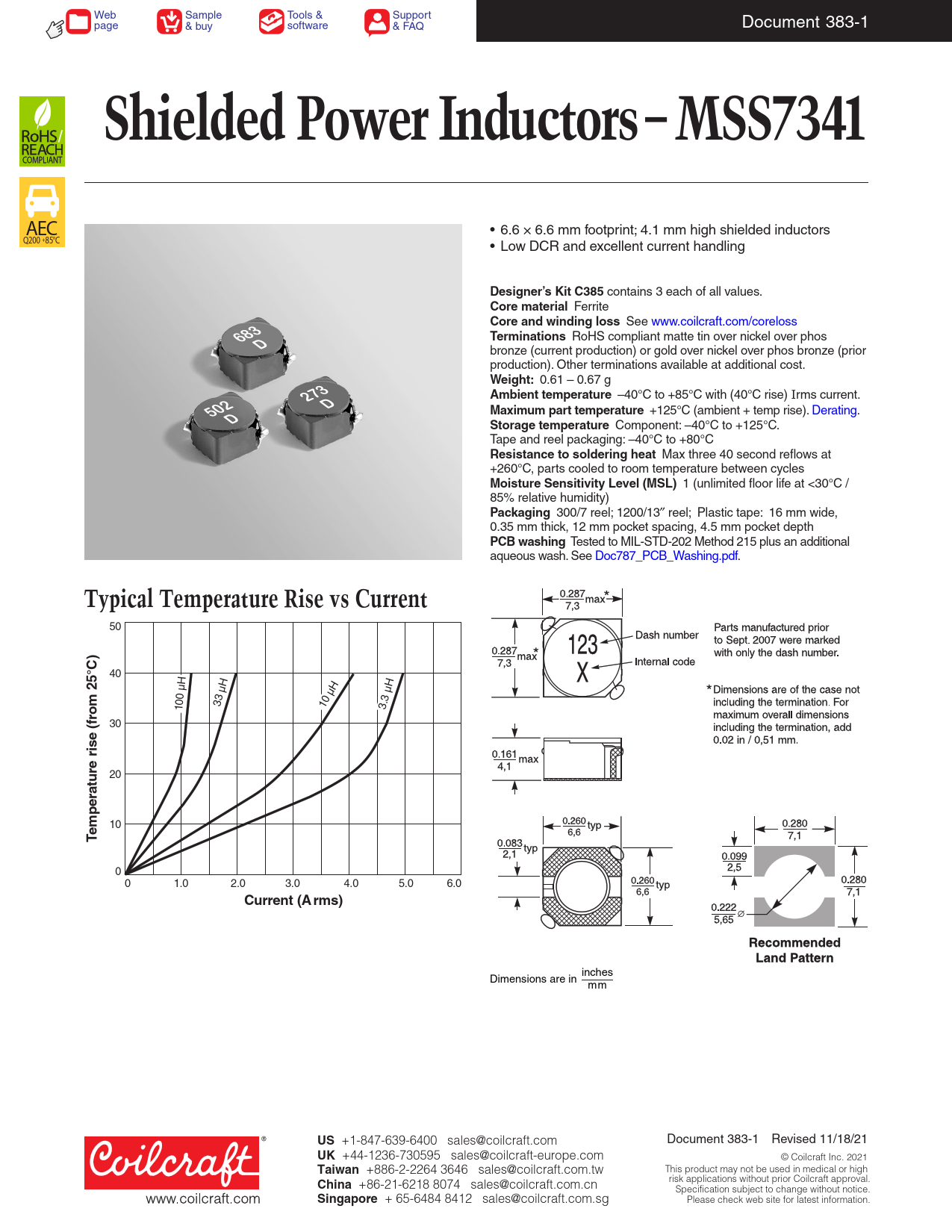

Shielded Power Inductors – MSS7341
AEC • 6.6 × 6.6 mm footprint; 4.1 mm high shielded inductors Q200 85 + °C • Low DCR and excellent current handling
Designer’s Kit C385
contains 3 each of all values.
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over phos bronze (current production) or gold over nickel over phos bronze (prior production). Other terminations available at additional cost.
Weight:
0.61 – 0.67 g
Ambient temperature
–40°C to +85°C with (40°C rise) Irms current.
Maximum part temperature
+125°C (ambient + temp rise). Derating.
Storage temperature
Component: –40°C to +125°C. Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C / 85% relative humidity)
Packaging
300/7 reel; 1200/13″ reel; Plastic tape: 16 mm wide, 0.35 mm thick, 12 mm pocket spacing, 4.5 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
Typical Temperature Rise vs Current
50
)
40
5°C
3.3 µH 33 µH 10 µH 100 µH 30
ise (from 2
20
perature r
10
Tem
0 0 1.0 2.0 3.0 4.0 5.0 6.0
Current (Arms)
inches Dimensions are in mm
US
+1-847-639-6400 sales@coilcraft.com Document 383-1 Revised 11/18/21
UK
+44-1236-730595 sales@coilcraft-europe.com © Coilcraft Inc. 2021
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw This product may not be used in medical or high
China
+86-21-6218 8074 sales@coilcraft.com.cn risk applications without prior Coilcraft approval. Specification subject to change without notice.
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg Please check web site for latest information.
