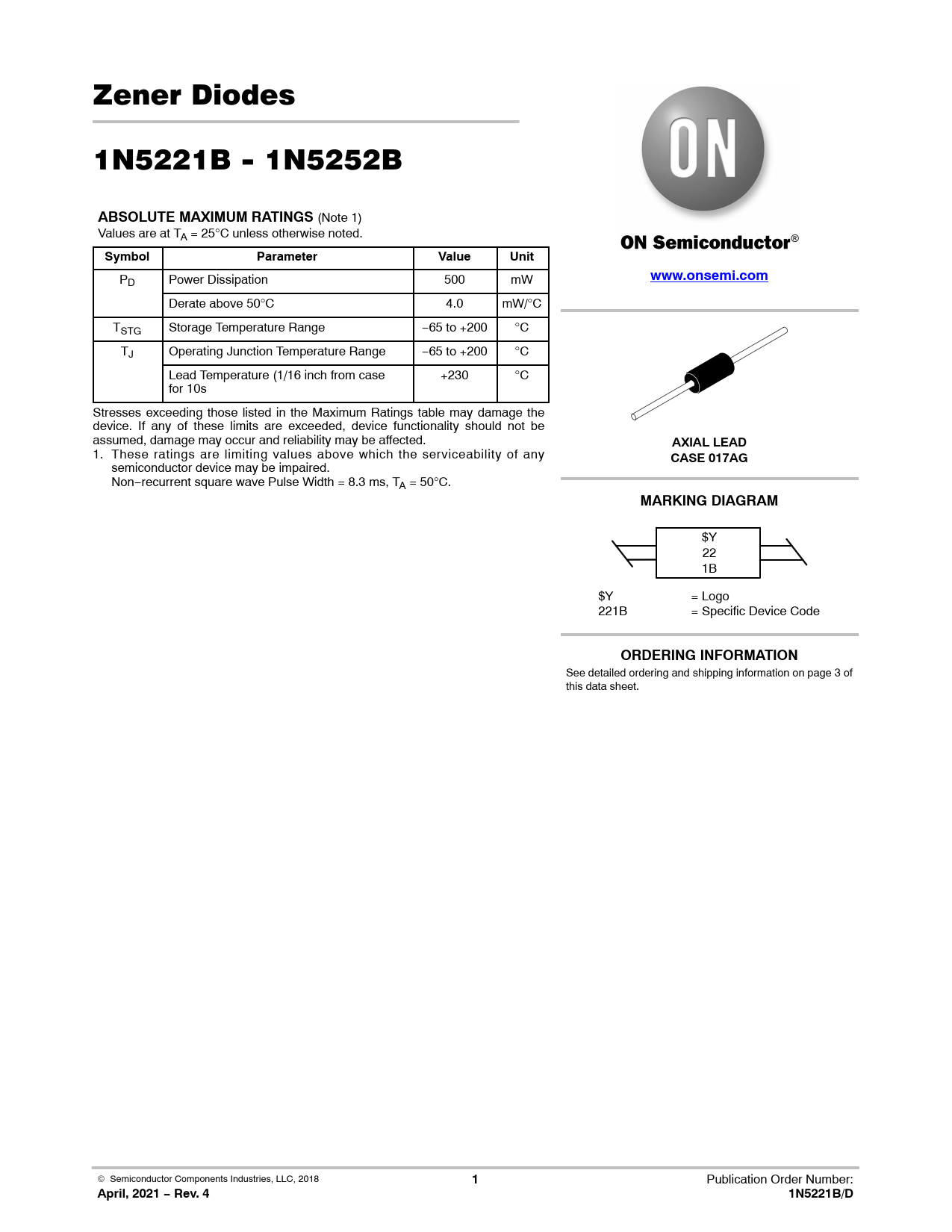

link to page 1 link to page 3 Zener Diodes 1N5221B - 1N5252B
ABSOLUTE MAXIMUM RATINGS
(Note 1) Values are at TA = 25°C unless otherwise noted.
Symbol Parameter Value Unit
P
www.onsemi.com
D Power Dissipation 500 mW Derate above 50°C 4.0 mW/°C TSTG Storage Temperature Range −65 to +200 °C TJ Operating Junction Temperature Range −65 to +200 °C Lead Temperature (1/16 inch from case +230 °C for 10s Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
AXIAL LEAD
1. These ratings are limiting values above which the serviceability of any
CASE 017AG
semiconductor device may be impaired. Non−recurrent square wave Pulse Width = 8.3 ms, TA = 50°C.
MARKING DIAGRAM
$Y 22 1B $Y = Logo 221B = Specific Device Code
ORDERING INFORMATION
See detailed ordering and shipping information on page 3 of this data sheet. © Semiconductor Components Industries, LLC, 2018
1
Publication Order Number:
April, 2021 − Rev. 4 1N5221B/D
