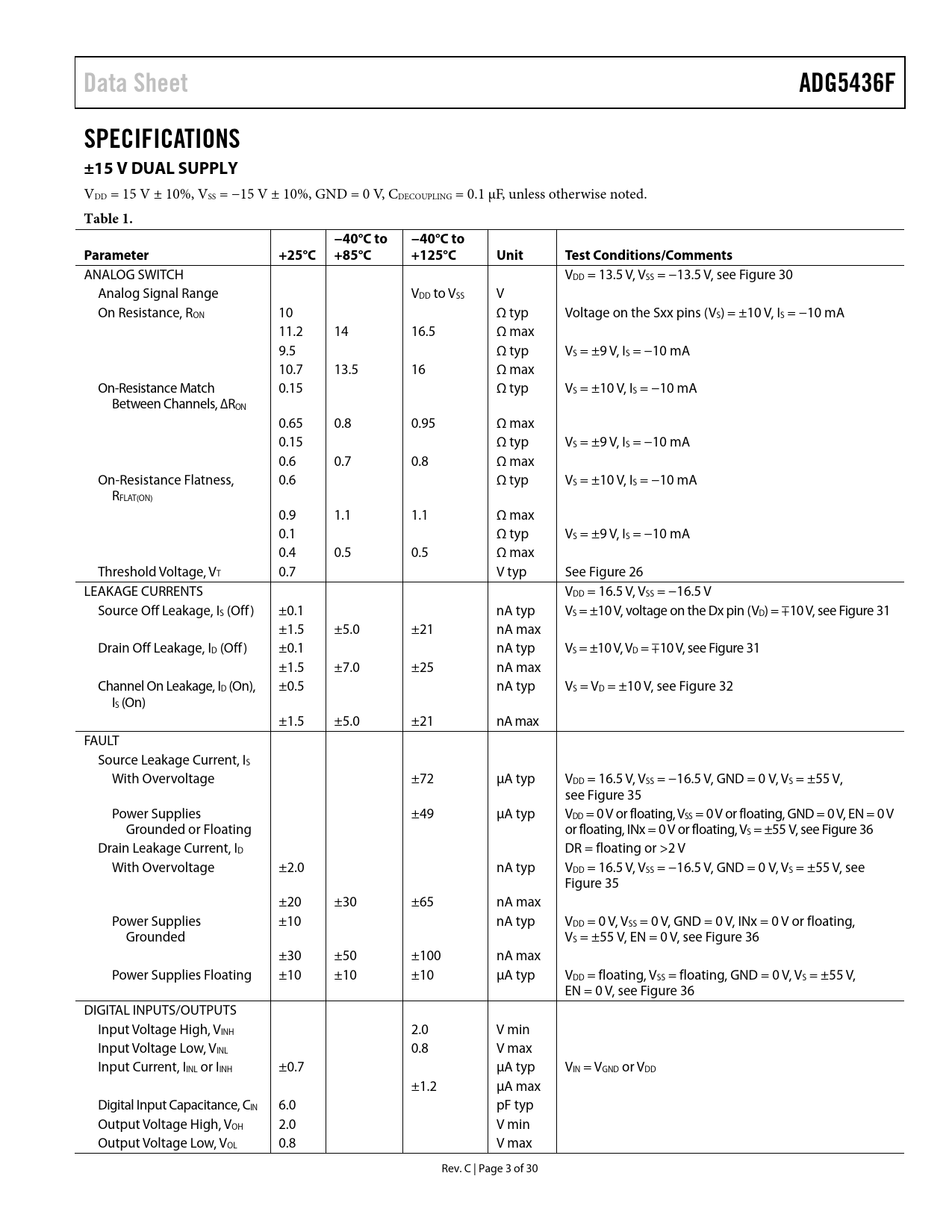

Data Sheet ADG5436F SPECIFICATIONS ±15 V DUAL SUPPLY
VDD = 15 V ± 10%, VSS = −15 V ± 10%, GND = 0 V, CDECOUPLING = 0.1 µF, unless otherwise noted.
Table 1. −40°C to −40°C to Parameter +25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH VDD = 13.5 V, VSS = −13.5 V, see Figure 30 Analog Signal Range VDD to VSS V On Resistance, RON 10 Ω typ Voltage on the Sxx pins (VS) = ±10 V, IS = −10 mA 11.2 14 16.5 Ω max 9.5 Ω typ VS = ±9 V, IS = −10 mA 10.7 13.5 16 Ω max On-Resistance Match 0.15 Ω typ VS = ±10 V, IS = −10 mA Between Channels, ∆RON 0.65 0.8 0.95 Ω max 0.15 Ω typ VS = ±9 V, IS = −10 mA 0.6 0.7 0.8 Ω max On-Resistance Flatness, 0.6 Ω typ VS = ±10 V, IS = −10 mA RFLAT(ON) 0.9 1.1 1.1 Ω max 0.1 Ω typ VS = ±9 V, IS = −10 mA 0.4 0.5 0.5 Ω max Threshold Voltage, VT 0.7 V typ See Figure 26 LEAKAGE CURRENTS VDD = 16.5 V, VSS = −16.5 V Source Off Leakage, IS (Off) ±0.1 nA typ VS = ±10 V, voltage on the Dx pin (VD) = ∓10 V, see Figure 31 ±1.5 ±5.0 ±21 nA max Drain Off Leakage, ID (Off) ±0.1 nA typ VS = ±10 V, VD = ∓10 V, see Figure 31 ±1.5 ±7.0 ±25 nA max Channel On Leakage, ID (On), ±0.5 nA typ VS = VD = ±10 V, see Figure 32 IS (On) ±1.5 ±5.0 ±21 nA max FAULT Source Leakage Current, IS With Overvoltage ±72 µA typ VDD = 16.5 V, VSS = −16.5 V, GND = 0 V, VS = ±55 V, see Figure 35 Power Supplies ±49 µA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = 0 V, EN = 0 V Grounded or Floating or floating, INx = 0 V or floating, VS = ±55 V, see Figure 36 Drain Leakage Current, ID DR = floating or >2 V With Overvoltage ±2.0 nA typ VDD = 16.5 V, VSS = −16.5 V, GND = 0 V, VS = ±55 V, see Figure 35 ±20 ±30 ±65 nA max Power Supplies ±10 nA typ VDD = 0 V, VSS = 0 V, GND = 0 V, INx = 0 V or floating, Grounded VS = ±55 V, EN = 0 V, see Figure 36 ±30 ±50 ±100 nA max Power Supplies Floating ±10 ±10 ±10 µA typ VDD = floating, VSS = floating, GND = 0 V, VS = ±55 V, EN = 0 V, see Figure 36 DIGITAL INPUTS/OUTPUTS Input Voltage High, VINH 2.0 V min Input Voltage Low, VINL 0.8 V max Input Current, IINL or IINH ±0.7 µA typ VIN = VGND or VDD ±1.2 µA max Digital Input Capacitance, CIN 6.0 pF typ Output Voltage High, VOH 2.0 V min Output Voltage Low, VOL 0.8 V max Rev. C | Page 3 of 30 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±15 V DUAL SUPPLY ±20 V DUAL SUPPLY 12 V SINGLE SUPPLY 36 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, Sxx OR Dx ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TRUTH TABLES FOR SWITCHES TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION SWITCH ARCHITECTURE ESD Performance Trench Isolation FAULT PROTECTION Power-On Protection Power-Off Protection Digital Input Protection Overvoltage Interrupt Flag APPLICATIONS INFORMATION POWER SUPPLY RAILS POWER SUPPLY SEQUENCING PROTECTION SIGNAL RANGE LOW IMPEDANCE CHANNEL PROTECTION POWER SUPPLY RECOMMENDATIONS HIGH VOLTAGE SURGE SUPPRESSION INTELLIGENT FAULT DETECTION LARGE VOLTAGE, HIGH FREQUENCY SIGNALS OUTLINE DIMENSIONS ORDERING GUIDE
