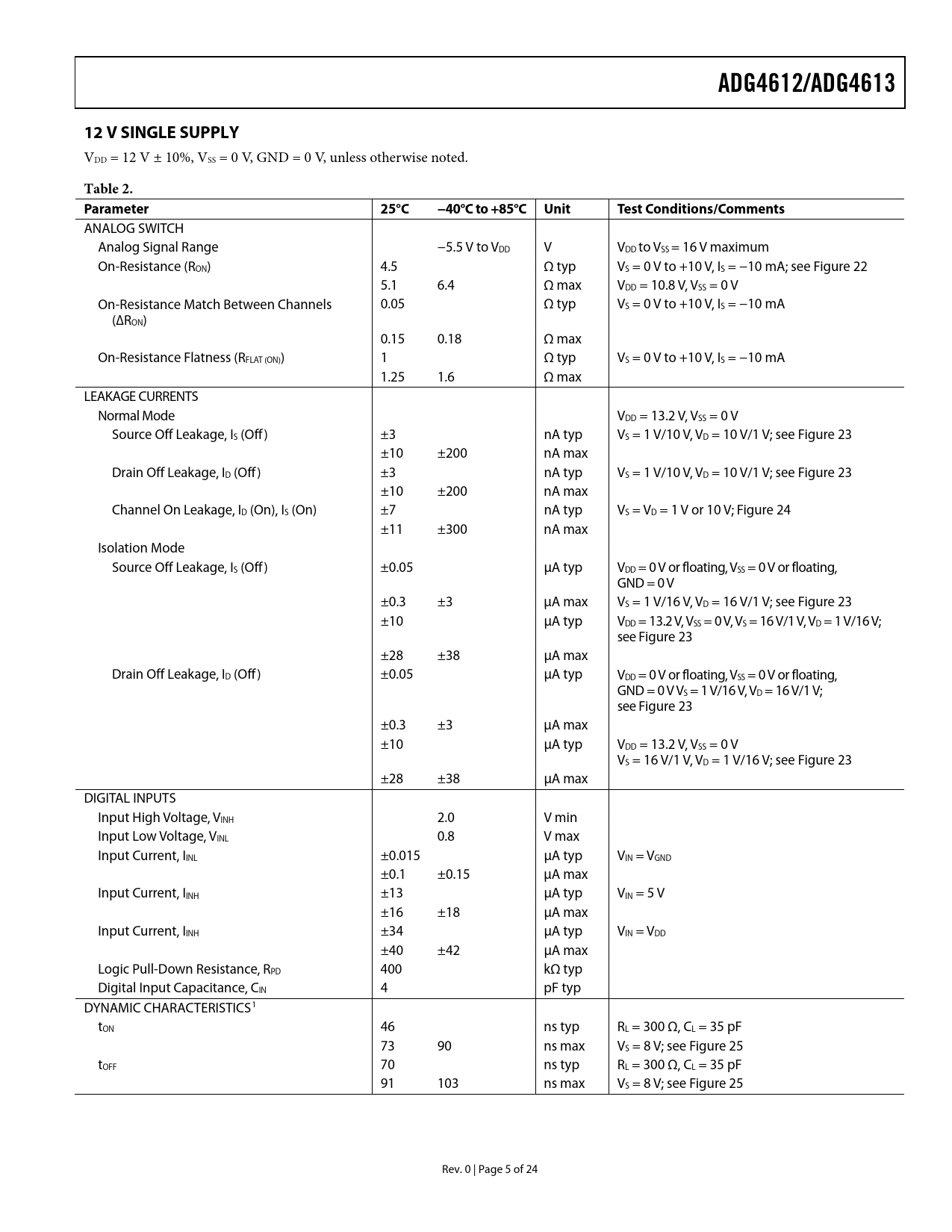

ADG4612/ADG4613 12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. Parameter 25°C −40°C to +85°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range −5.5 V to VDD V VDD to VSS = 16 V maximum On-Resistance (RON) 4.5 Ω typ VS = 0 V to +10 V, IS = −10 mA; see Figure 22 5.1 6.4 Ω max VDD = 10.8 V, VSS = 0 V On-Resistance Match Between Channels 0.05 Ω typ VS = 0 V to +10 V, IS = −10 mA (∆RON) 0.15 0.18 Ω max On-Resistance Flatness (RFLAT (ON)) 1 Ω typ VS = 0 V to +10 V, IS = −10 mA 1.25 1.6 Ω max LEAKAGE CURRENTS Normal Mode VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off ) ±3 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 23 ±10 ±200 nA max Drain Off Leakage, ID (Off ) ±3 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 23 ±10 ±200 nA max Channel On Leakage, ID (On), IS (On) ±7 nA typ VS = VD = 1 V or 10 V; Figure 24 ±11 ±300 nA max Isolation Mode Source Off Leakage, IS (Off ) ±0.05 μA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = 0 V ±0.3 ±3 μA max VS = 1 V/16 V, VD = 16 V/1 V; see Figure 23 ±10 μA typ VDD = 13.2 V, VSS = 0 V, VS = 16 V/1 V, VD = 1 V/16 V; see Figure 23 ±28 ±38 μA max Drain Off Leakage, ID (Off ) ±0.05 μA typ VDD = 0 V or floating, VSS = 0 V or floating, GND = 0 V VS = 1 V/16 V, VD = 16 V/1 V; see Figure 23 ±0.3 ±3 μA max ±10 μA typ VDD = 13.2 V, VSS = 0 V VS = 16 V/1 V, VD = 1 V/16 V; see Figure 23 ±28 ±38 μA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL ±0.015 μA typ VIN = VGND ±0.1 ±0.15 μA max Input Current, IINH ±13 μA typ VIN = 5 V ±16 ±18 μA max Input Current, IINH ±34 μA typ VIN = VDD ±40 ±42 μA max Logic Pull-Down Resistance, RPD 400 kΩ typ Digital Input Capacitance, CIN 4 pF typ DYNAMIC CHARACTERISTICS1 tON 46 ns typ RL = 300 Ω, CL = 35 pF 73 90 ns max VS = 8 V; see Figure 25 tOFF 70 ns typ RL = 300 Ω, CL = 35 pF 91 103 ns max VS = 8 V; see Figure 25 Rev. 0 | Page 5 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS SPECIFICATIONS 5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, SX OR DX POWER SUPPLY OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY THEORY OF OPERATION Normal Mode Isolation Mode Positive Fault Condition Negative Fault Condition; Negative Signal Handling APPLICATIONS INFORMATION Power Supply Sequencing OUTLINE DIMENSIONS ORDERING GUIDE
