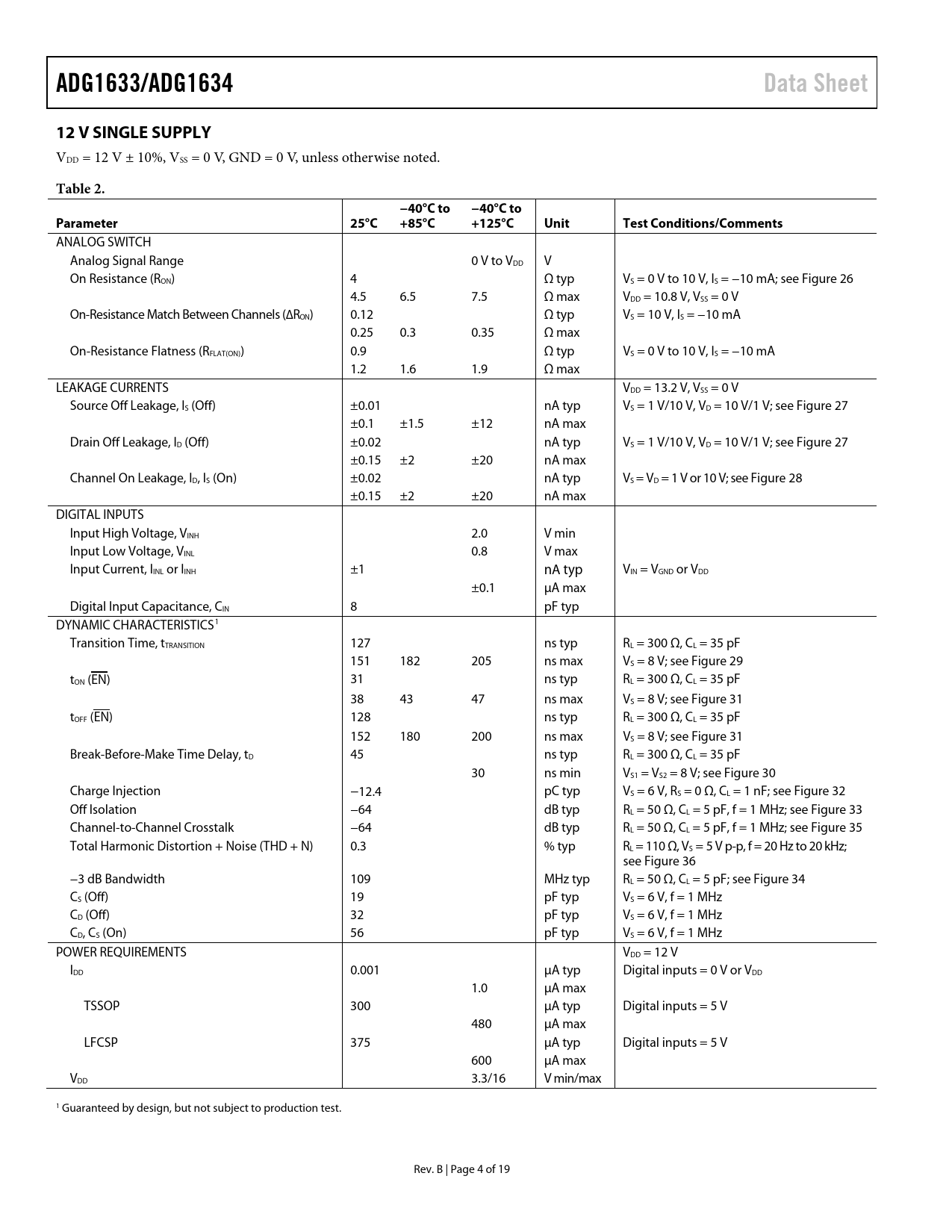

ADG1633/ADG1634 Data Sheet 12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 2. −40°C to −40°C to Parameter 25°C +85°C +125°C Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 V to VDD V On Resistance (RON) 4 Ω typ VS = 0 V to 10 V, IS = −10 mA; see Figure 26 4.5 6.5 7.5 Ω max VDD = 10.8 V, VSS = 0 V On-Resistance Match Between Channels (∆RON) 0.12 Ω typ VS = 10 V, IS = −10 mA 0.25 0.3 0.35 Ω max On-Resistance Flatness (RFLAT(ON)) 0.9 Ω typ VS = 0 V to 10 V, IS = −10 mA 1.2 1.6 1.9 Ω max LEAKAGE CURRENTS VDD = 13.2 V, VSS = 0 V Source Off Leakage, IS (Off) ±0.01 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 27 ±0.1 ±1.5 ±12 nA max Drain Off Leakage, ID (Off) ±0.02 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 27 ±0.15 ±2 ±20 nA max Channel On Leakage, ID, IS (On) ±0.02 nA typ VS = VD = 1 V or 10 V; see Figure 28 ±0.15 ±2 ±20 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current, IINL or IINH ±1 nA typ VIN = VGND or VDD ±0.1 µA max Digital Input Capacitance, CIN 8 pF typ DYNAMIC CHARACTERISTICS1 Transition Time, tTRANSITION 127 ns typ RL = 300 Ω, CL = 35 pF 151 182 205 ns max VS = 8 V; see Figure 29 tON (EN) 31 ns typ RL = 300 Ω, CL = 35 pF 38 43 47 ns max VS = 8 V; see Figure 31 tOFF (EN) 128 ns typ RL = 300 Ω, CL = 35 pF 152 180 200 ns max VS = 8 V; see Figure 31 Break-Before-Make Time Delay, tD 45 ns typ RL = 300 Ω, CL = 35 pF 30 ns min VS1 = VS2 = 8 V; see Figure 30 Charge Injection −12.4 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 32 Off Isolation −64 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 33 Channel-to-Channel Crosstalk −64 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 35 Total Harmonic Distortion + Noise (THD + N) 0.3 % typ RL = 110 Ω, VS = 5 V p-p, f = 20 Hz to 20 kHz; see Figure 36 −3 dB Bandwidth 109 MHz typ RL = 50 Ω, CL = 5 pF; see Figure 34 CS (Off) 19 pF typ VS = 6 V, f = 1 MHz CD (Off) 32 pF typ VS = 6 V, f = 1 MHz CD, CS (On) 56 pF typ VS = 6 V, f = 1 MHz POWER REQUIREMENTS VDD = 12 V IDD 0.001 µA typ Digital inputs = 0 V or VDD 1.0 µA max TSSOP 300 µA typ Digital inputs = 5 V 480 µA max LFCSP 375 µA typ Digital inputs = 5 V 600 µA max VDD 3.3/16 V min/max 1 Guaranteed by design, but not subject to production test. Rev. B | Page 4 of 19 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS TERMINOLOGY OUTLINE DIMENSIONS ORDERING GUIDE
