Data Sheet. ADG1634-KGD. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. S1A. DNC. S4A. DNC DNC. S1B. S4B. VSS. VDD. GND. S2B. S3B. NOTES
Línea de modelo para esta hoja de datos
Versión de texto del documento
Data Sheet ADG1634-KGD PIN CONFIGURATION AND FUNCTION DESCRIPTIONS 1 4 S1A IN DNC EN IN DNC DNC S4A S4A S1A DNC DNC DNC D1 D4 D1 D4 S1B S4B ADG1634-KGD S1B S4B VSS VDD GND DNC DNC S2B S3B S2B S3B A A 2 3 A A D2 D2 D3 D3 S2 S2 IN IN S3 S3 DNC DNC
2 00
NOTES
8-
1. DNC = DO NOT CONNECT. DO NOT CONNECT TO THIS PAD.

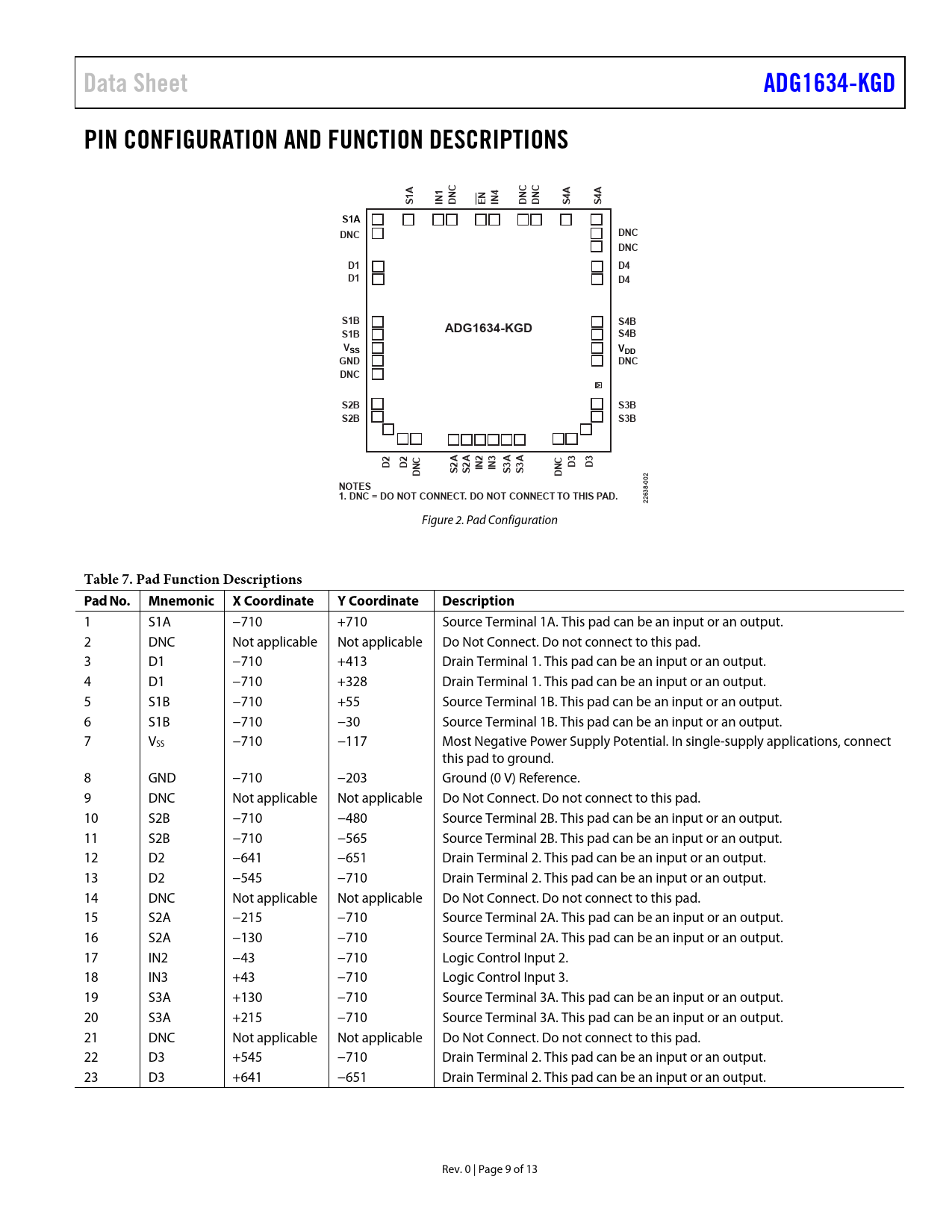

2263 Figure 2. Pad Configuration
Table 7. Pad Function Descriptions Pad No. Mnemonic X Coordinate Y Coordinate Description
1 S1A −710 +710 Source Terminal 1A. This pad can be an input or an output. 2 DNC Not applicable Not applicable Do Not Connect. Do not connect to this pad. 3 D1 −710 +413 Drain Terminal 1. This pad can be an input or an output. 4 D1 −710 +328 Drain Terminal 1. This pad can be an input or an output. 5 S1B −710 +55 Source Terminal 1B. This pad can be an input or an output. 6 S1B −710 −30 Source Terminal 1B. This pad can be an input or an output. 7 VSS −710 −117 Most Negative Power Supply Potential. In single-supply applications, connect this pad to ground. 8 GND −710 −203 Ground (0 V) Reference. 9 DNC Not applicable Not applicable Do Not Connect. Do not connect to this pad. 10 S2B −710 −480 Source Terminal 2B. This pad can be an input or an output. 11 S2B −710 −565 Source Terminal 2B. This pad can be an input or an output. 12 D2 −641 −651 Drain Terminal 2. This pad can be an input or an output. 13 D2 −545 −710 Drain Terminal 2. This pad can be an input or an output. 14 DNC Not applicable Not applicable Do Not Connect. Do not connect to this pad. 15 S2A −215 −710 Source Terminal 2A. This pad can be an input or an output. 16 S2A −130 −710 Source Terminal 2A. This pad can be an input or an output. 17 IN2 −43 −710 Logic Control Input 2. 18 IN3 +43 −710 Logic Control Input 3. 19 S3A +130 −710 Source Terminal 3A. This pad can be an input or an output. 20 S3A +215 −710 Source Terminal 3A. This pad can be an input or an output. 21 DNC Not applicable Not applicable Do Not Connect. Do not connect to this pad. 22 D3 +545 −710 Drain Terminal 2. This pad can be an input or an output. 23 D3 +641 −651 Drain Terminal 2. This pad can be an input or an output. Rev. 0 | Page 9 of 13 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V SINGLE SUPPLY 3.3 V SINGLE SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TEST CIRCUITS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
