Data Sheet. ADG1408/ADG1409. 12 V SINGLE SUPPLY. Table 3. −40°C to. Parameter +25°C. +85°C. +125°C1 Unit. Test. Conditions/Comments

Data Sheet ADG1408/ADG1409 12 V SINGLE SUPPLY Table 3 −40°C to Parameter +25°C +85°C +125°C1 Unit Test Conditions/Comments

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 17 link to page 17 link to page 17 link to page 17 link to page 17 link to page 17 link to page 17 link to page 17 link to page 18 link to page 18 link to page 18 link to page 18 link to page 18 link to page 6 link to page 6

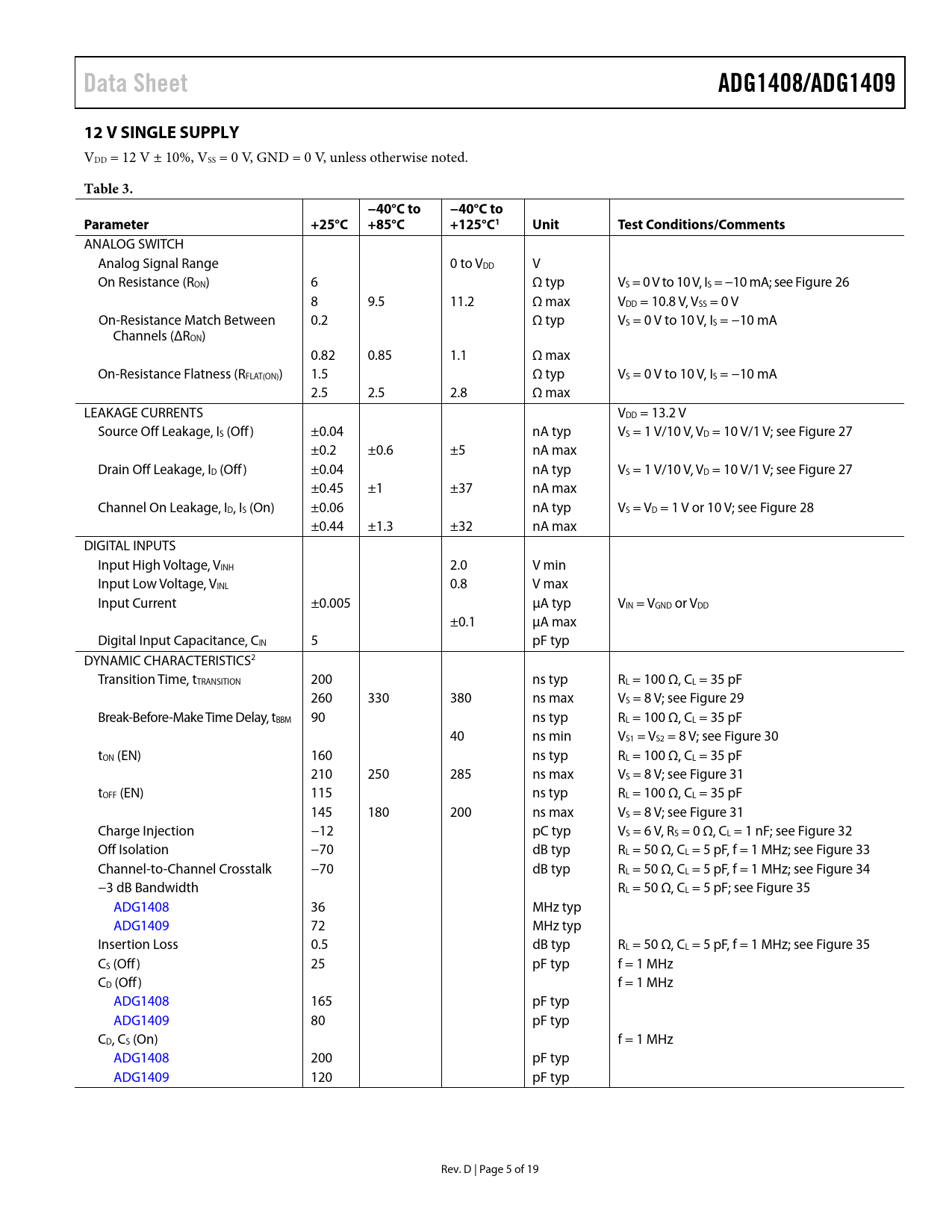

Data Sheet ADG1408/ADG1409 12 V SINGLE SUPPLY
VDD = 12 V ± 10%, VSS = 0 V, GND = 0 V, unless otherwise noted.
Table 3. −40°C to −40°C to Parameter +25°C +85°C +125°C1 Unit Test Conditions/Comments
ANALOG SWITCH Analog Signal Range 0 to VDD V On Resistance (RON) 6 Ω typ VS = 0 V to 10 V, IS = −10 mA; see Figure 26 8 9.5 11.2 Ω max VDD = 10.8 V, VSS = 0 V On-Resistance Match Between 0.2 Ω typ VS = 0 V to 10 V, IS = −10 mA Channels (ΔRON) 0.82 0.85 1.1 Ω max On-Resistance Flatness (RFLAT(ON)) 1.5 Ω typ VS = 0 V to 10 V, IS = −10 mA 2.5 2.5 2.8 Ω max LEAKAGE CURRENTS VDD = 13.2 V Source Off Leakage, IS (Off ) ±0.04 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 27 ±0.2 ±0.6 ±5 nA max Drain Off Leakage, ID (Off ) ±0.04 nA typ VS = 1 V/10 V, VD = 10 V/1 V; see Figure 27 ±0.45 ±1 ±37 nA max Channel On Leakage, ID, IS (On) ±0.06 nA typ VS = VD = 1 V or 10 V; see Figure 28 ±0.44 ±1.3 ±32 nA max DIGITAL INPUTS Input High Voltage, VINH 2.0 V min Input Low Voltage, VINL 0.8 V max Input Current ±0.005 μA typ VIN = VGND or VDD ±0.1 μA max Digital Input Capacitance, CIN 5 pF typ DYNAMIC CHARACTERISTICS2 Transition Time, tTRANSITION 200 ns typ RL = 100 Ω, CL = 35 pF 260 330 380 ns max VS = 8 V; see Figure 29 Break-Before-Make Time Delay, tBBM 90 ns typ RL = 100 Ω, CL = 35 pF 40 ns min VS1 = VS2 = 8 V; see Figure 30 tON (EN) 160 ns typ RL = 100 Ω, CL = 35 pF 210 250 285 ns max VS = 8 V; see Figure 31 tOFF (EN) 115 ns typ RL = 100 Ω, CL = 35 pF 145 180 200 ns max VS = 8 V; see Figure 31 Charge Injection −12 pC typ VS = 6 V, RS = 0 Ω, CL = 1 nF; see Figure 32 Off Isolation −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 33 Channel-to-Channel Crosstalk −70 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 34 −3 dB Bandwidth RL = 50 Ω, CL = 5 pF; see Figure 35 ADG1408 36 MHz typ ADG1409 72 MHz typ Insertion Loss 0.5 dB typ RL = 50 Ω, CL = 5 pF, f = 1 MHz; see Figure 35 CS (Off ) 25 pF typ f = 1 MHz CD (Off ) f = 1 MHz ADG1408 165 pF typ ADG1409 80 pF typ CD, CS (On) f = 1 MHz ADG1408 200 pF typ ADG1409 120 pF typ Rev. D | Page 5 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAMS GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS 15 V DUAL SUPPLY 12 V SINGLE SUPPLY 5 V DUAL SUPPLY CONTINUOUS CURRENT PER CHANNEL, S OR D ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY TEST CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
